In modern electronic design, FPC connector selection plays a key role in ensuring stable signal transmission and long-term reliability. The Kinghelm KH-CL0.5-H1.2-36PS-SMT is a 0.5mm pitch FPC connector designed for compact electronic assemblies, featuring 36 pins and a low board height of 1.2mm. This connector is well suited for applications such as display modules, control boards, and high-density flexible interconnections where space optimization is essential.

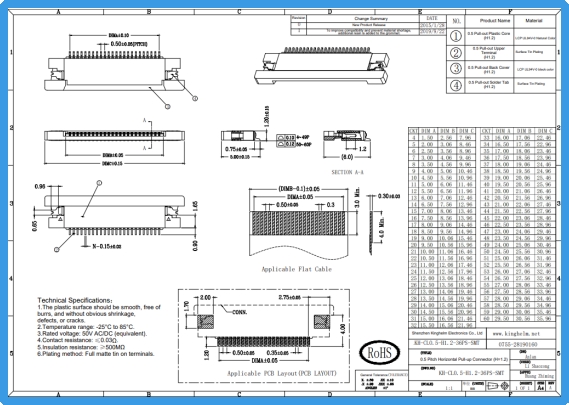

Kinghelm KH-CL0.5-H1.2-36PS-SMT Product Image

Compact Design with Horizontal Surface Mounting

The Kinghelm KH-CL0.5-H1.2-36PS-SMT adopts a horizontal SMD mounting structure, keeping the overall board height at just 1.2mm. This low-profile design helps engineers maximize vertical space efficiency, especially in slim electronic products. Horizontal mounting also aligns well with automated assembly processes, supporting stable placement and consistent soldering results during mass production. When evaluating FPC connector selection, board height is a critical factor to avoid component interference in compact layouts.

Drawer-Style Locking Structure for Secure Connections

This model features a drawer-style locking mechanism that distributes insertion and extraction forces evenly across the flexible cable. Compared with traditional straight-in connectors, this structure reduces stress concentration on the FPC tail and improves contact stability over repeated mating cycles. For applications involving frequent testing, maintenance, or module replacement, the locking design of the KH-CL0.5-H1.2-36PS-SMT offers practical advantages in both usability and durability.

0.5mm Pitch for High-Density Signal Routing

With a 0.5mm pitch and 36 contact positions, this FPC connector supports multi-channel signal transmission within a limited footprint. Typical 0.5mm pitch applications include display interfaces, camera module connections, and multi-function control boards. The fine pitch allows for dense routing while maintaining reliable electrical performance, making it suitable for modern compact electronic designs.

Top-Contact Configuration and FPC Compatibility

The top-contact design enables the flexible cable to be inserted from above, offering greater flexibility in FPC routing direction. The KH-CL0.5-H1.2-36PS-SMT supports FPC thickness up to 0.3mm, ensuring compatibility with commonly used flexible circuits. Proper matching between FPC thickness and connector specifications is essential during FPC connector selection to achieve smooth insertion and stable long-term contact.

Material selection and Operating Performance

The contacts are tin-plated to provide stable electrical conductivity and compatibility with standard soldering processes. Combined with SMD packaging, this connector integrates seamlessly into reflow soldering lines. With an operating temperature range of -25℃ to +85℃ and a rated voltage of 50V, the KH-CL0.5-H1.2-36PS-SMT is suitable for low-voltage signal and control circuit applications across various electronic devices.

Tape-and-Reel Packaging for Automated Production

The connector is supplied in tape-and-reel packaging, making it compatible with automated pick-and-place equipment. This packaging format improves assembly efficiency, reduces manual handling, and supports consistent production quality, especially in high-volume manufacturing environments.

Kinghelm KH-CL0.5-H1.2-36PS-SMT Specification

Application Overview

Thanks to its 0.5mm pitch, 36-pin configuration, low 1.2mm board height, and drawer-lock structure, the Kinghelm KH-CL0.5-H1.2-36PS-SMT provides reliable connections in compact spaces. Common 0.5mm pitch applications include display module interconnections, flexible links between control boards, camera modules, and multi-channel signal routing systems. Careful consideration of pin count, mounting style, and operating conditions during FPC connector selection helps ensure optimal performance in both design and production stages.

Overall, the Kinghelm KH-CL0.5-H1.2-36PS-SMT reflects a balanced approach to high-density interconnection and compact form factor design. Its precise pitch, low profile, and stable locking mechanism make it a practical solution for achieving reliable flexible connections in space-constrained electronic products.
