USB Type-C connectors have become the standard for modern electronic devices due to their high-speed transmission, broad compatibility, and compact design. However, as technology advances, users' demands for connectors are evolving, particularly in terms of waterproofing and durability. Traditional USB Type-C connectors often fail to fully meet these requirements, leading to unstable device performance in harsh environments. This article will explore how innovative designs are overcoming these limitations, enhancing the waterproof and durable features of USB Type-C connectors to ensure stable operation in a variety of applications.

Kinghelm KH-TYPEC-48029-24SBAP-A Product Image

Pain Point: Connector Failure in Humid Environments

Traditional Issue:
USB connectors are vulnerable to water ingress in humid environments, leading to poor contact or even damage. Especially in outdoor devices, automotive electronics, or industrial automation, rain or accidental water exposure can cause devices to malfunction, resulting in significant user frustration.

Solution:
The Kinghelm KH-TYPEC-48029-24SBAP-A Type-C connector features an IPX8 waterproof rating, which allows it to function at depths of up to 1.5 meters underwater without performance degradation. This level of waterproofing is ideal for outdoor and industrial applications where exposure to moisture is common. Whether dealing with rain, splashes, or high-humidity environments, this connector ensures reliable operation and provides a robust solution for users in demanding conditions.

Pain Point: Wear and Tear from Frequent Usage

Traditional Issue:
In high-frequency usage scenarios, USB connectors often wear down due to repeated plugging and unplugging. This leads to poor connections, unstable data transfer, or even complete failure, diminishing the user experience.

Solution:
The KH-TYPEC-48029-24SBAP-A connector is designed to endure up to 10,000 insertions, making it highly resistant to wear and tear. Crafted from high-quality materials that are resistant to oxidation and abrasion, it ensures long-term durability and reliable connectivity, even in environments where connectors are frequently used. Whether it's in consumer electronics, industrial machinery, or automotive electronics, this connector is built to withstand continuous use without compromising performance.

Pain Point: Large Connector Size Limiting Space

Traditional Issue:
Some USB connectors have bulky designs that take up valuable space in compact devices. This can hinder the layout of other components and negatively affect the overall design of the device, particularly in lightweight or compact devices.

Solution:
The KH-TYPEC-48029-24SBAP-A connector has a compact design with a length of only 8.65mm, making it ideal for devices with limited space. This small form factor allows it to be easily integrated into smartphones, tablets, embedded systems, and other space-constrained devices without affecting the device's aesthetics or functionality. This design flexibility allows manufacturers to optimize the internal layout of their products and maximize the space for other critical components.

Pain Point: Insufficient Support for High Current and Data Transfer

Traditional Issue:
With the increasing power and data demands of modern devices, USB connectors need to handle higher currents and faster data transfers. However, many traditional connectors struggle to meet these needs, resulting in overheating, signal interference, or instability during high-load operations.

Solution:
The KH-TYPEC-48029-24SBAP-A connector supports an impressive 5A current rating, ensuring stable power delivery even for high-power devices. Its precision contacts and high-conductivity materials enable efficient power transmission and data transfer, supporting the growing demands of high-performance devices. Whether it’s for high-definition video output, fast charging, or rapid data transfer, this connector offers superior performance, eliminating the bottlenecks that traditional connectors often face when handling large currents and high-speed data.

Pain Point: Poor Stability in Extreme Temperature Conditions

Traditional Issue:
Temperature fluctuations can cause USB connectors to degrade, with plastic parts becoming brittle in cold conditions and metal contacts oxidizing or failing in high temperatures. This leads to poor connection reliability, especially in devices used in extreme environments.

Solution:
The KH-TYPEC-48029-24SBAP-A connector operates within a wide temperature range of -55℃ to +85℃, ensuring stable performance in both cold and hot environments. This makes it suitable for devices that operate in harsh temperature conditions, such as automotive electronics, aerospace, and industrial applications. The connector’s robust temperature tolerance eliminates the risk of failure due to temperature variations, ensuring a long-lasting and reliable connection no matter the environment.

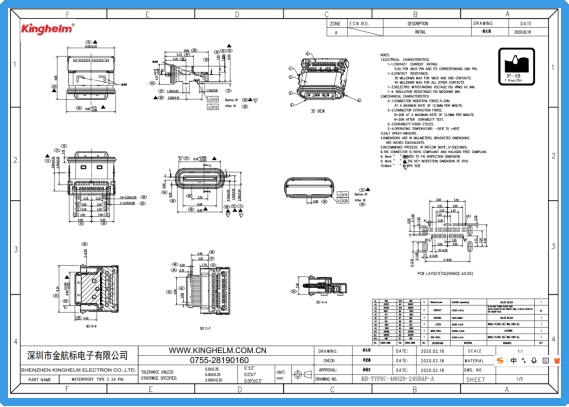

Kinghelm KH-TYPEC-48029-24SBAP-A Specification

Conclusion

As USB Type-C connectors become the backbone of modern electronic devices, their quality and performance are more critical than ever. The Kinghelm KH-TYPEC-48029-24SBAP-A connector addresses several key challenges faced by traditional USB connectors, offering enhanced waterproofing, durability, higher current handling, and wide temperature adaptability. With its innovative design, this connector provides a reliable solution for a wide range of applications, from consumer electronics to industrial machinery, ensuring users can rely on stable, high-performance connectivity in any environment.
