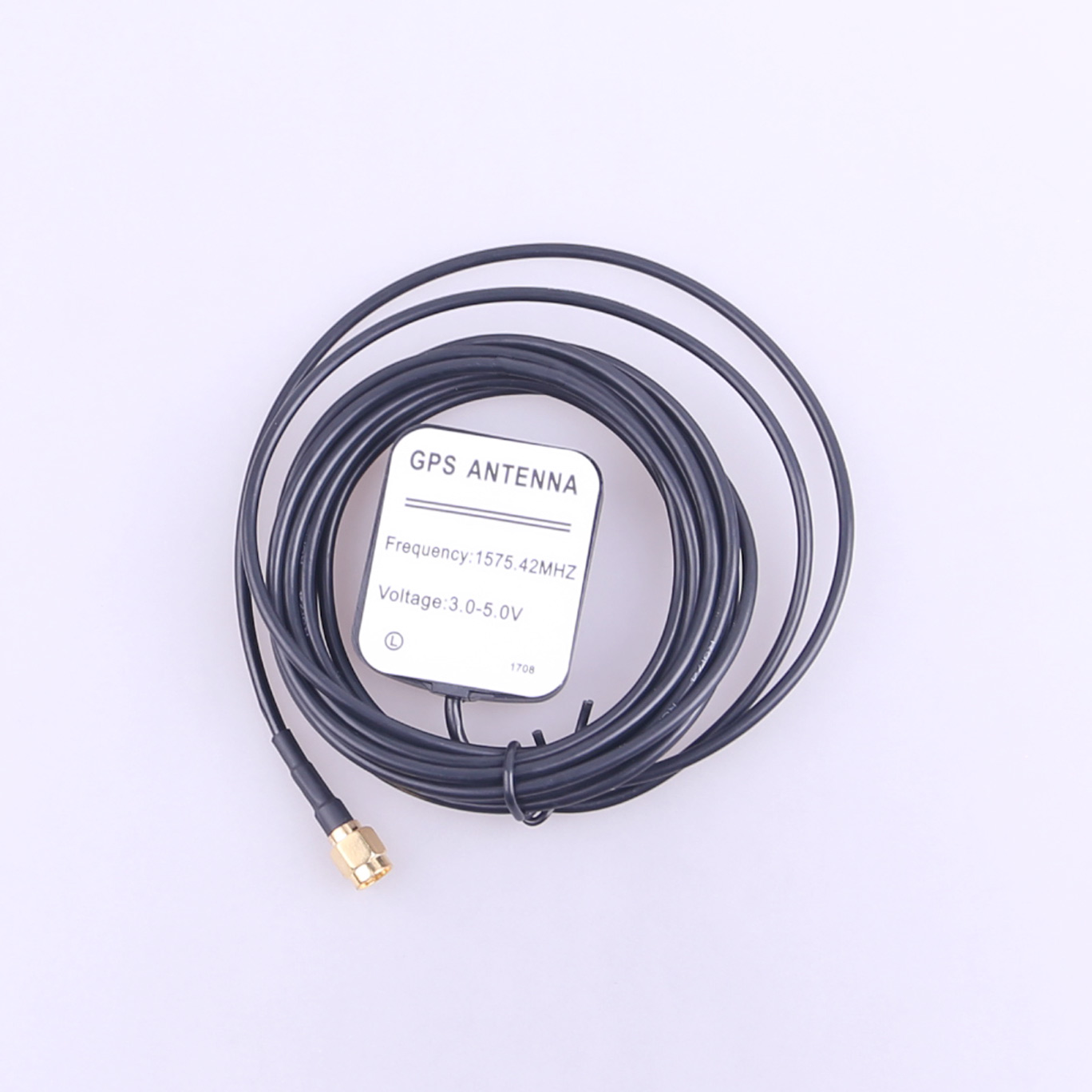

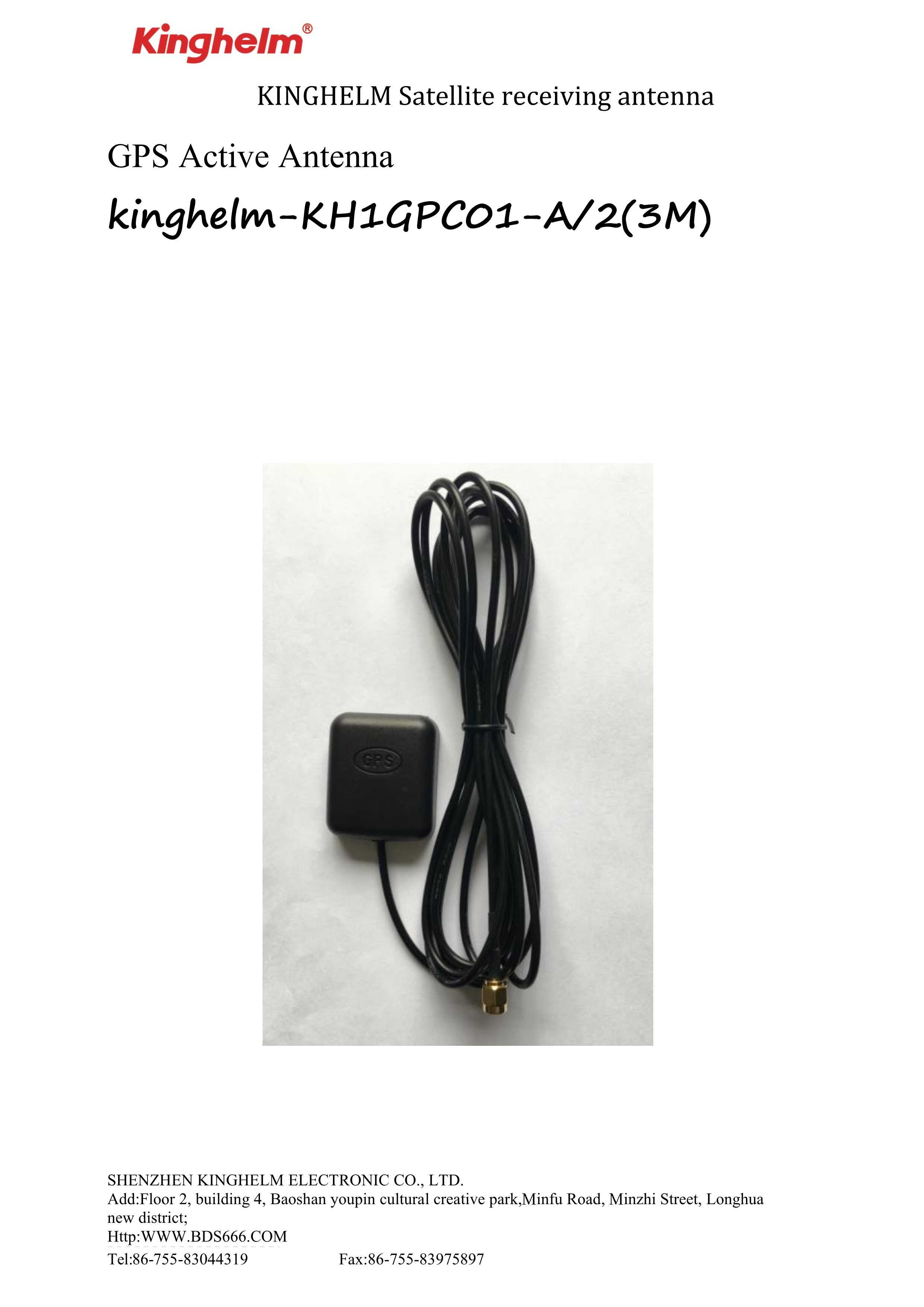

Beidou/GPS/GNSS Antenna KH1GPC-01
Beidou/GPS/GNSS Antenna KH1GPC-01

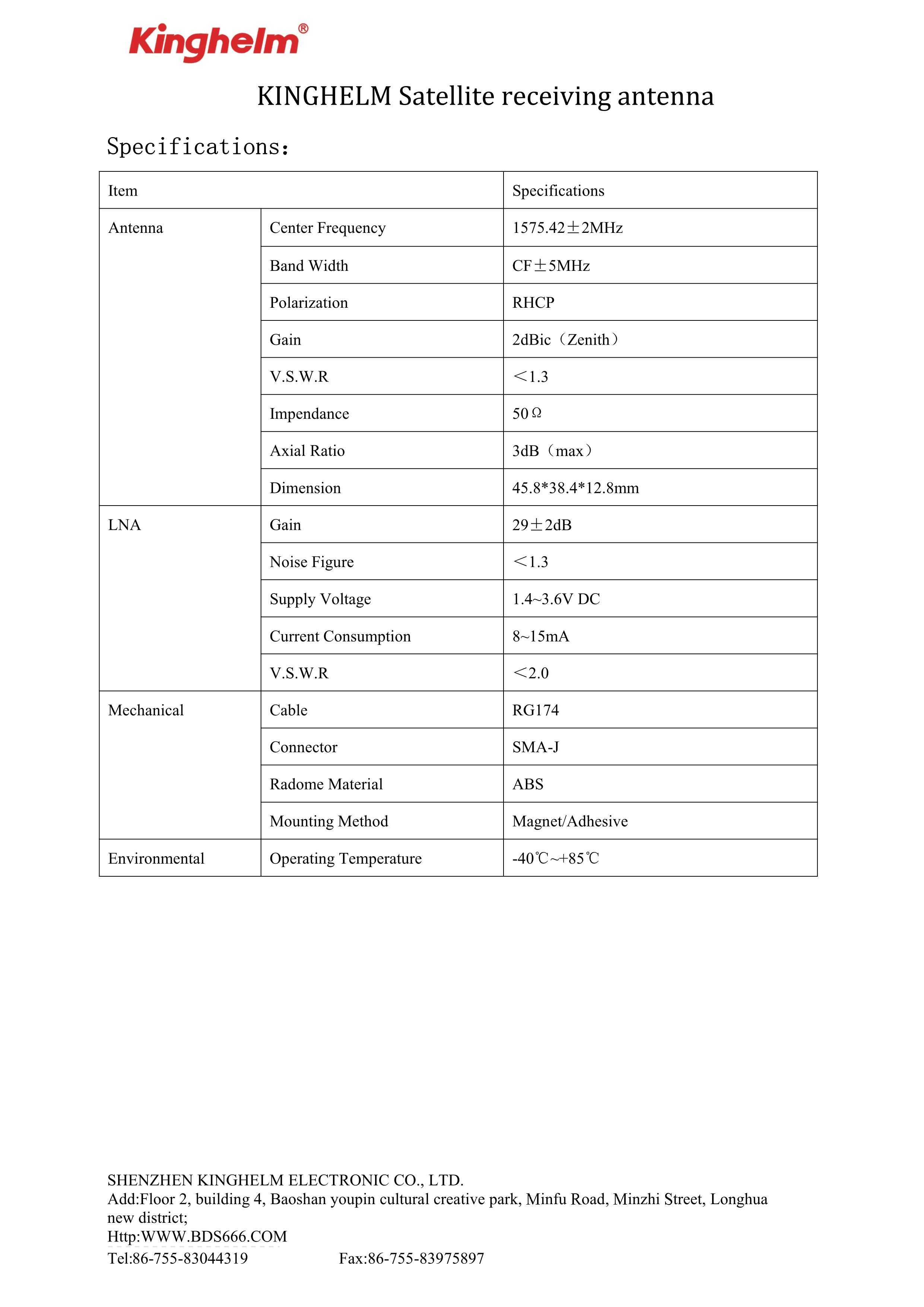

Frequency: 1575.42±2MHz
Bandwidth: CF±5MHz
Impedance: 50Ω
V.S.W.R: <1.3
Gain: 2dBic(Zenith)
Operating Temperature: -40℃~+85℃
Product Features:
-High-quality GNSS antenna
-External antenna design
-Excellent performance in challenging environments
-Customizable antenna frequency
-Easy to install and use
-Active patch antenna with 29±2dB gain
-RHCP polarization
-ABS radome material
-Magnet or adhesive mounting method
Application Areas:
-GPS navigation systems
-Vehicle tracking systems
-Marine navigation systems
-Surveying and mapping applications
-Precision agriculture
Name
Title
Description
Datasheet
