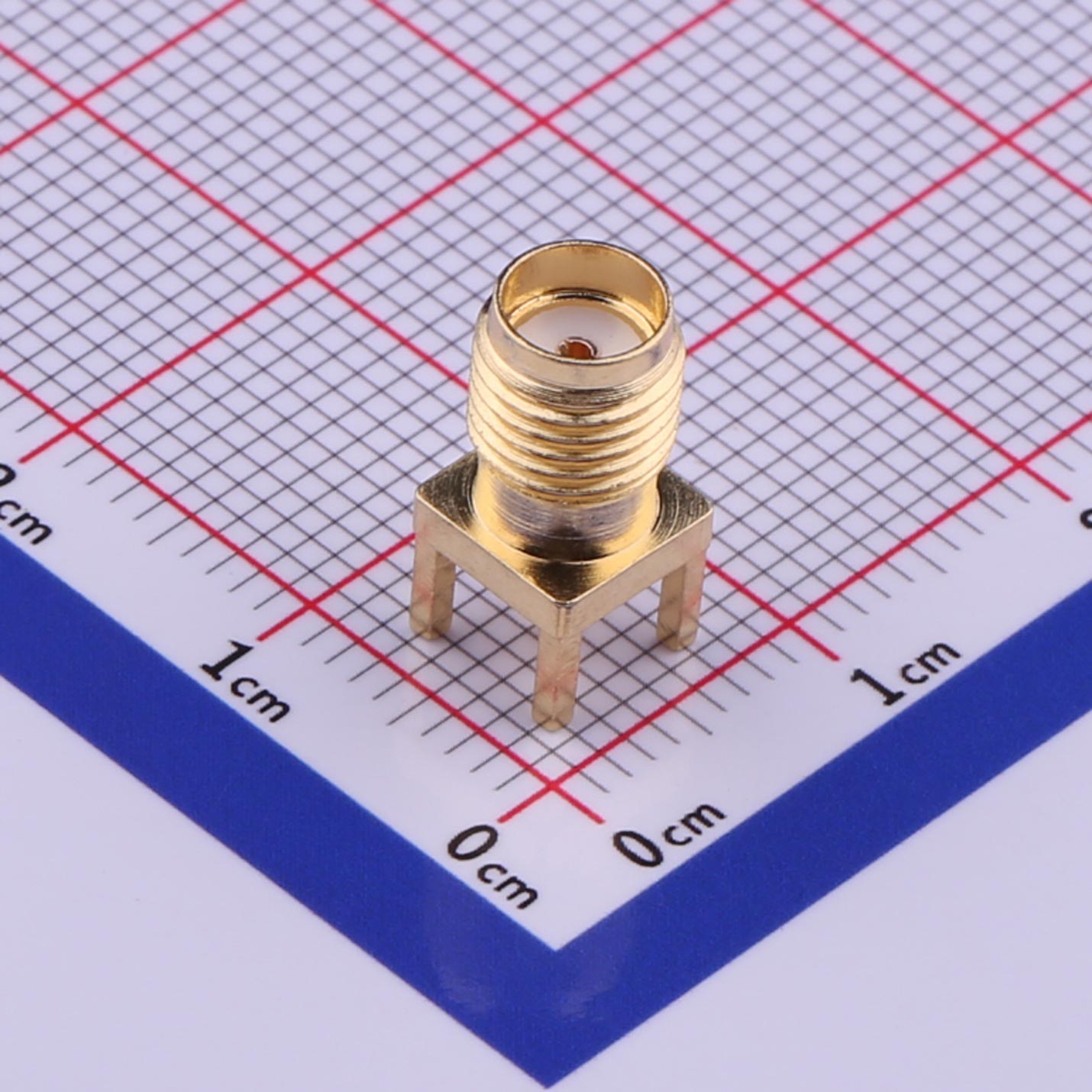

5-1814832-2 TE Connectivity Benchmark against - Kinghelm SMA Connector KH-SMA-KE-Z

Interface Length/Height: 8mm

Interface Diameter: 6.2mm

Connector Type: Board Edge

Interface Type: Inner Bore

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Benefits

●Standardized Interface: The SMA (SubMiniature version A) interface type ensures compatibility and interchangeability with a wide range of RF devices and equipment, providing flexibility in system integration.

●Secure Connection: The positive feet board edge connector style, with an inner bore diameter of 6.2mm, facilitates a secure and stable connection, reducing the risk of signal loss or disconnection.

●Compliance: RoHS compliance signifies that the antenna meets environmental regulations, promoting sustainability and eco-friendly design.

Advantages

●Interoperability: The RF Series interface type, specifically the SMA connector, allows for seamless connectivity and interoperability with various RF components and systems, enabling broader usage and compatibility.

●Reliable Connection: The positive feet board edge style, along with the specified dimensions, ensures a reliable and robust connection, minimizing the likelihood of signal interruptions or performance degradation.

●Environmental Responsibility: The RoHS compliance demonstrates a commitment to environmental protection and safety, aligning with global standards and regulations for hazardous substance restriction in electronic products.

Kinghelm alternative equivalents for TE：

TE	Kinghelm Replacements
Part Number	Part Number	Product Category	Package
2032440-1	KHB180-37(13)-28	IPEX to SMA	/
5-1814400-1	KH-SMA-K513-G	SMA	Plug-in
5-1814832-2	KH-SMA-KE-Z	SMA	Plug-in
1909763-1/U.FL-R-SMT-1(80)	KH-IPEX-K501-29	IPEX	SMD
638817-4	KH-FAK-K508-P	FAKRA	Plug-in
1-1337541-0	KH-BNC50-3511	BNC	Plug-in
84953-6	KH-CL1.0-H2.5-6PS	FFC/FPC Connector	SMD
1734366-1	KH-AF90DIP-112	USB Type-A	Plug-in
5558342-1	KH-RJ45-56-8P8C-D	RJ45 Network Connector	Plug-in
5406533-1	KH-RCH56-8P8C-D	RJ45 Network Connector	Plug-in
2-406549-1	KH-5224-8P8C-D	RJ45 Network Connector	Plug-in
1-406541-1	KH-RJ45-56-8P8C-D-T	RJ45 Network Connector	Plug-in
FSM6JSMA	KH-6X6X7H-STM	Tactile Switch	SMD
3-1437565-0	KH-4.5X4.5X4.3H-STM	Tactile Switch	SMD
4-1437565-2	KH-6X6X4.3H-STM	Tactile Switch	SMD
1-1825027-1	KH-6X6X8H-ZJ	Tactile Switch	Plug-in
1825027-5	KH-6X6X4.3H-ZJ	Tactile Switch	Plug-in
8-1437565-0	KH-404015-AJ	Tactile Switch	SMD
826629-3	KH-2.54PH180-1X3P-L11.5	Pin Header	Plug-in
