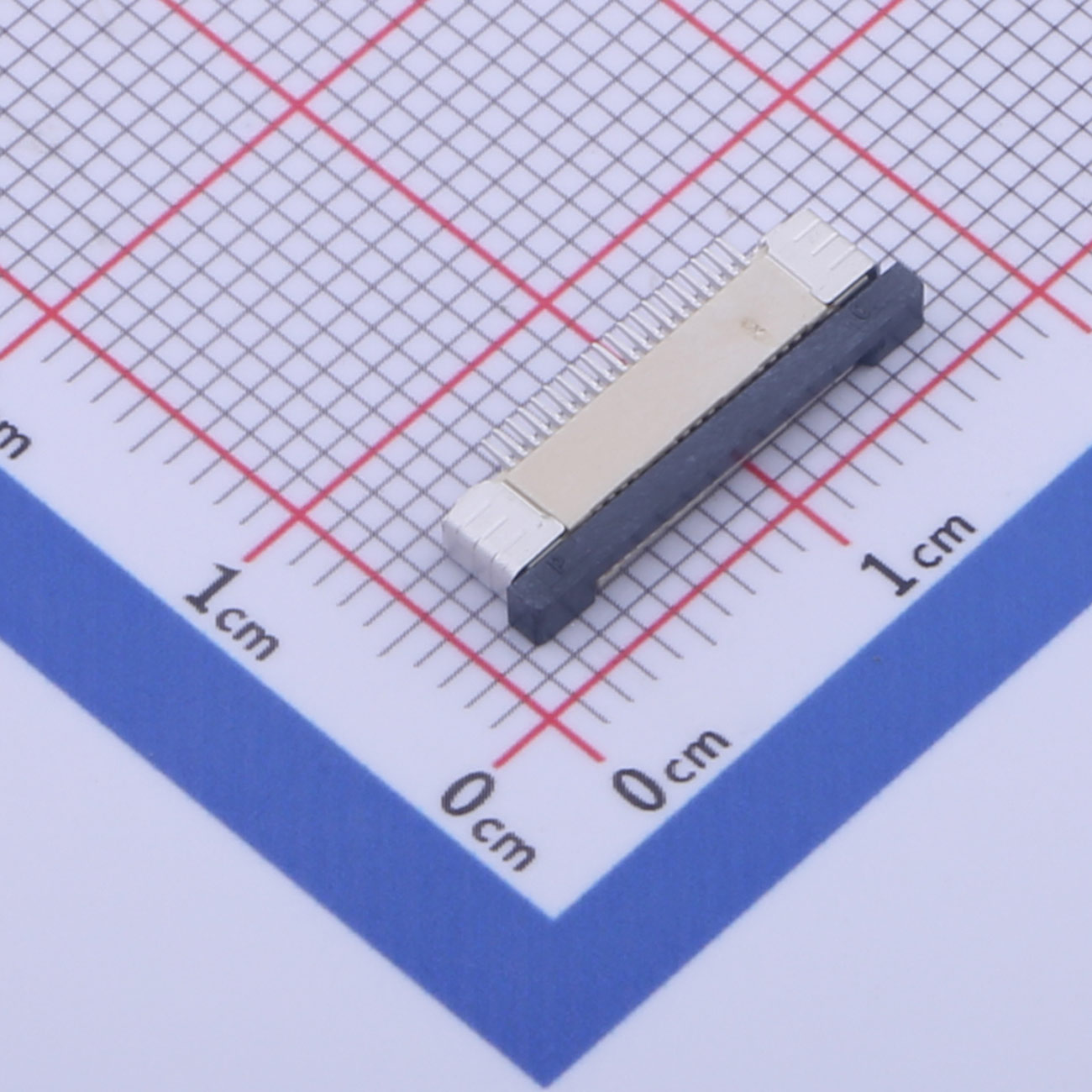

0.5mm FFC/FPC Connectors | FFC & FPC Connectors Manufacturer

Discover our premium range of FFC/FPC connectors KH-CL0.5-H2.0-20ps designed for reliable and high-speed connectivity in various electronic applications. Ideal for low-profile designs, our connectors ensure seamless integration with flexible flat cables, offering durability and performance. Explore our custom options to meet your specific needs.

Temperature Range: -25°C ~ +85°C

Rated Voltage: 50V, AC/DC (Equivalent)

Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥500MΩ

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● Pin Configuration: 8-pin
● Package Type: Compact SMD
● Locking Mechanism: Latch Lock
● Operating Temp Range: -40°C to 85°C
● Mounting Height: 2.0mm max

Product Benefits

● Enhanced Durability: Robust design ensures long-term reliability
● Space-Saving: Ideal for PCBs with limited real estate
● Secure Connection: Latch lock prevents accidental disconnection
● Broad Temp Range: Suitable for diverse environmental conditions
● Easy Installation: Streamlined mounting process reduces assembly time

Product Application

● Telecom Equipment: Ideal for high-density circuit boards
● Industrial Controls: Perfect fit for automation systems
● Data Centers: Ensures stable performance in server environments
● Automotive Systems: Suitable for in-vehicle electronics
● Medical Devices: Meets stringent safety and reliability standards
