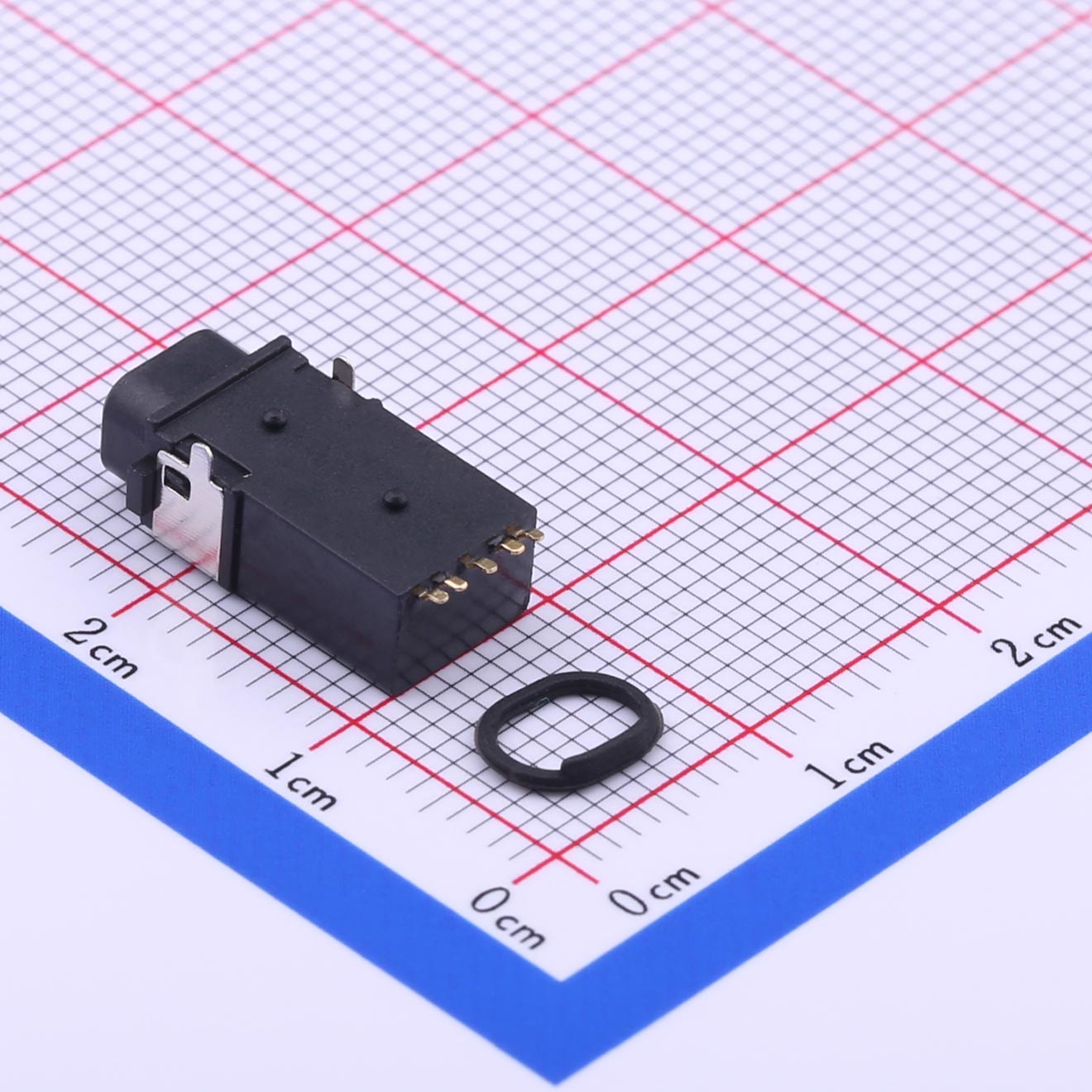

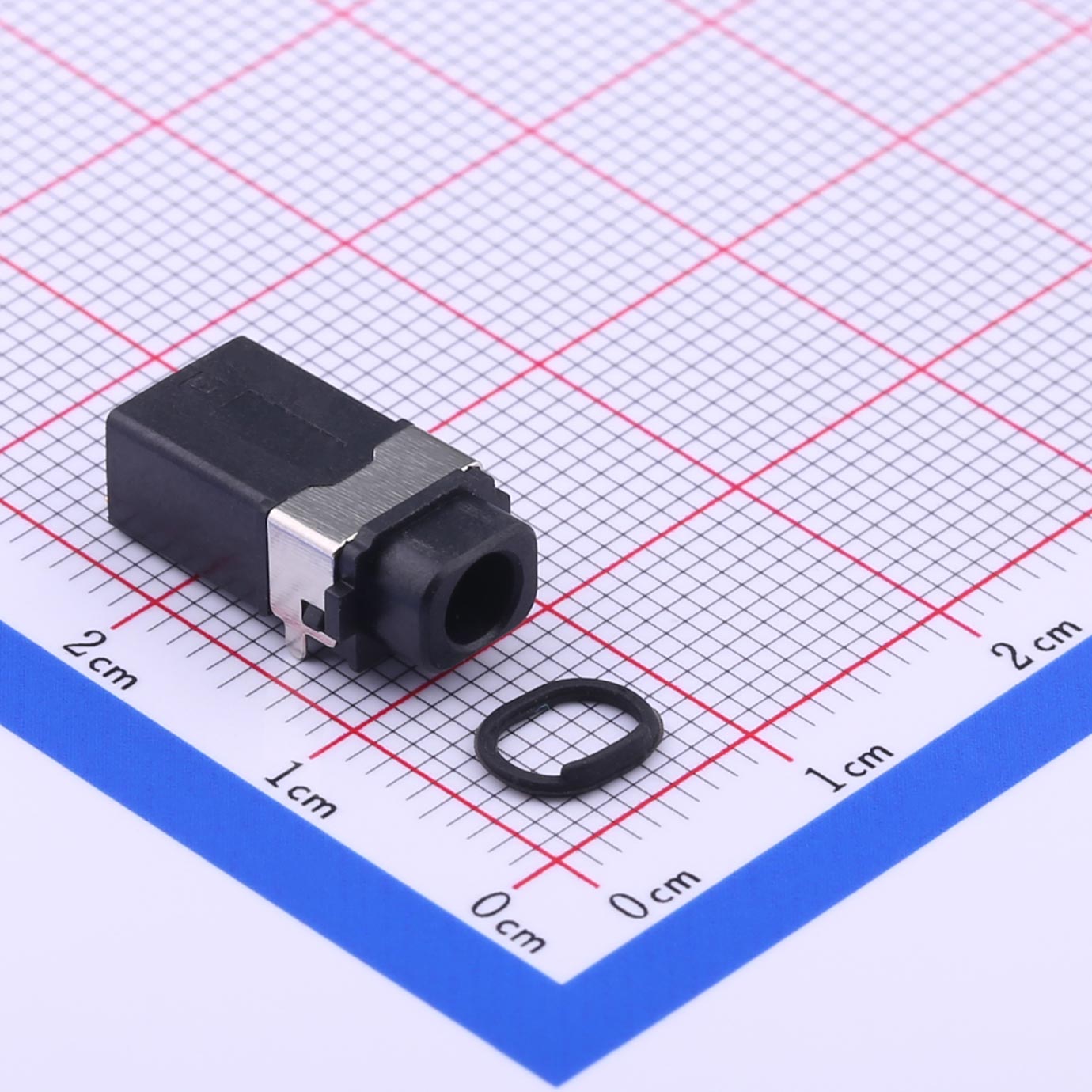

Reliable Audio Jack Connectors | RoHS Compliant | Fast Shipping & Free Samples

Our durable audio jack connectors, including 3.5mm models, are RoHS compliant and designed for superior performance. Enjoy fast shipping and free samples to test the connectors for your audio applications.

Rated Load: DC 30V 0.5A

Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥100 MΩ (DC 250V)

Withstand Voltage: 500V AC

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● 3.5mm headphone jack connector

● Excellent electrical performance with low resistance

● High voltage resistance and good signal transmission

● Compact design for easy installation and maintenance

● Reliable sealing and protection features

Product Benefits

● Provides stable and efficient signal and power connections

● Ensures long-term stability and reliability

● Suitable for harsh environments

● High electrical transmission efficiency for demanding applications

Product Application

● Used in industrial automation systems

● Applied in aerospace and medical devices

● Ideal for communication equipment

● Suitable for high-reliability connection needs in various industries
