Looking for RoHS-compliant 2.54mm DIP switches? Our fast shipping and free samples make it easy to test before you buy. Trusted manufacturer for all your switching needs.

Contact Resistance: 50Ω Max

Insulation Resistance: 100MΩ at 250VDC

Insulation Strength: 500VAC/1 minute

Applicable Temperature: -20°C to +70°C(Ice-free)

Electrical Life: 2000 Times

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

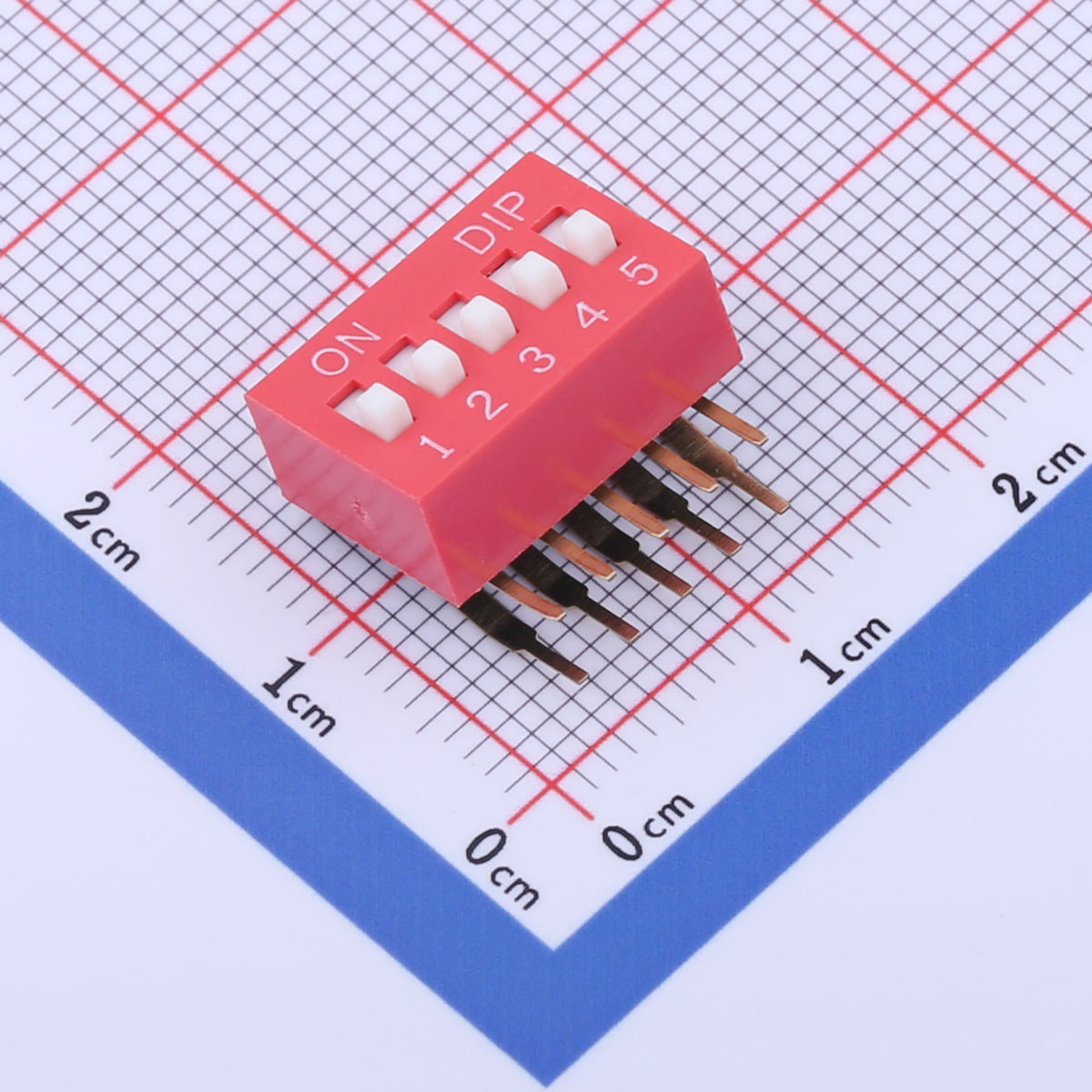

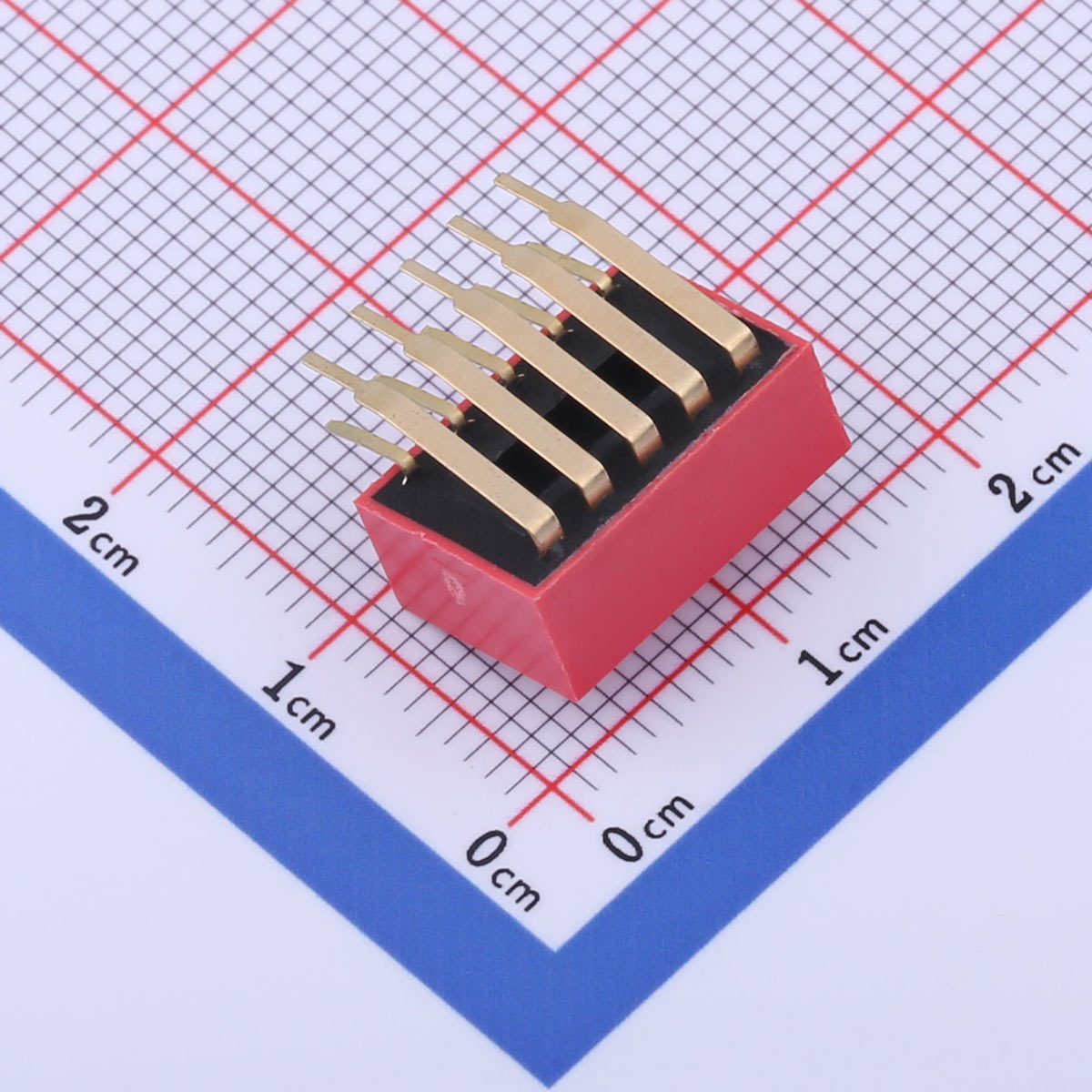

● 5P horizontal design for easy use

● 2.54mm pitch for connection

● 100mA/24V for common needs

● -20℃-+70℃ wide temp range

● 2000 times lifespan for reliability

● Red color for easy identification

Product Benefits

● High reliability for long-term use

● Wide temp range for various envs

● Easy install and use for users

● Multi-functional for different apps

Product Application

● Used in electronic device settings

● Applied to circuit board controls

● Suitable for product adjustments

● Utilized in switch mode controls

● Employed in digital equipment
