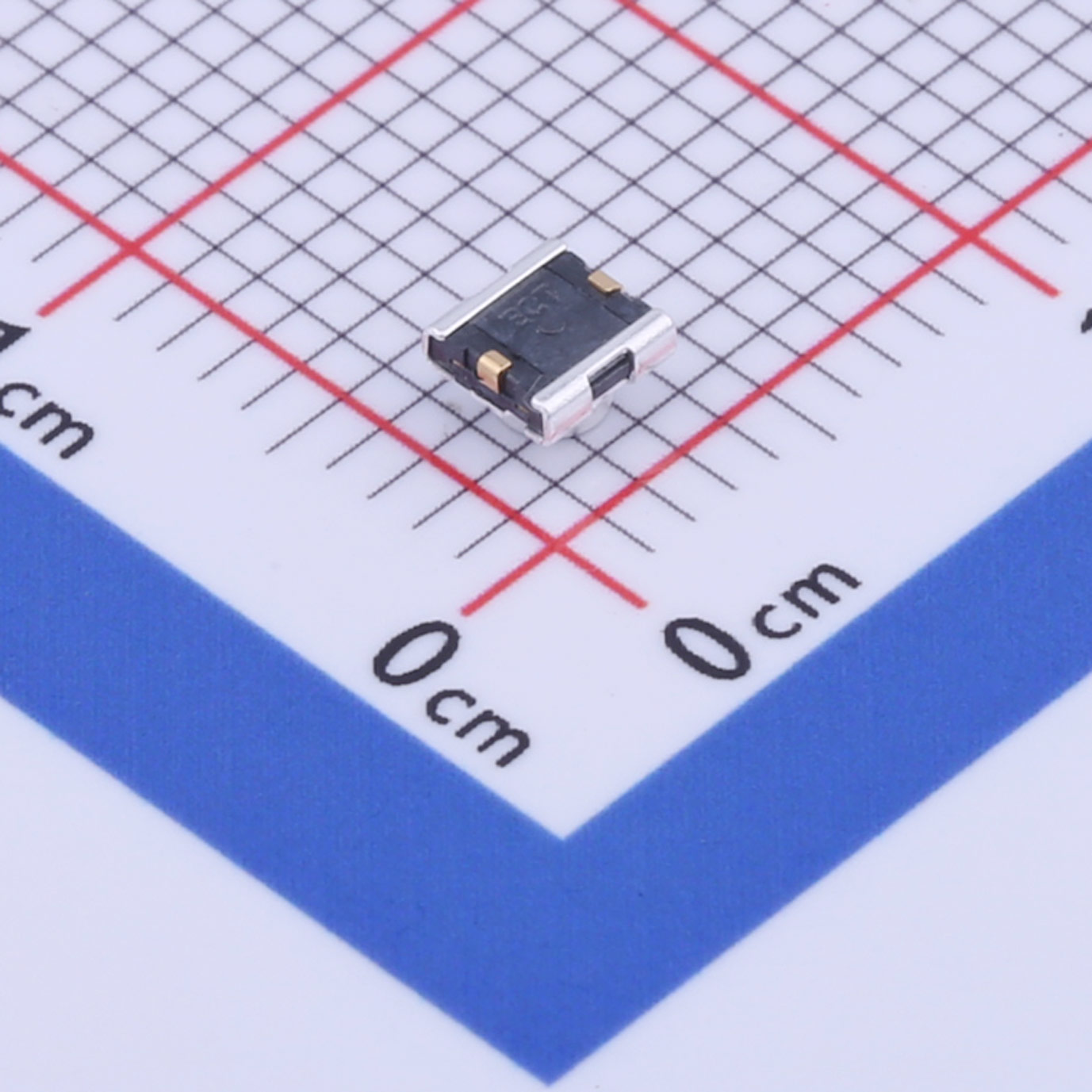

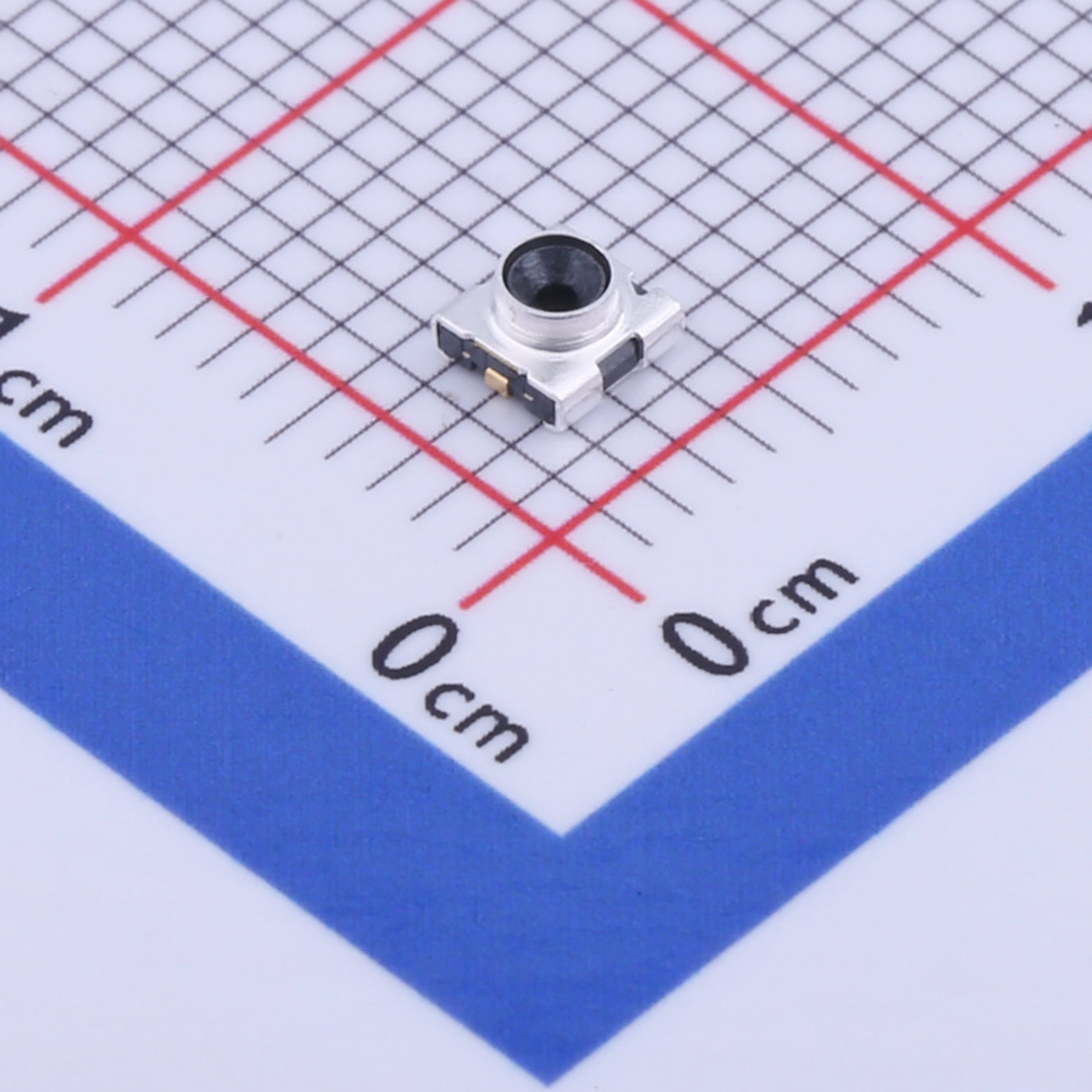

High-Frequency IPEX Connector 3.03.01.75mm | 50Ω Impedance, -40℃ to +85℃ Operating Temperature

Discover the high-performance IPEX connector with a maximum frequency of 6GHz and 50Ω impedance. Designed for reliable operation from -40℃ to +85℃, this 3.03.01.75mm silver-plated connector features a board edge design and inner bore interface for secure and precise connections. Ideal for high-frequency applications and durable performance.

Frequency-Max: 6GHz

Impedance: 50Ω

Interface Diameter: 2.1mm

Operating Temperature: -40℃~+85℃

Connector Type: Board Edge

Interface Type: Inner bore

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

●Capable of handling high-frequency signals with exceptional clarity

●Ensures optimal signal integrity and minimal signal loss

●Designed for precise connectivity in compact spaces

●Reliable performance across a wide range of temperatures

●Ideal for applications requiring direct attachment to a circuit board

●Provides a secure and stable connection

●First generation, 3.03.01.75mm, silver-plated — Ensures durability and high performance

Product Advantages

●With a maximum frequency of 6GHz, this connector supports high-speed data transmission and high-frequency applications

●The 50Ω impedance ensures consistent signal quality and minimizes losses, which is critical for high-performance electronics

●Operates reliably in extreme temperatures from -40℃ to +85℃, making it suitable for various environmental conditions

●The 2.1mm interface diameter allows for precise fitting and space-efficient designs

●The silver-plated IPEX connector provides enhanced durability and long-lasting performance

●The board edge connector type ensures a stable and secure attachment to the circuit board, reducing the risk of disconnections or signal interference
