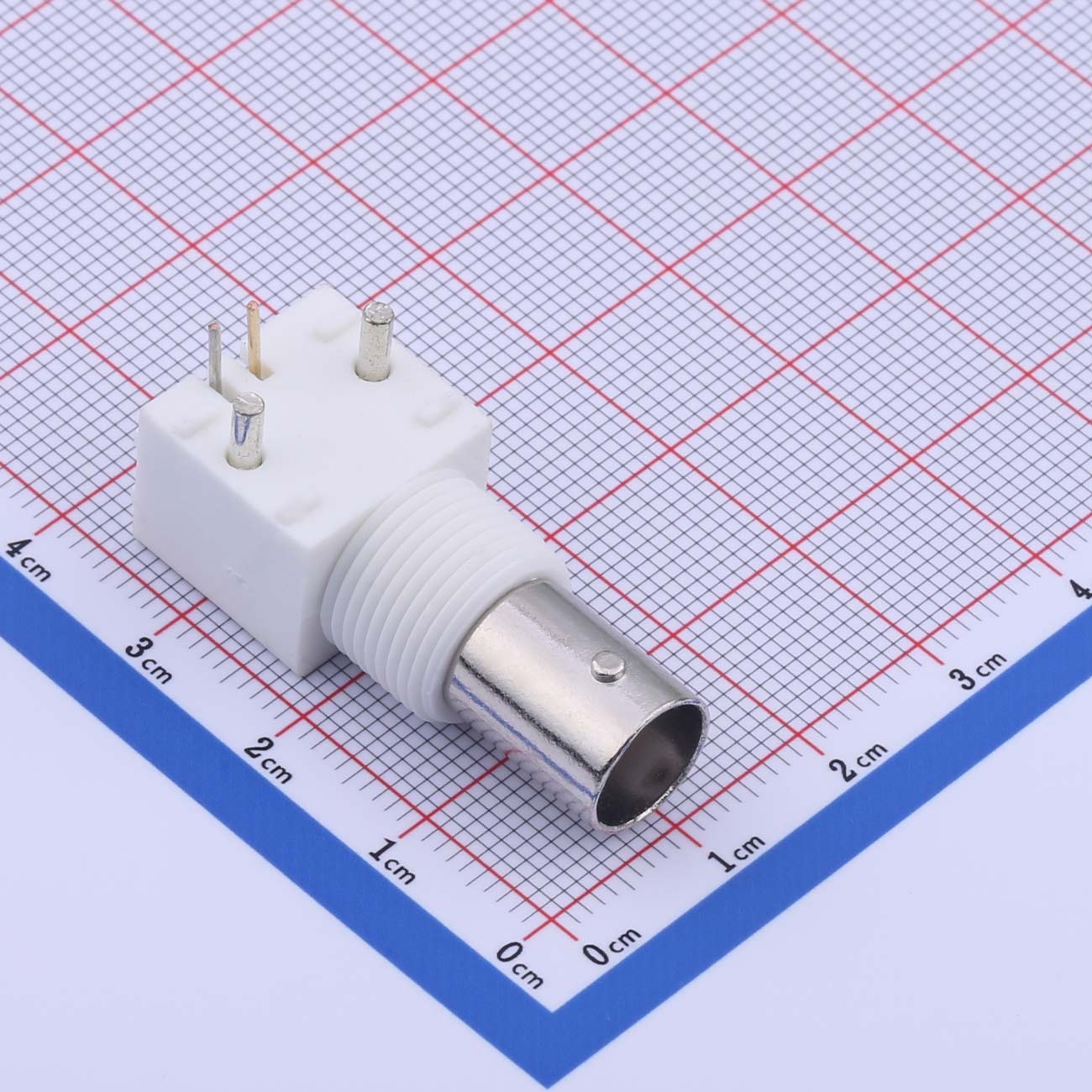

Kinghelm BNC Connector RF coaxial Connector diameter 9.5 mm - KH-BNC75-3511

Interface: Inner Hole

Interface Diameter: 9.5mm

Impedance: 75Ω

Frequency: DC-3GHz

Operating Temperature Range: -55℃~+155℃

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

The Kinghelm BNC Connector RF Coaxial Connector Diameter 9.5 mm - KH-BNC75-3511 is a high-quality product designed for use in electronic devices that require high-frequency signal transmission. It is commonly used in communication equipment, such as antennas, transmitters, and receivers.

This connector is made of high-quality materials, including a gold-plated brass body and a PTFE insulator, which ensures excellent electrical performance and durability. It is compatible with BNC connectors and can be easily installed on the PCB board.

The KH-BNC75-3511 connector has a frequency range of DC to 4 GHz and a maximum voltage rating of 500V. It also has a low insertion loss and high return loss, which makes it ideal for high-frequency applications.

Overall, the Kinghelm BNC Connector RF Coaxial Connector Diameter 9.5 mm - KH-BNC75-3511 is a reliable and high-performance product that can meet the demands of various electronic devices that require high-frequency signal transmission.

Product Features:

1. BNC connector design for quick and easy installation and removal.

2. High reliability with excellent shock and vibration resistance.

3. Compact size reduces installation space requirements.

4. High-quality material construction ensures long-term stable performance.

Product Parameters:

Parameters Tables
Brand	Kinghelm
Model	KH-BNC75-3511
Connector Type	BNC Connector
RF Connector Type	Coaxial Connector
Interface Diameter	9.5 mm
Operating Temperature Range	-55℃ ~ +155℃

Application Areas:

Kinghelm BNC Connector RF Coaxial Connector Diameter 9.5mm - KH-BNC75-3511 is suitable for RF signal transmission in various fields, including cable TV, set-top boxes, satellite receivers, car navigation, and other industries.
