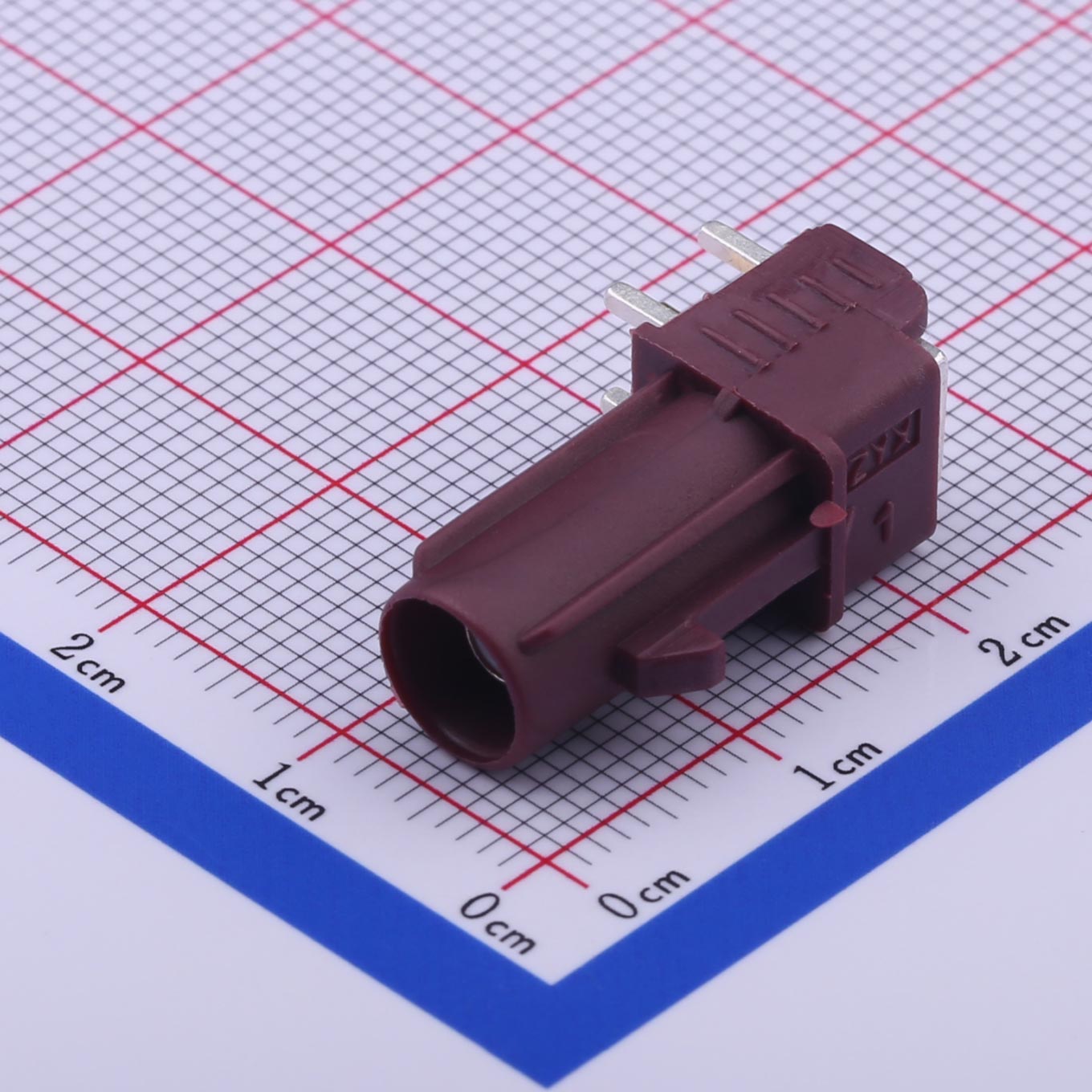

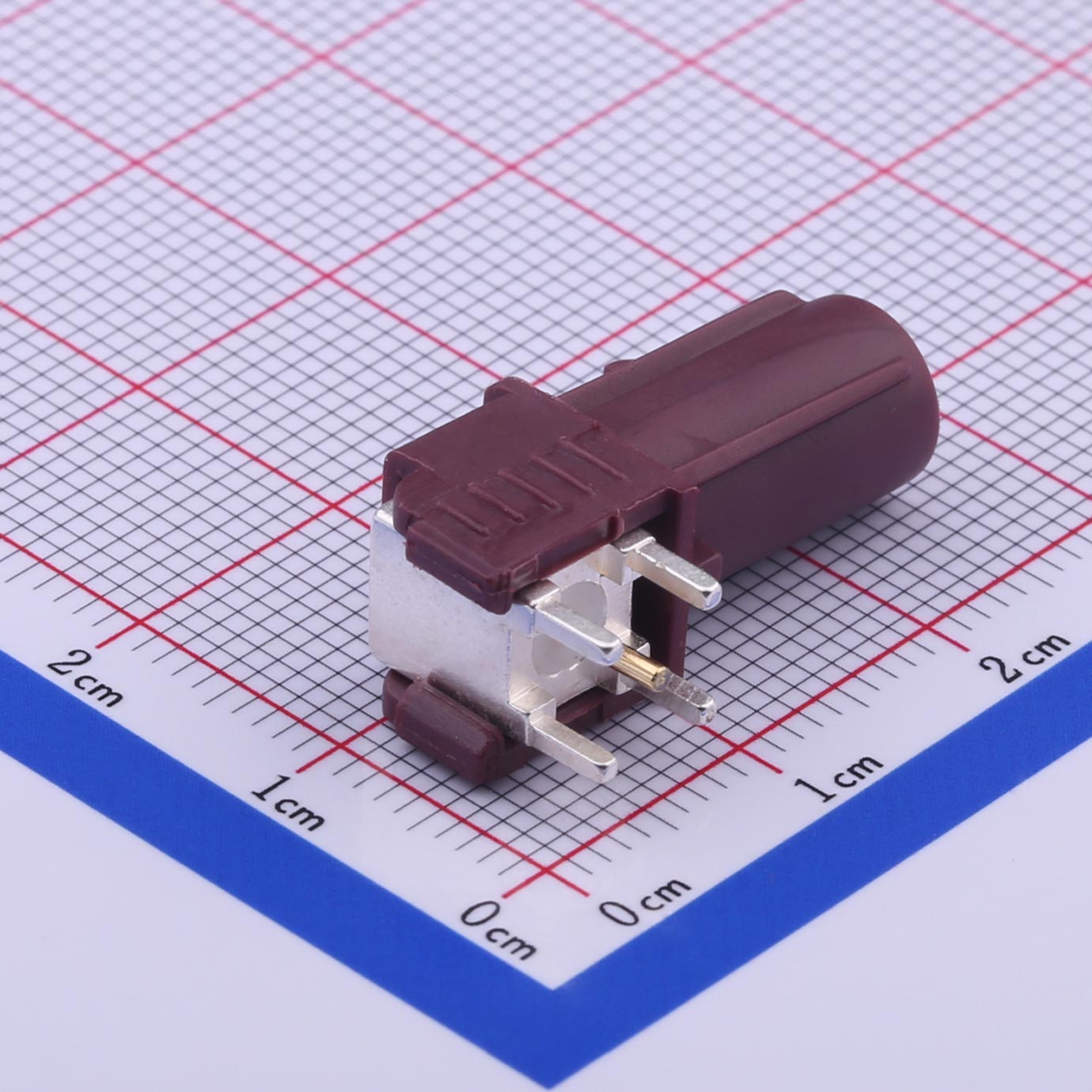

Kinghelm Fakra Connector RF Coaxial Connector 3.0*3.0*1.75mm - KH-FAK-K509-B
Kinghelm Fakra Connector RF Coaxial Connector 3.0*3.0*1.75mm - KH-FAK-K509-B
Impedance: 50Ω
Insulation Resistance: ≥1000MΩ
Frequency Range: DC – 6GHz
Operating Temperature: -40℃ to +105℃
Withstand Voltage: 500V RMS
Product Description:
The Kinghelm Fakra Connector RF Coaxial Connector 3.0*3.0*1.75mm - KH-FAK-K509-B is a high-quality connector designed for use in RF applications. It is a Fakra connector that meets the highest standards for reliability and performance.
This connector features a compact design that makes it easy to install even in tight spaces. Its durable construction ensures long-lasting performance, even in harsh environments. This connector is designed to deliver excellent signal quality and low insertion loss, making it a great choice for use in demanding RF applications.
The KH-FAK-K509-B is a versatile connector that is compatible with various types of coaxial cables. Its easy-to-use design allows for quick and easy installation, while its high-quality construction ensures reliable performance over time.
Product Features:
- High-quality Fakra connector for RF applications
- Compact design for easy installation in tight spaces
- Durable construction for long-lasting performance
- Excellent signal quality and low insertion loss
- Compatible with various types of coaxial cables
- Easy to use and install
Product Specifications | |
Connector type | RF connector |
Connector style | Fakra connector |
Gender | Female |
Impedance | 50 Ω |
Frequency range | DC to 6 GHz |
Contact plating | Gold |
Contact resistance | 10 mOhm max |
Insulation resistance | 1000 MΩ min |
Operating temperature | -40°C to +105°C |
Product Applications:
The Kinghelm Fakra Connector RF Coaxial Connector 3.0*3.0*1.75mm - KH-FAK-K509-B is ideal for use in a variety of RF applications, including:
- Automotive applications
- GPS systems
- Wireless communication systems
- Satellite communication systems
- Antenna systems
- Test and measurement equipment
Package Contents:
- 1 x Kinghelm Fakra Connector RF Coaxial Connector 3.0*3.0*1.75mm- KH-FAK-K509-B
