Discover our premium range of FFC/FPC connectors designed for reliable and high-speed connectivity in various electronic applications. Ideal for low-profile designs, our connectors ensure seamless integration with flexible flat cables, offering durability and performance. Explore our custom options to meet your specific needs.

Temperature Range: -25°C ~ +85°C

Rated Voltage: 50V, AC/DC (Equivalent)

Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥500MΩ

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

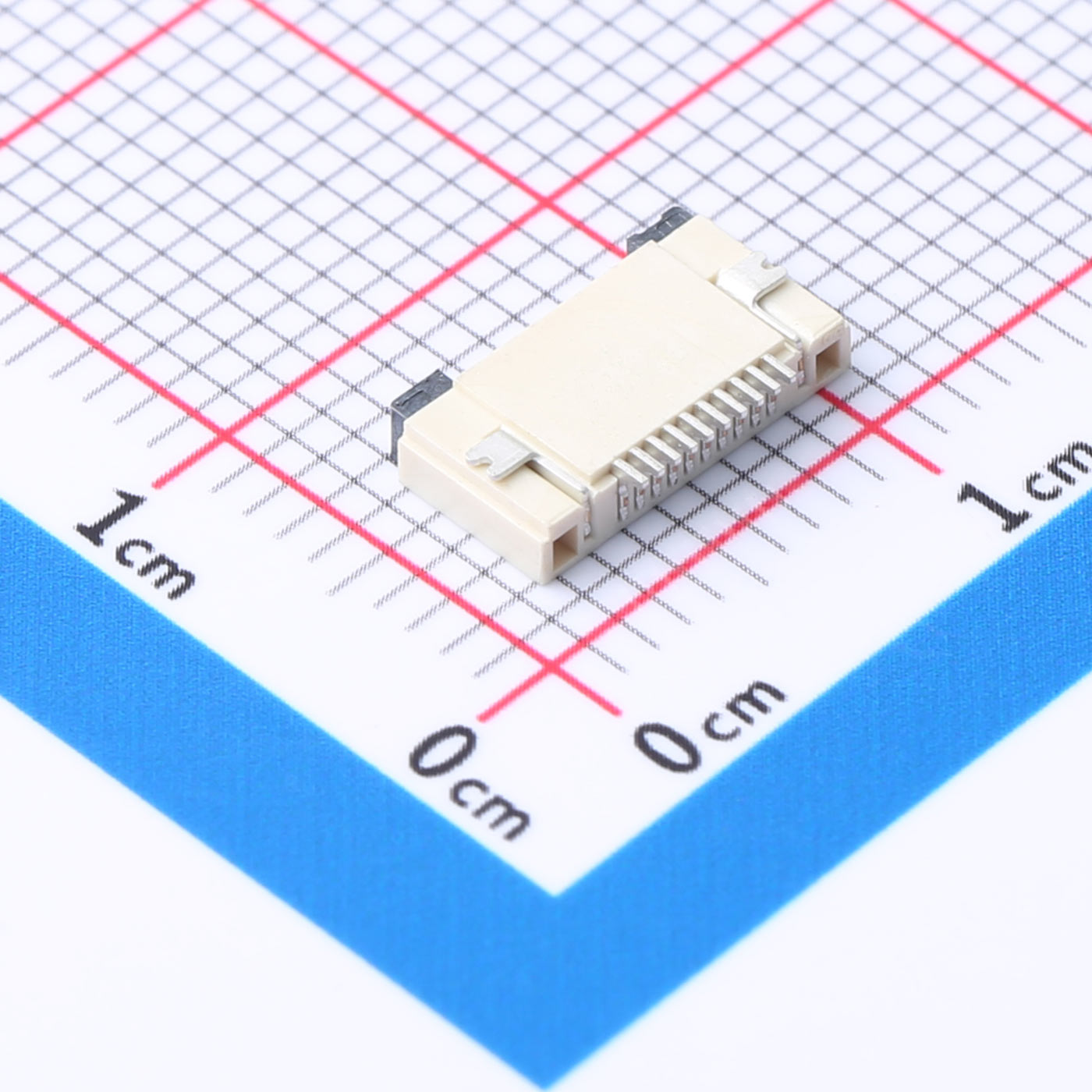

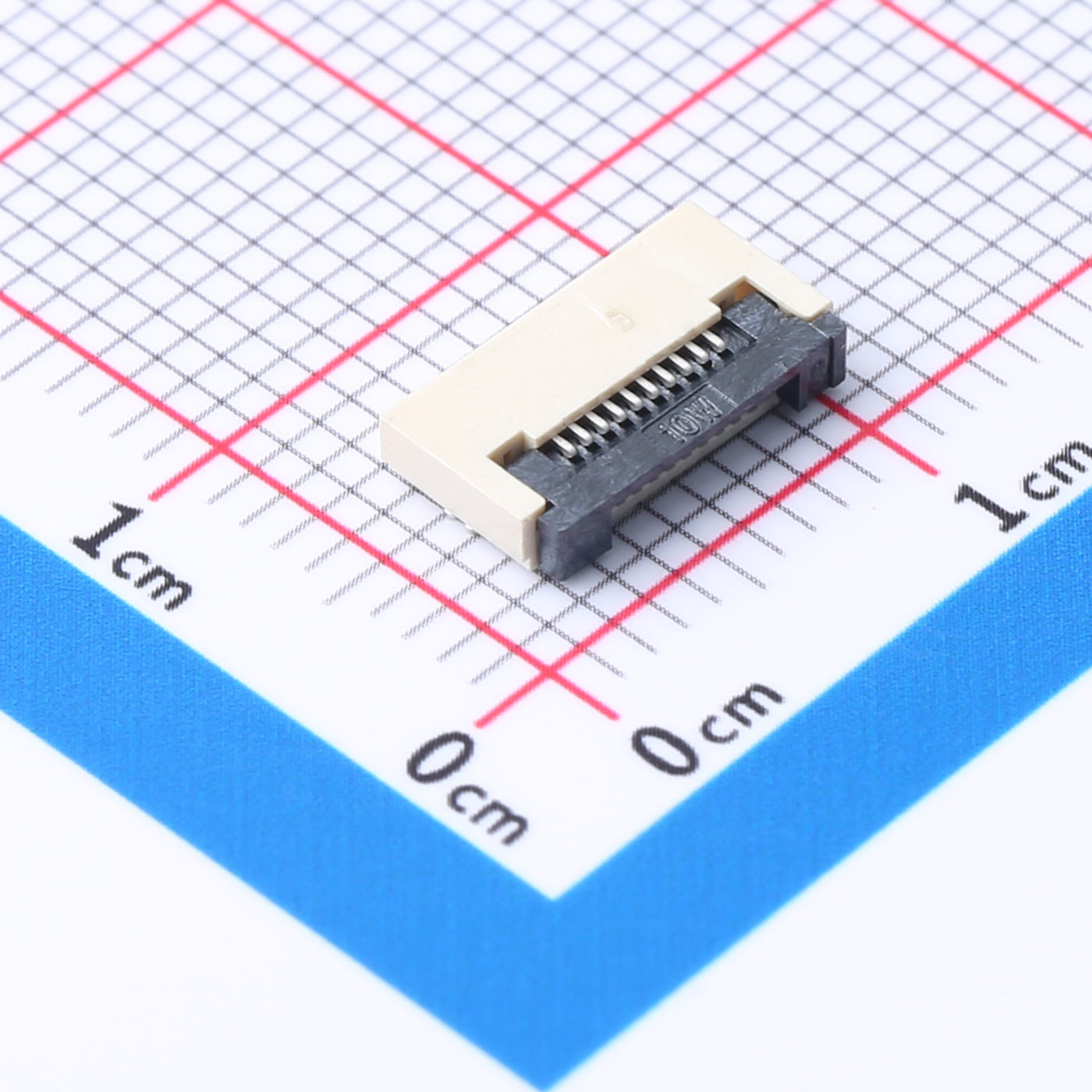

The Kinghelm FPC Connector KH-FG0.5-H2.0-10P-SMT is a high-quality connector designed for use in various electronic devices. It is a reliable and durable connector that provides a secure connection between the FPC and the PCB. This connector is ideal for use in applications that require a high level of performance and reliability.

Product Features:

--High-quality FPC Connector

--50V Voltage

--0.5Pitch

--2MM Height

--10 Pins

--Surface Mount Technology (SMT)

--RoHS compliant

--UL certified

Product Specifications:

Rated Voltage	50V AC/DC
Rated Current	0.5A AC/DC
Contact Resistance	50mΩ Max
Insulation Resistance	100MΩ Min
Withstanding Voltage	200V AC/Minute
Operating Temperature	-25°C to +85°C

Application Areas:
The Kinghelm FPC Connector KH-FG0.5-H2.0-10P-SMT is widely used in various electronic devices such as smartphones, tablets, laptops, digital cameras, and other consumer electronics. It is also suitable for use in industrial applications, medical equipment, and automotive electronics.

Brand Certificate:
Kinghelm is a leading manufacturer of high-quality connectors and has been providing reliable and durable products for over 20 years. Our products are widely recognized and trusted by customers worldwide.

Product Packaging:
The Kinghelm FPC Connector KH-FG0.5-H2.0-10P-SMT is packaged in a tray and then placed in a box. The box is labeled with the product name, model number, and quantity. We also offer customized packaging options to meet the specific needs of our customers
