Discover our premium range of FFC/FPC connectors designed for reliable and high-speed connectivity in various electronic applications. Ideal for low-profile designs, our connectors ensure seamless integration with flexible flat cables, offering durability and performance. Explore our custom options to meet your specific needs.

Temperature Range: -25°C ~ +85°C

Rated Voltage: 50V, AC/DC (Equivalent)

Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥500MΩ

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

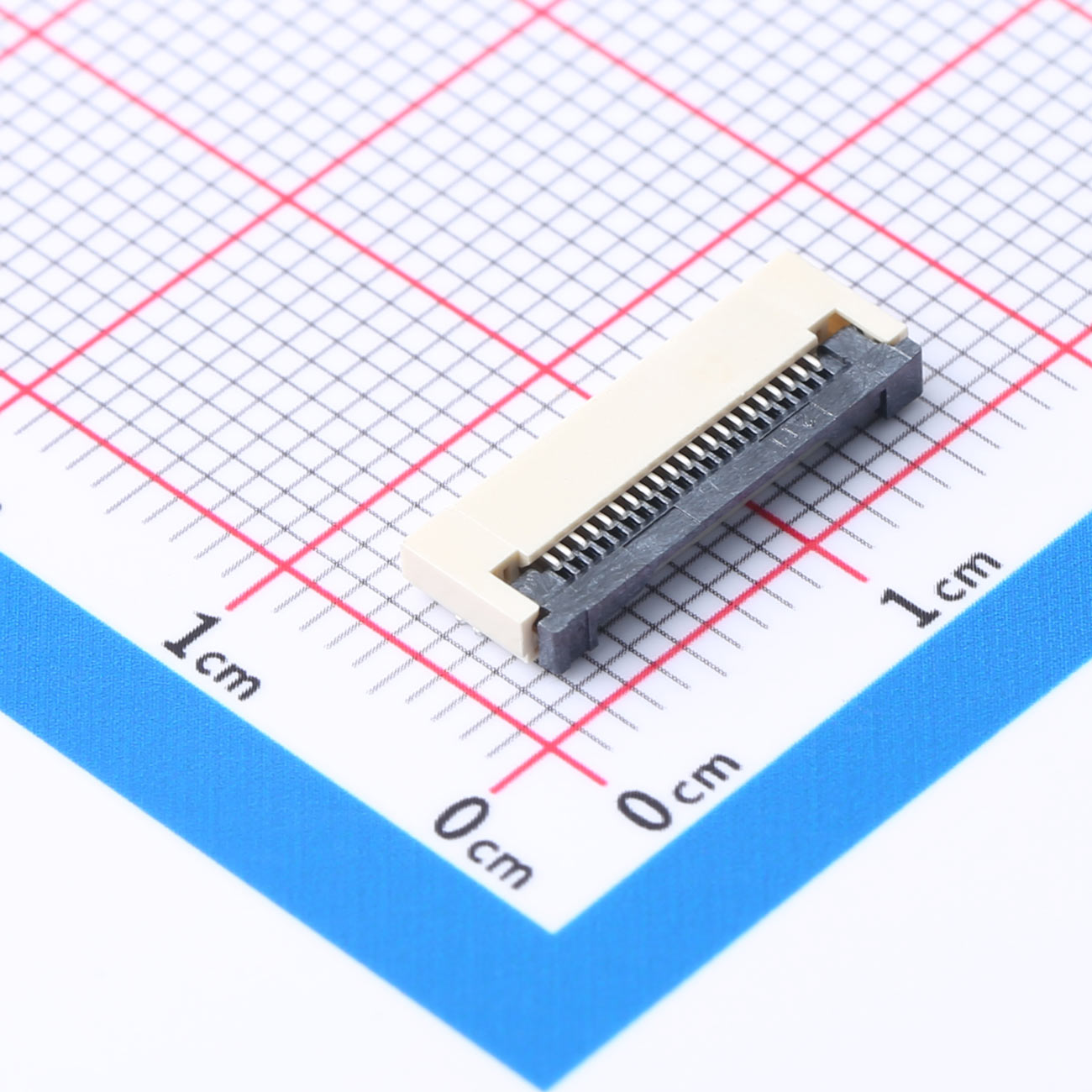

The Kinghelm FPC Connector KH-FG0.5-H2.0-21P-SMT is a high-quality connector designed for use in various electronic devices. It features a smooth and defect-free plastic surface, a temperature range of -25°C to 85°C, a rated voltage of 50V AC/DC, a contact resistance of ≤0.03 ?, and an insulation resistance of ≥500M ?. This connector is suitable for use in PCB layout and is designed for surface mount technology (SMT) for easy installation.

Product Features:

--Smooth and defect-free plastic surface

--Temperature range of -25°C to 85°C

--Rated voltage of 50V AC/DC

--Contact resistance of ≤0.03 ?

--Insulation resistance of ≥500M ?

--21 pins with a pitch of 0.5mm

--Surface mount technology (SMT) for easy installation

--Suitable for use in PCB layout

Product Specifications:

Model	KH-FG0.5-H2.0-21P-SMT
Material	Plastic
Number of Pins	21
Pitch	0.5mm
Mounting Type	Surface Mount
Orientation	Horizontal
Connection Type	Bottom

Application Fields:

The Kinghelm FPC Connector KH-FG0.5-H2.0-21P-SMT is suitable for use in various electronic devices, including smartphones, tablets, laptops, and other portable devices. It is ideal for use in PCB layout, making it a versatile connector for a wide range of applications.

Brand Certificate:

Kinghelm is a trusted brand in the electronic components industry, known for its high-quality products and reliable performance. The KH-FG0.5-H2.0-21P-SMT connector is backed by the Kinghelm brand certificate, ensuring its quality and performance.

Product Packaging:

The KH-FG0.5-H2.0-21P-SMT connector is packaged in a secure and durable packaging to ensure safe delivery. The packaging includes the connector and any necessary documentation or instructions for use.
