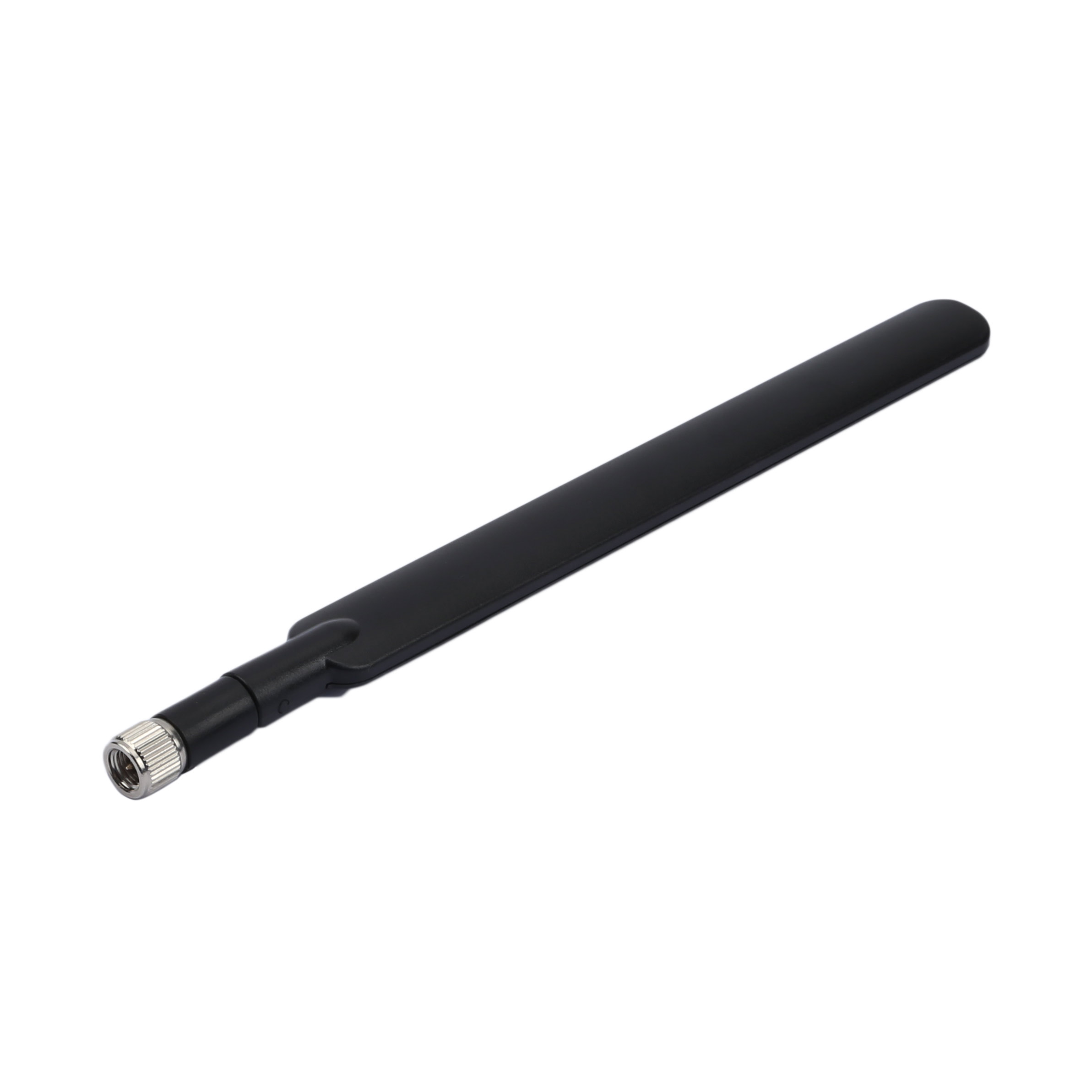

4G Antenna | SMA Male Pin, L=190MM, 700-960MHz & 1710-2690MHz
Explore our 4G flat black antenna with SMA male pin connector, featuring a length of 190mm. It operates efficiently across two frequency ranges: 700-960MHz and 1710-2690MHz, with a 50Ω impedance and specific S.W.R. ratings (3.0≤700-960MHz, 2.5≤1710-2690MHz). Designed for vertical polarization, it offers 1.0dBi±0.5 gain at 700-960MHz and 2.0dBi±0.5 gain at 1710-2690MHz. Equipped with an SMA male connector and compatible with RG178 RF cable, this antenna is ideal for various 4G applications requiring reliable performance and broad frequency coverage.
Frequency range: 700–960 MHz, 1710–2690 MHz
Impedance: 50Ω
S.W.R.: 3.0≤700~960MHz, 2.5≤1710~2690MHz
Polarization: Vertical
Gain: 1.0dBi±0.5@700~960MHz, 2.0dBi±0.5@1710~2690MHz
Connect type: SMA male connector
RF cable model: RG178
Product Benefits
●Wide Frequency Range
●Low Standing Wave Ratio
●Vertical Polarization
●Compact Design
●High Gain
Product Applications
●Telecommunication Networks
●Wireless Internet Access
●IoT Devices
●Mobile Devices
●Industrial Applications
