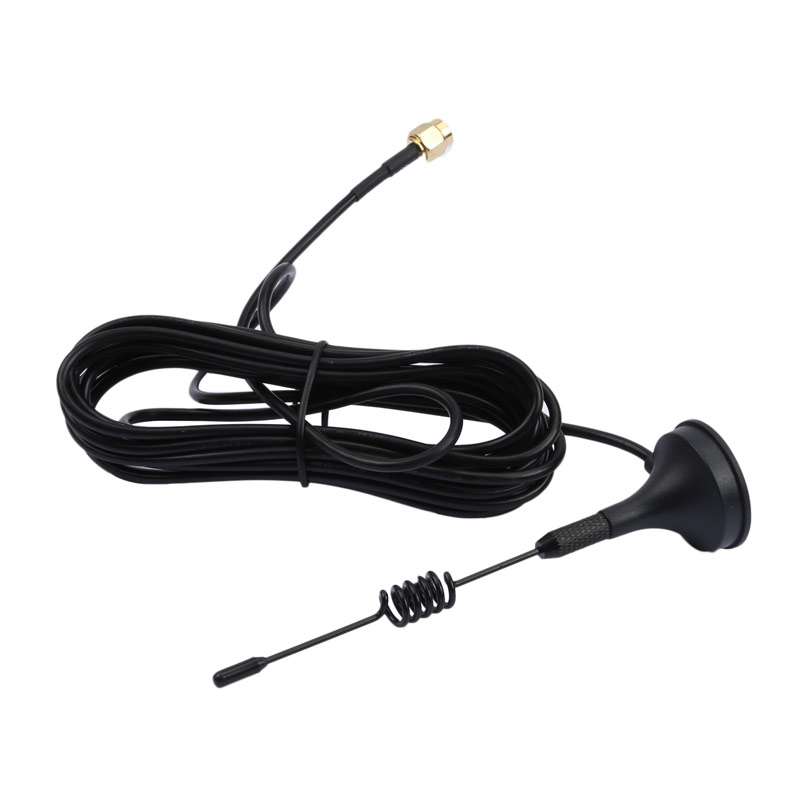

Kinghelm SMA Male to Male Pin Suction Antenna RG174 L=3m - KH-LORA470-490-3M

Kinghelm's brand products KH series include Beidou GPS antenna, RF connector, electrical data signal connector, terminal, plug-in unit and the three categories: customized automobile and motorcycle wiring harness, industrial medical connector as well as special antenna connector. Kinghelm begins with providing Beidou GPS dual-mode antenna, IPEX terminal and RF connector , and its product categories have expanded a lot, such as series antennas for WiFi, Bluetooth, NB-IoT, LORA, Zigbee, UWB and GSM communication antennas, RFID tag, RF patch cords, GJB RF connectors, microwave antennas, auto SMA and SMB, FAKRA RF connectors, and coaxial cables.

Frequency Range: 470~490MHz

Impedance: 50Ω

Gain: 2 dBi

RF Cable: RG174

Connect Type: SMA Male

Operating Temperature: -40℃~85℃

Storage Temperature: -40℃~80℃

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Overview:

KH-LORA470-490-3M is a LORA antenna with a frequency range of 470~490MHz. It features vertical polarization and a gain of 2.0dBi±0.5. It is suitable for various application fields and has outstanding performance and stable operating temperature range.

Product Features:

1. Frequency Range of 470~490MHz

2. Vertical Polarization

3. A Gain of 2.0dBi±0.5

4. Black Color Design, Simple and Elegant Appearance

5. RG174 RF Cable

6. SMA Male Connector

Technical Specifications:

- Impedance: 50Ω

- Voltage Standing Wave Ratio: ≤2.0

- Polarization Form: Vertical Polarization

- Return Loss: -9.2dB Max

- RF Cable Model: RG174, black color

- Operating Temperature: -40~85℃

- Storage Temperature: -40~80℃

Application Fields:

1. Internet of Things (IoT) applications

2. Remote monitoring systems

3. Wireless communication equipment

4. Industrial automation

5. Agricultural wireless sensor networks

6. Security systems

7. Data collection and transmission
