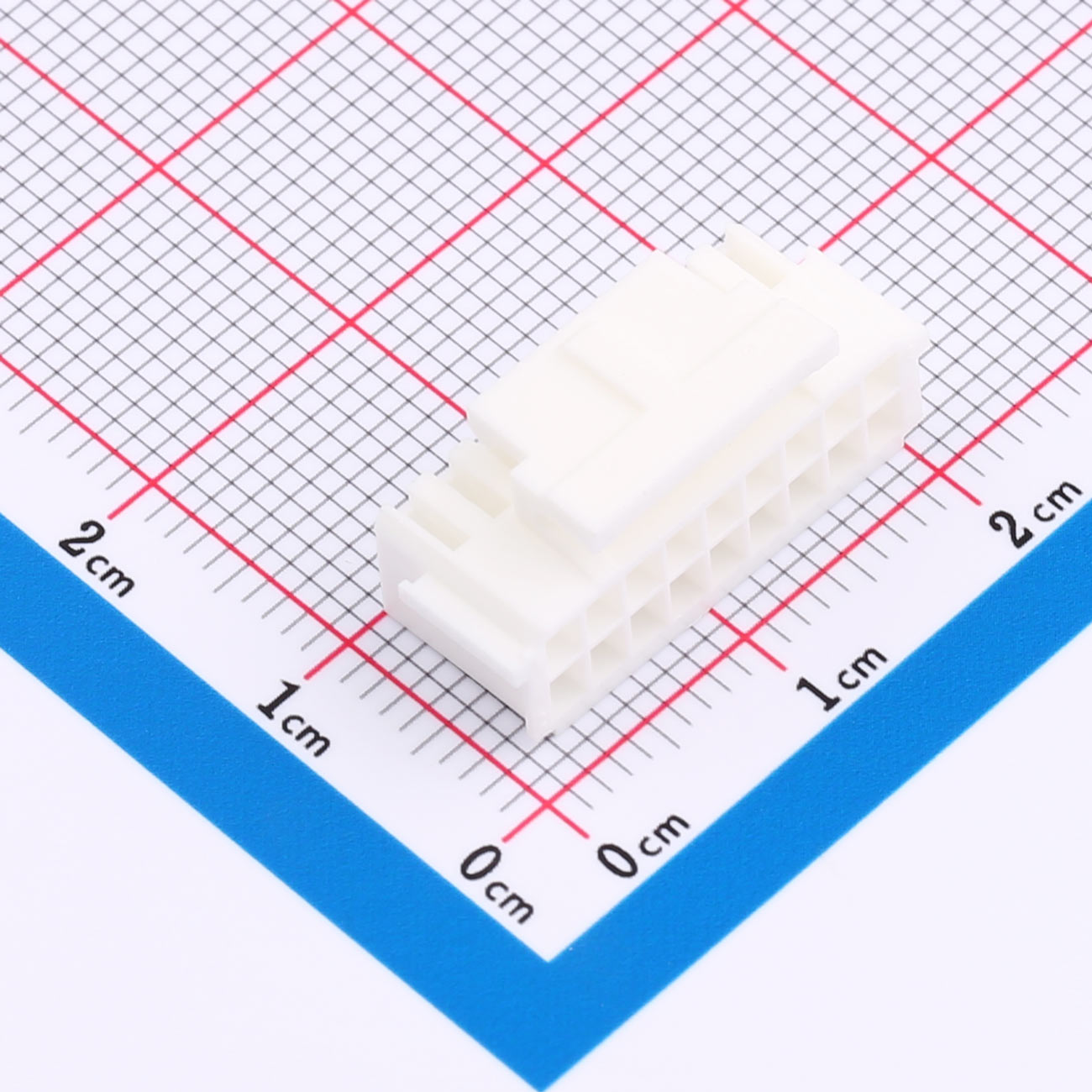

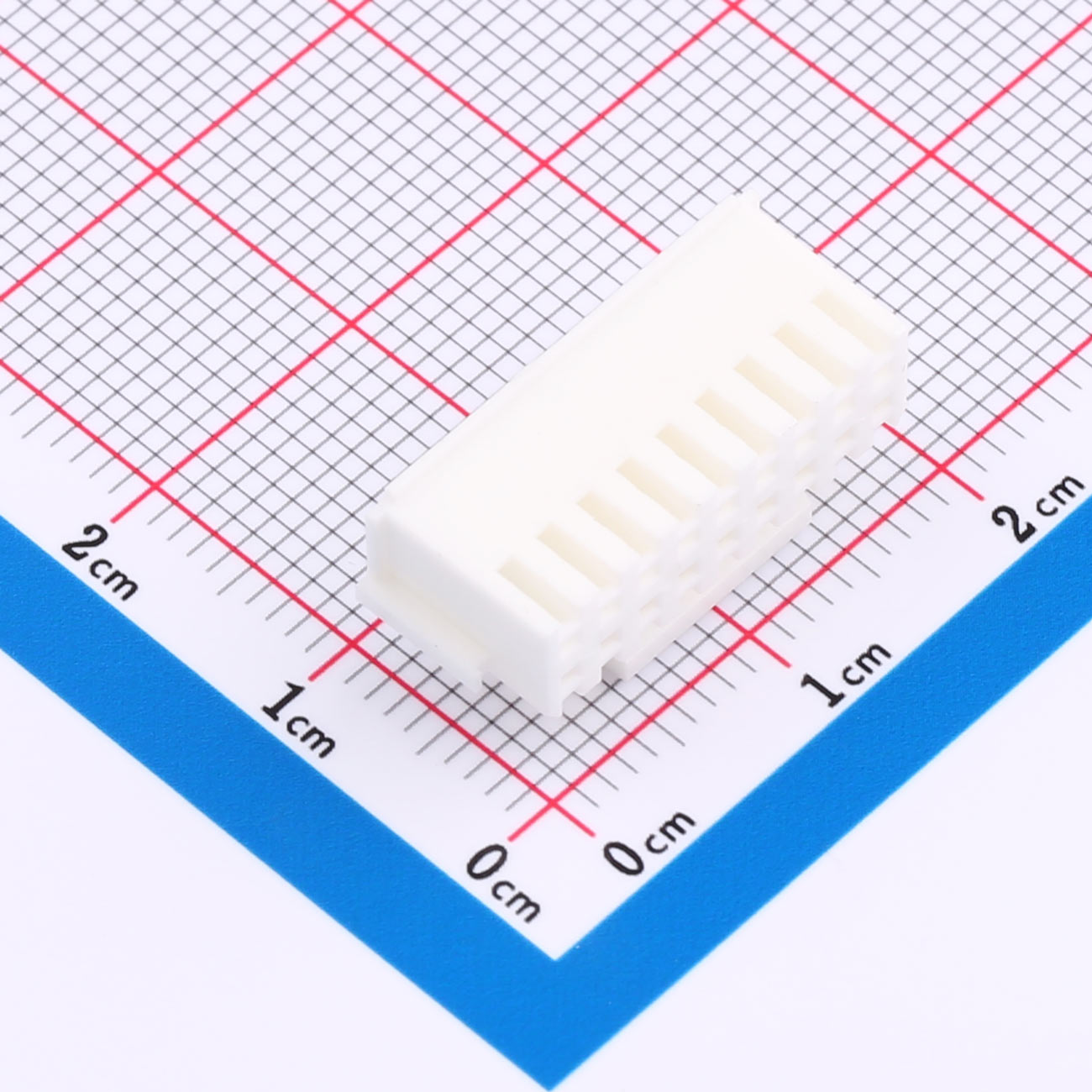

Crimp Terminal Shell, 2mm Pitch, 2x9P, KH-A2009-2X09Y

Product Benefits● Minimal insertion force● Good thermal resistance● Long-term performance stability●

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25°C to +85°C

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 1000MΩ

Withstanding Voltage: 800V AC/minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Minimal insertion force
● Good thermal resistance
● Long-term performance stability
● Moisture resistant housing
● Compact wiring solution

Product Application
● Wearable devices
● Network switchboards
● Embedded computing systems
● E-bikes
● Digital signage displays

Name

Title

Description

KH-A2009-2X09Y.pdf

Datasheet
