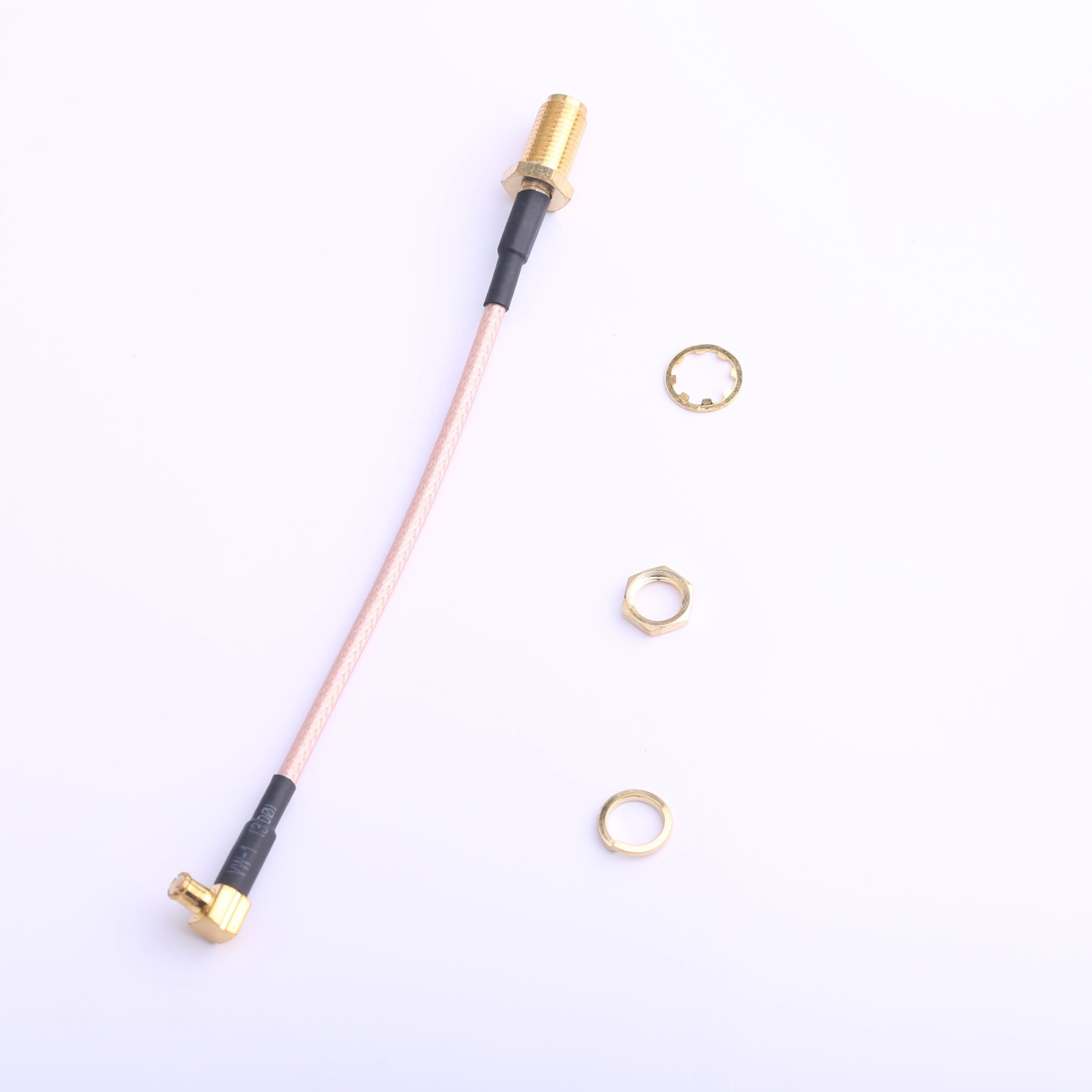

RF Cable Assembly, MCX to SMA, RG316, 100mm, KHB(RG316)-MCX-100-28
Product Benefits● High-quality RG-316 cable for low-loss RF transmission● Gold-plated SMA and MCX co
Input/Output：MCX to SMA
Connector: SMA 11-thread female jack with female pin, gold-plated
Sleeve: OD 2.0mm, Length 15mm, thin sleeve
Connector: MCX right-angle male plug, male pin, gold-plated
Coaxial Cable: RG-316 Brown Cable, OD: 2.5mm
Product Benefits
● High-quality RG-316 cable for low-loss RF transmission
● Gold-plated SMA and MCX connectors for reliable signal and durability
● Right-angle MCX plug ideal for compact or angled installations
● Slim SMA sleeve (OD 2.0mm, L=15mm) fits narrow spaces
● 100mm length for ultra-short, clean cable routing
Product Applications
● Compact RF modules and wireless systems
● IoT devices with limited internal space
● GPS, Wi-Fi, and antenna interconnections
● RF testing in lab or production environments
● Surveillance, tracking, and navigation hardware
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
