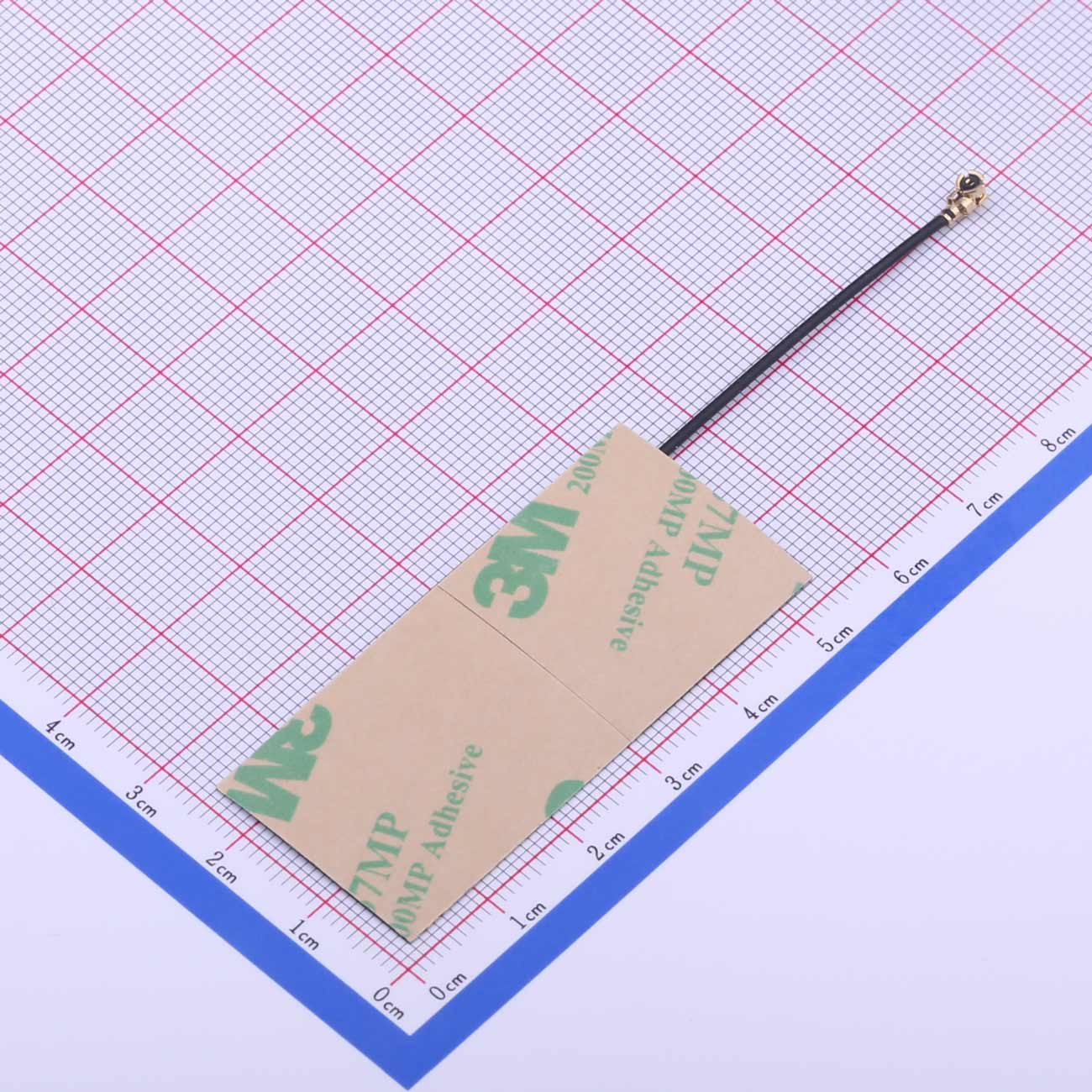

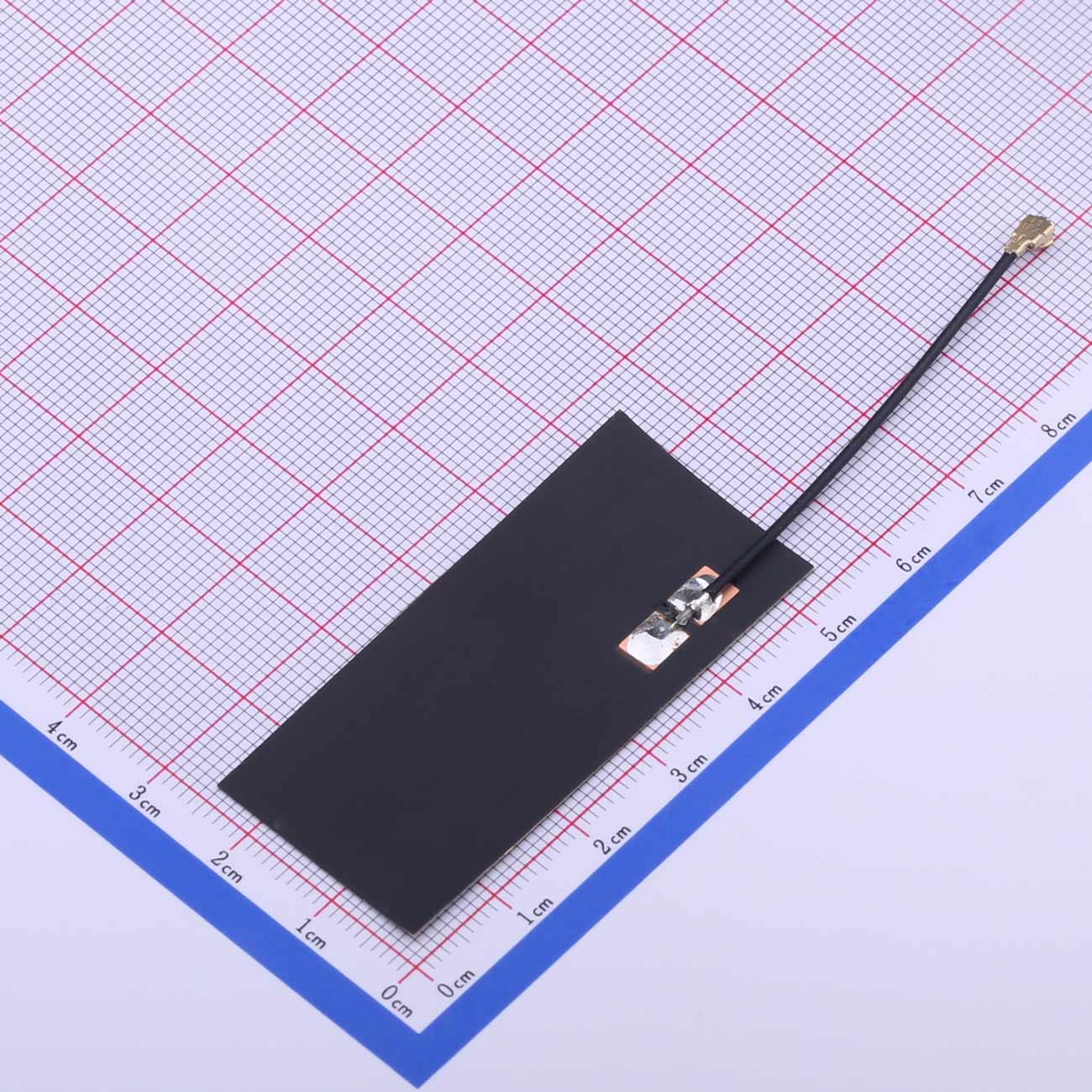

PCB Antenna|2400-2500MHZ |3 dBi|Omnidirectional|KH-(2400)-K504-JB
Explore the KH-(2400)-K504-JB PCB antenna, optimized for 2400-2500MHz frequencies with 3 dBi gain. Featuring vertical polarization and omnidirectional radiation, it ensures reliable connectivity in all directions. With a V.S.W.R. of ≤2.0 and capable of handling up to 10W, this antenna is ideal for wireless applications requiring high-performance and compact design.
V.S.W.R: ≤2.0
Polarization: Vertical
Radiation:Omnidirectional
Max Power:10W
Connector: IPEX
Product Benefits
●Reliable wireless connectivity in the 2400-2500MHz frequency range.
●Minimized interference for stable communication.
●Ideal for IoT devices, wireless routers, and communication modules.
●Ensures seamless signal transmission and reception.
Product Advantages
●Vertical polarization for optimized signal performance.
●Omnidirectional radiation pattern for coverage in all directions.
●Low V.S.W.R. (≤2.0) ensures efficient power transfer.
●Capable of handling up to 10W of power.
●Compact design suitable for space-constrained applications.
●Easy integration with IPEX connector.
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
