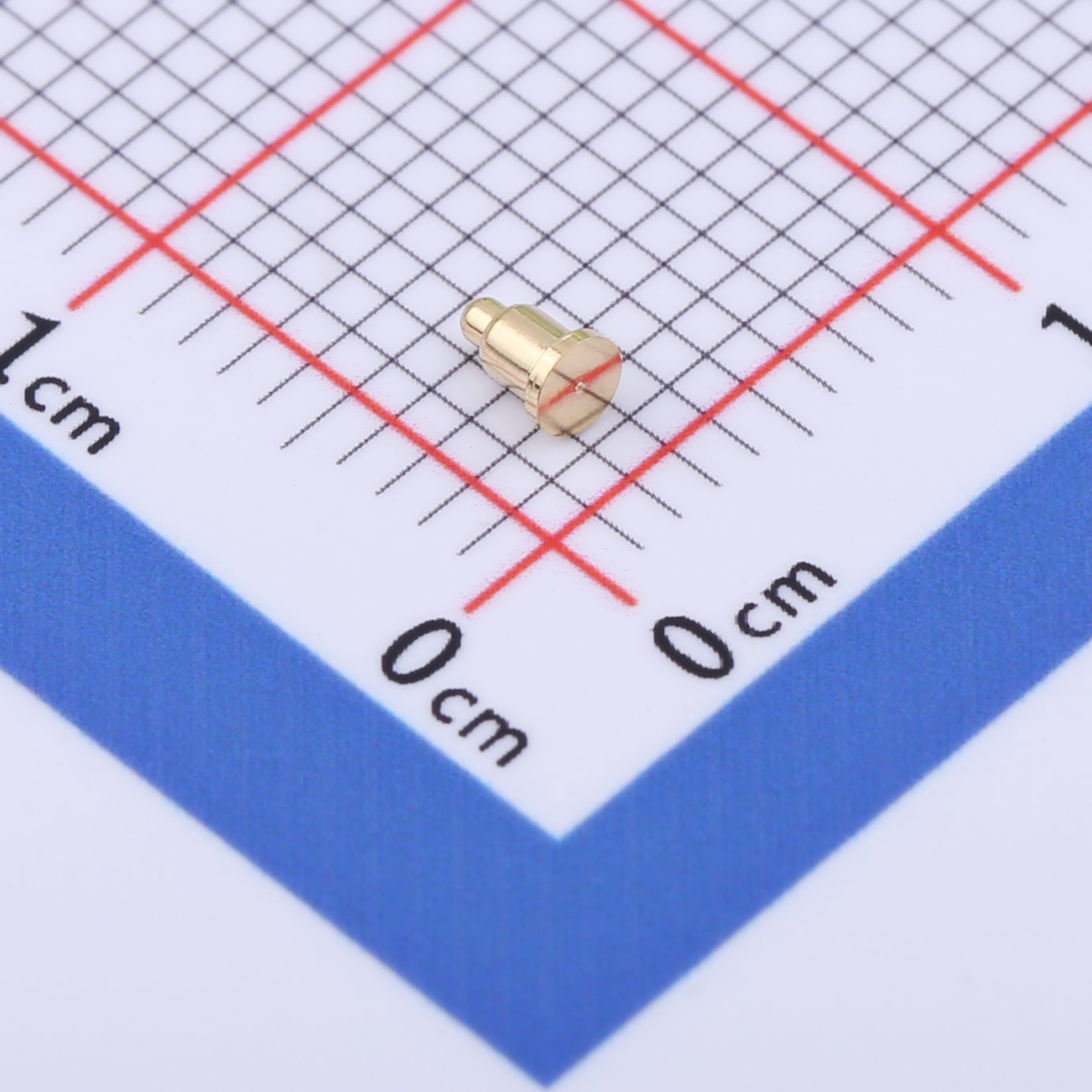

Pogo Pin Spring Probe Connector KH-PG203004-DZ

1. Material and Plating:● Pin Cylinder: Brass alloy, nickel-plated 50-60μ", gold-plated 1μ&quot

Brand: Kinghelm

Operating Current: 1.0A

Operating Voltage: Below 12V @ 25°C

Gross Weight: 0.023g(g)

Packaging: Bag

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

1. Material and Plating:

● Pin Cylinder: Brass alloy, nickel-plated 50-60μ", gold-plated 1μ"
● Pin Head: Brass alloy, nickel-plated 50-60μ", gold-plated 1μ"

2. Operating Current:
● 1.0A

3. Operating Voltage:
● Below 12V @ 25°C

4. Salt Spray Test:
● No corrosion after 24 hours in a 5% salt solution

5. Solderability Test:
● Wetting solder at 230 ± 5°C for 1 second, with solder coverage rate above 95%
