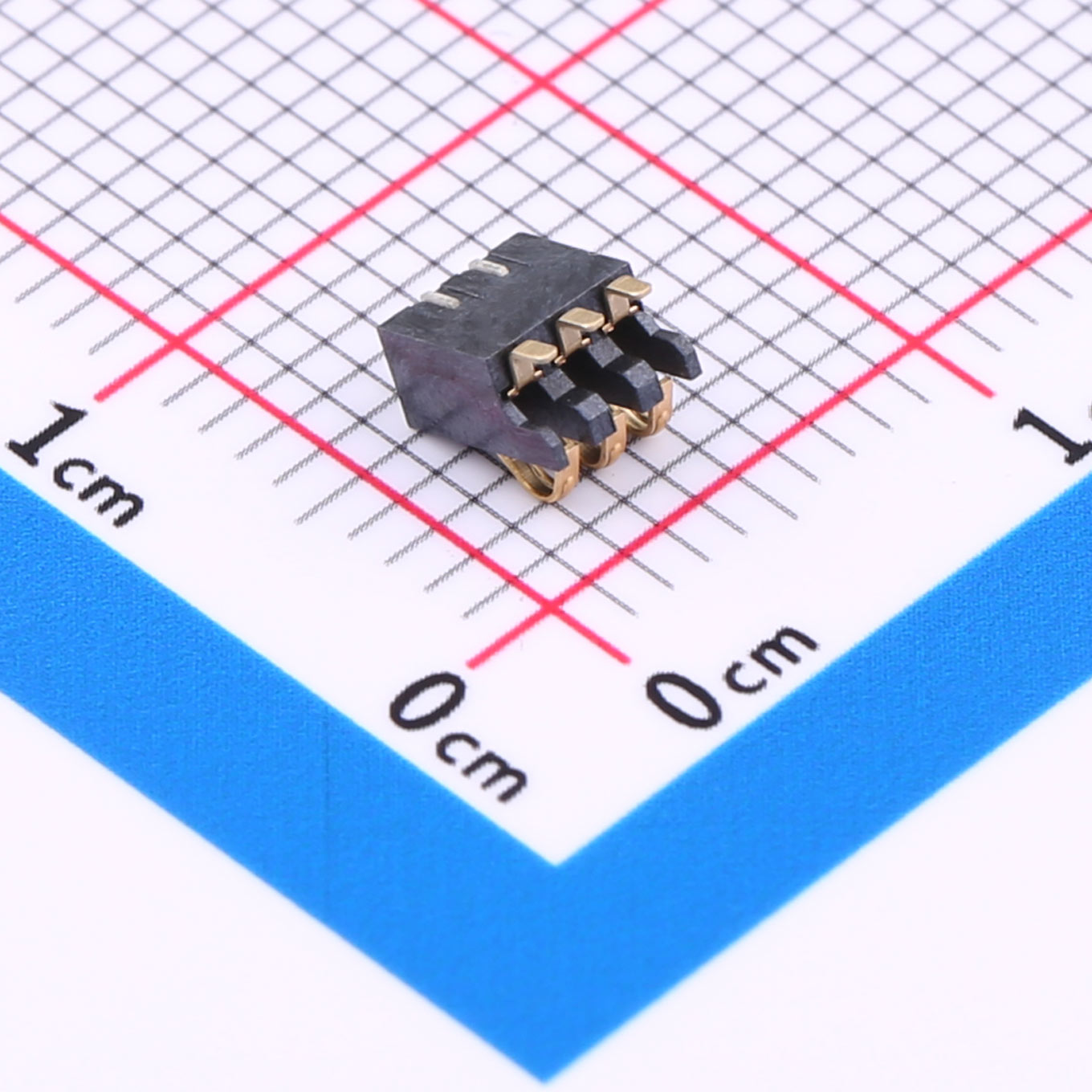

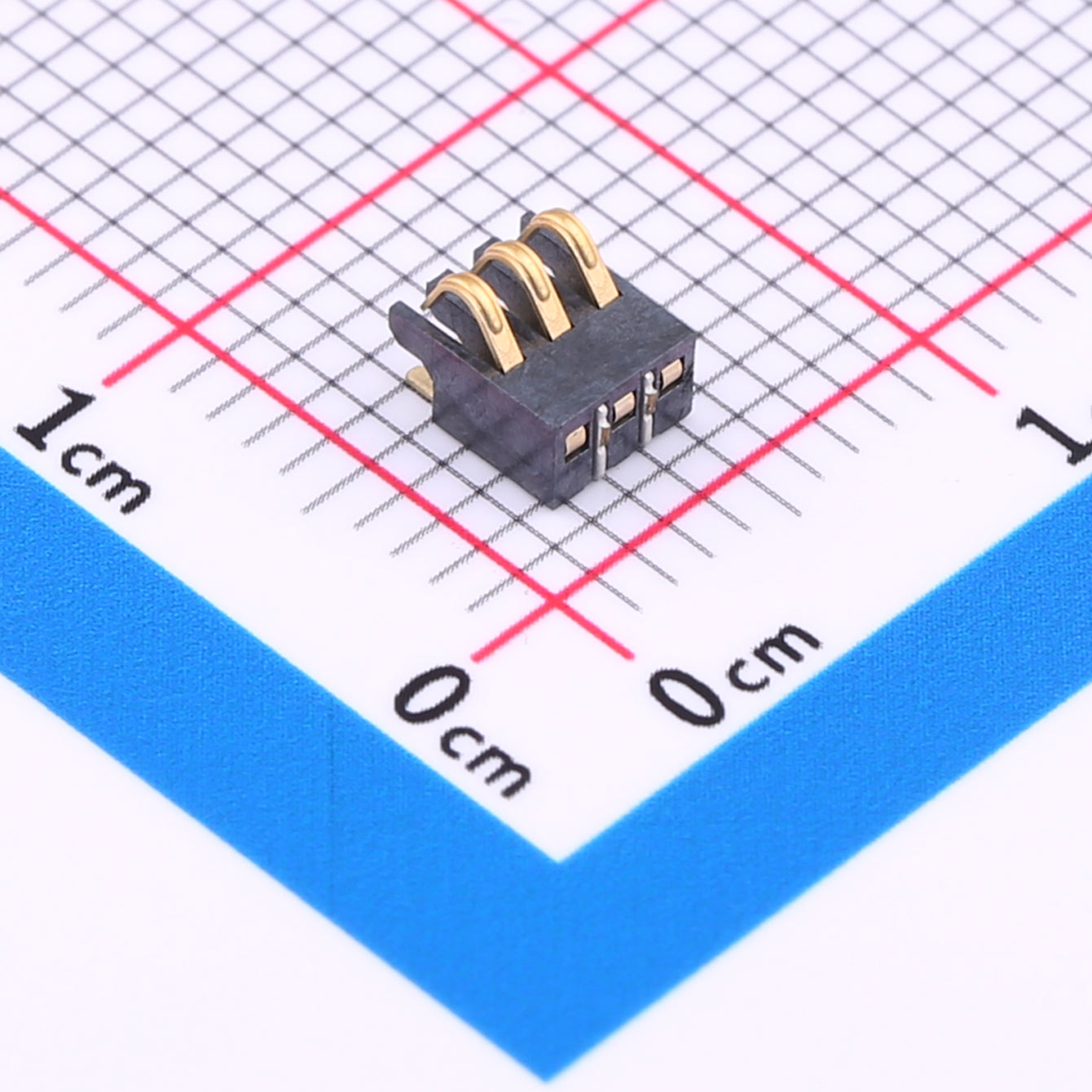

Button And Strip Battery Connector, SMD, KH-12701-3P225

Product Benefits● Compact surface-mount design● Rated voltage 12V● Low contact resistance (up to 30

Rated current: 1.0 A

Rated voltage: 12 V

Withstand voltage: 500 V

Contact resistance: 30 mΩ MAX

Insulation resistance: 500 MΩ

Operating temperature: -40°C to +85°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Compact surface-mount design
● Rated voltage 12V
● Low contact resistance (up to 30 mΩ)
● High insulation resistance (500 MΩ)
● Wide operating temperature range -40°C to +85°C
● Reliable at 1.0A rated current
● Withstands up to 500V

Product Application
● Power supply connections
● Consumer electronics
● Home appliance wiring
● Industrial machinery
● Communication systems
