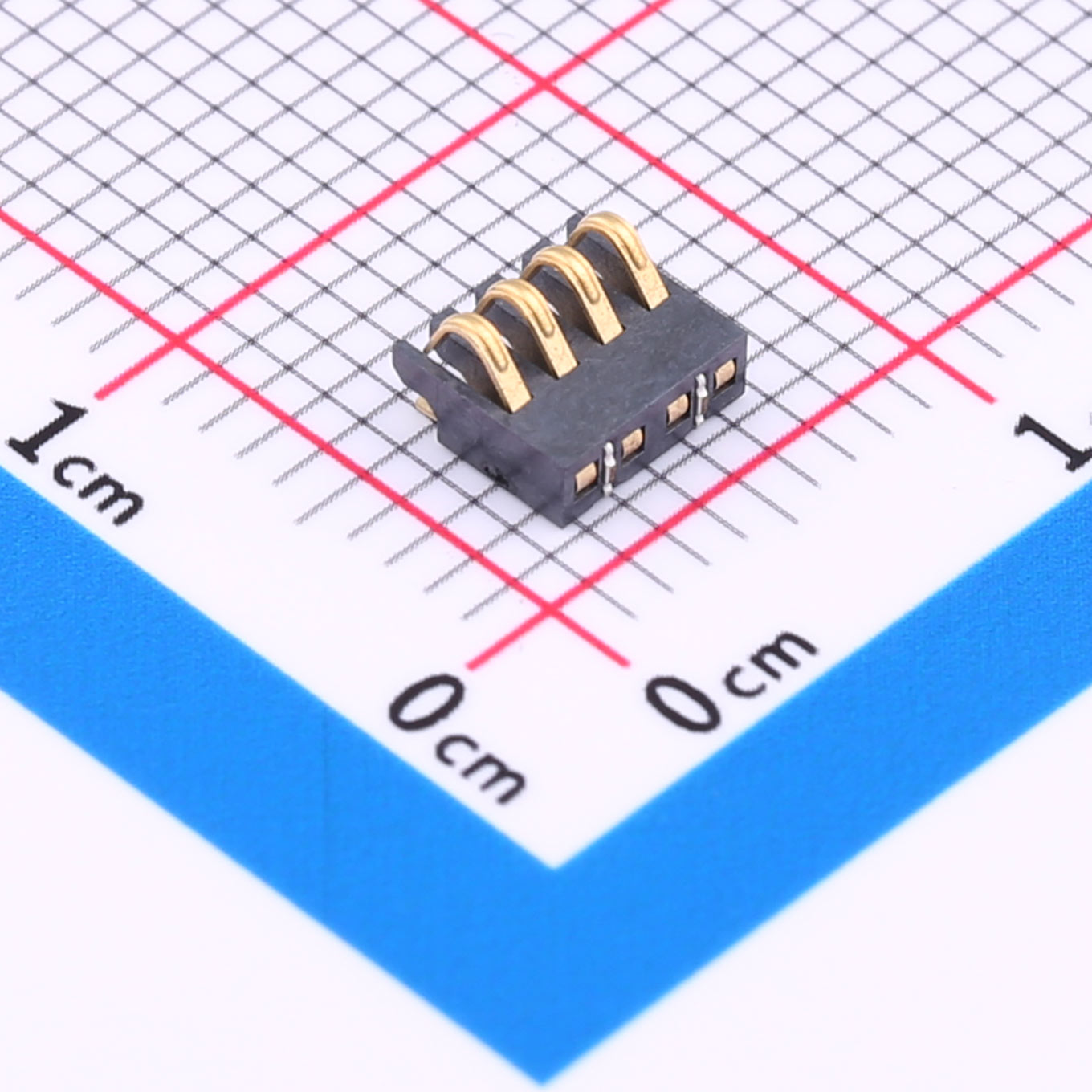

Button And Strip Battery Connector, SMD, KH-12701-4P170

Product Benefits● Compact SMD design● Rated for 12V voltage● Low contact resistance (max 30 mΩ)● Hig

Rated current: 1.0 A

Rated voltage: 12 V

Withstand voltage: 500 V

Contact resistance: 30 mΩ MAX

Insulation resistance: 500 MΩ

Operating temperature: -40°C to +85°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Compact SMD design
● Rated for 12V voltage
● Low contact resistance (max 30 mΩ)
● High insulation resistance (500 MΩ)
● Operating temperature range from -40°C to +85°C
● 1.0A rated current capacity
● Withstands up to 500V

Product Application
● Power connection in electronic devices
● Household appliance connections
● Industrial equipment wiring
● Communication device connectors
● Automotive power connections
