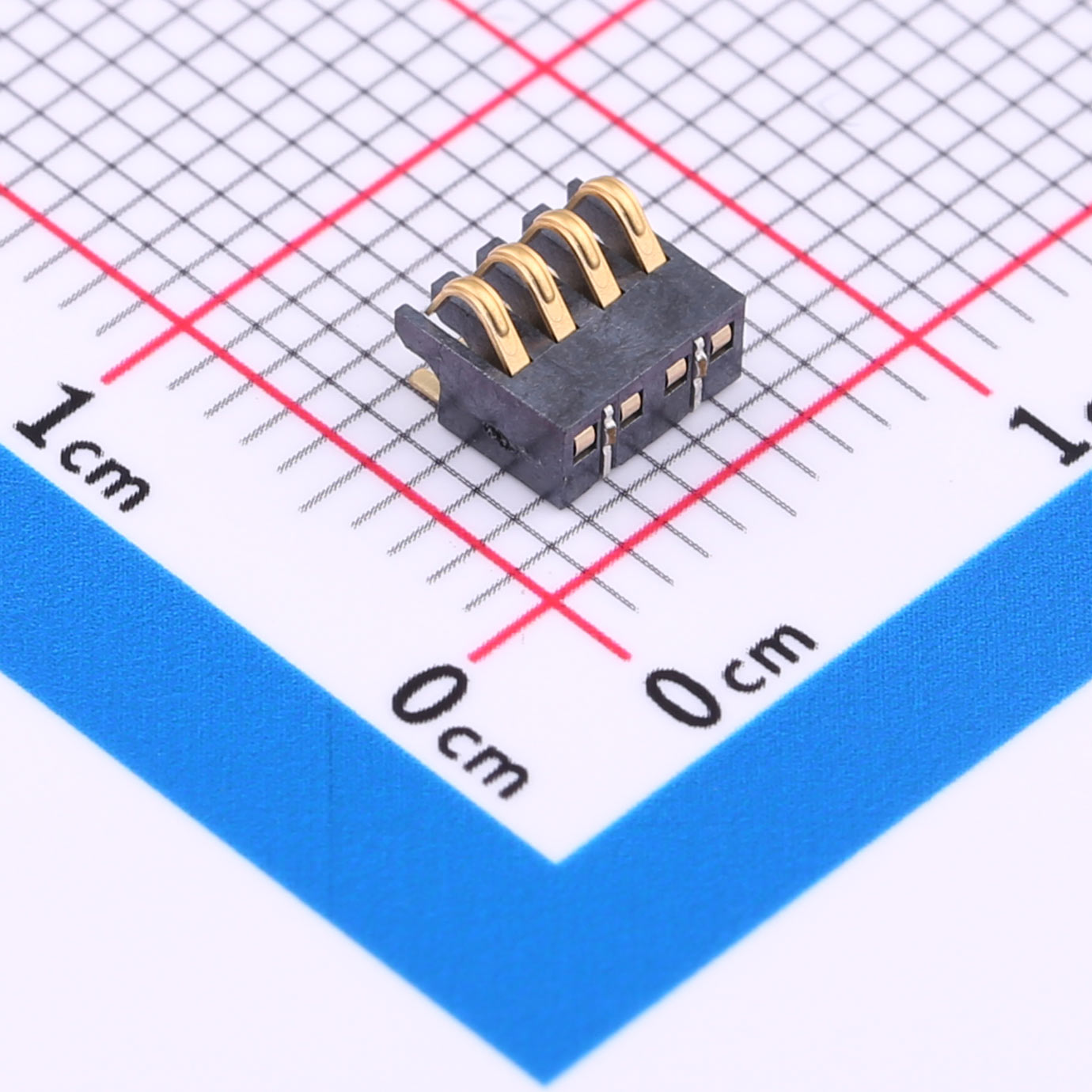

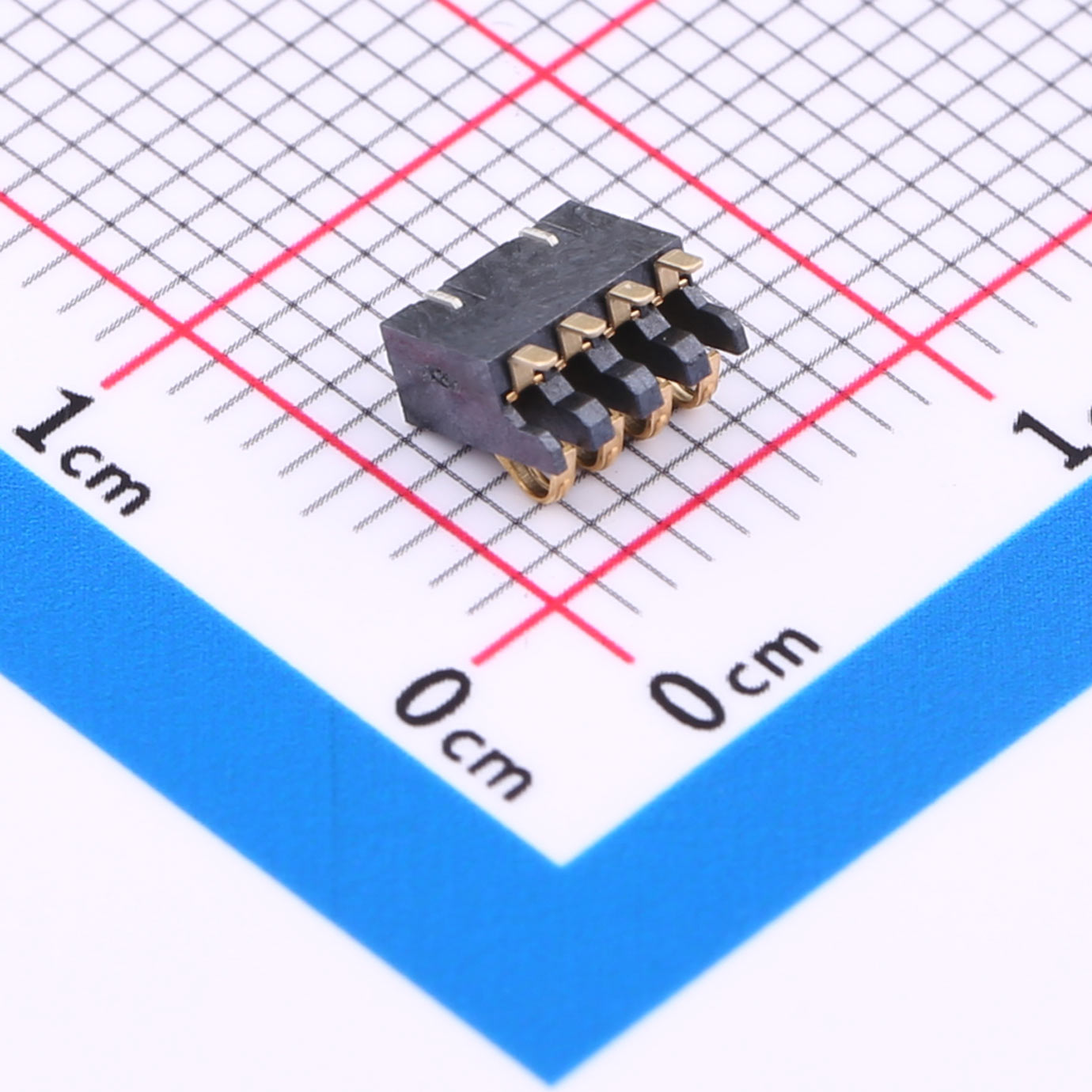

Button And Strip Battery Connector, SMD, KH-12701-4P225

Product Benefits● Compact and efficient design● Rated for 12V voltage● Low contact resistance (max 3

Rated current: 1.0 A

Rated voltage: 12 V

Withstand voltage: 500 V

Contact resistance: 30 mΩ MAX

Insulation resistance: 500 MΩ

Operating temperature: -40°C to +85°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Compact and efficient design
● Rated for 12V voltage
● Low contact resistance (max 30 mΩ)
● High insulation resistance (500 MΩ)
● Wide temperature range (-40°C to +85°C)
● Suitable for 1.0A current
● Withstands up to 500V

Product Application
● Power connection in electronics
● Used in household electronics
● Industrial machinery wiring
● Automotive systems
● Communication equipment
