Discover our premium range of FFC/FPC connectors designed for reliable and high-speed connectivity in various electronic applications. Ideal for low-profile designs, our connectors ensure seamless integration with flexible flat cables, offering durability and performance. Explore our custom options to meet your specific needs.

Current Rating: 0.5A/PIN

Voltage Rating: 50V (AC/DC)

Insulation Resistance: 500MΩ Min

Contact resistance: Initial value 30MΩ Max.

Operating Temperature: -40°C ~ +85°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

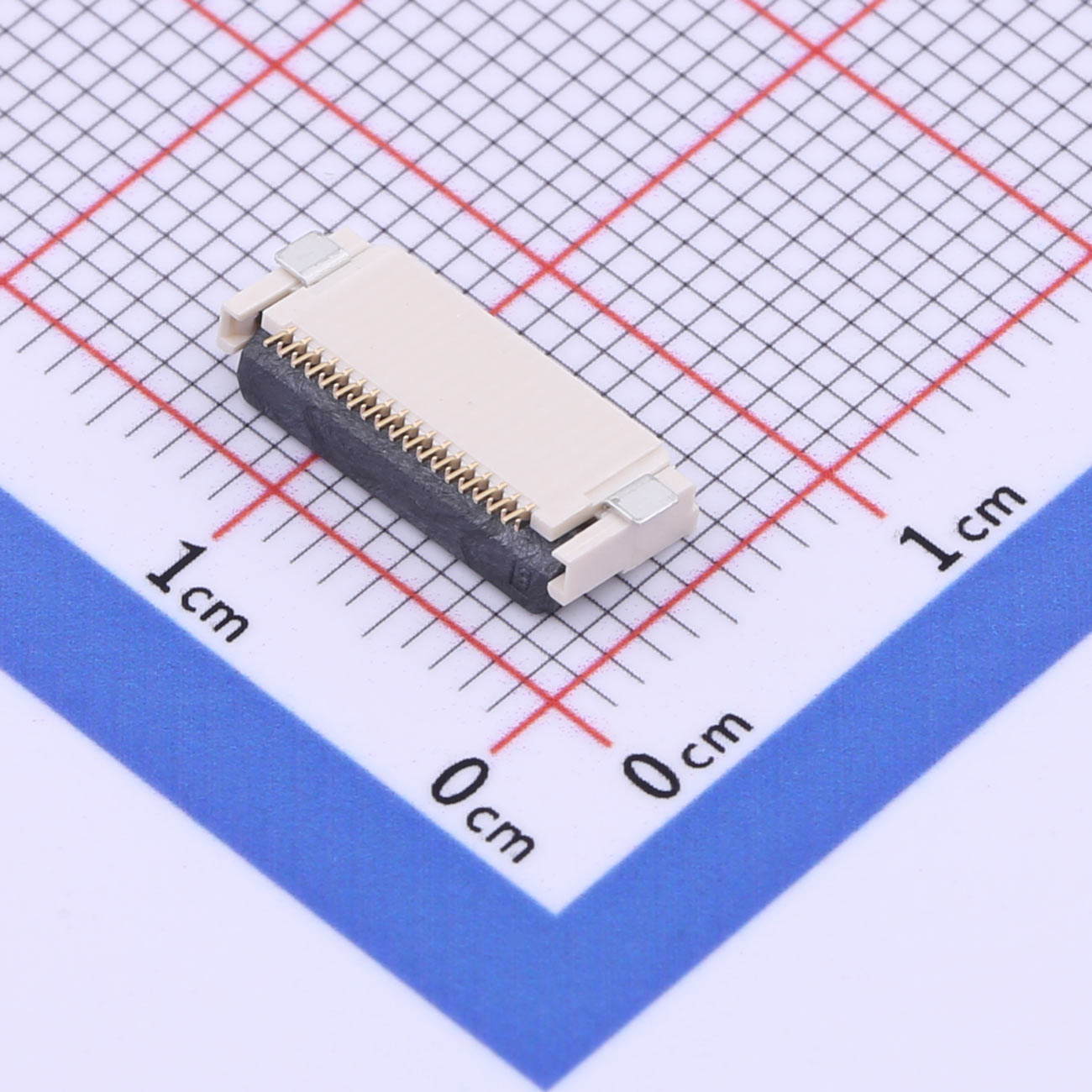

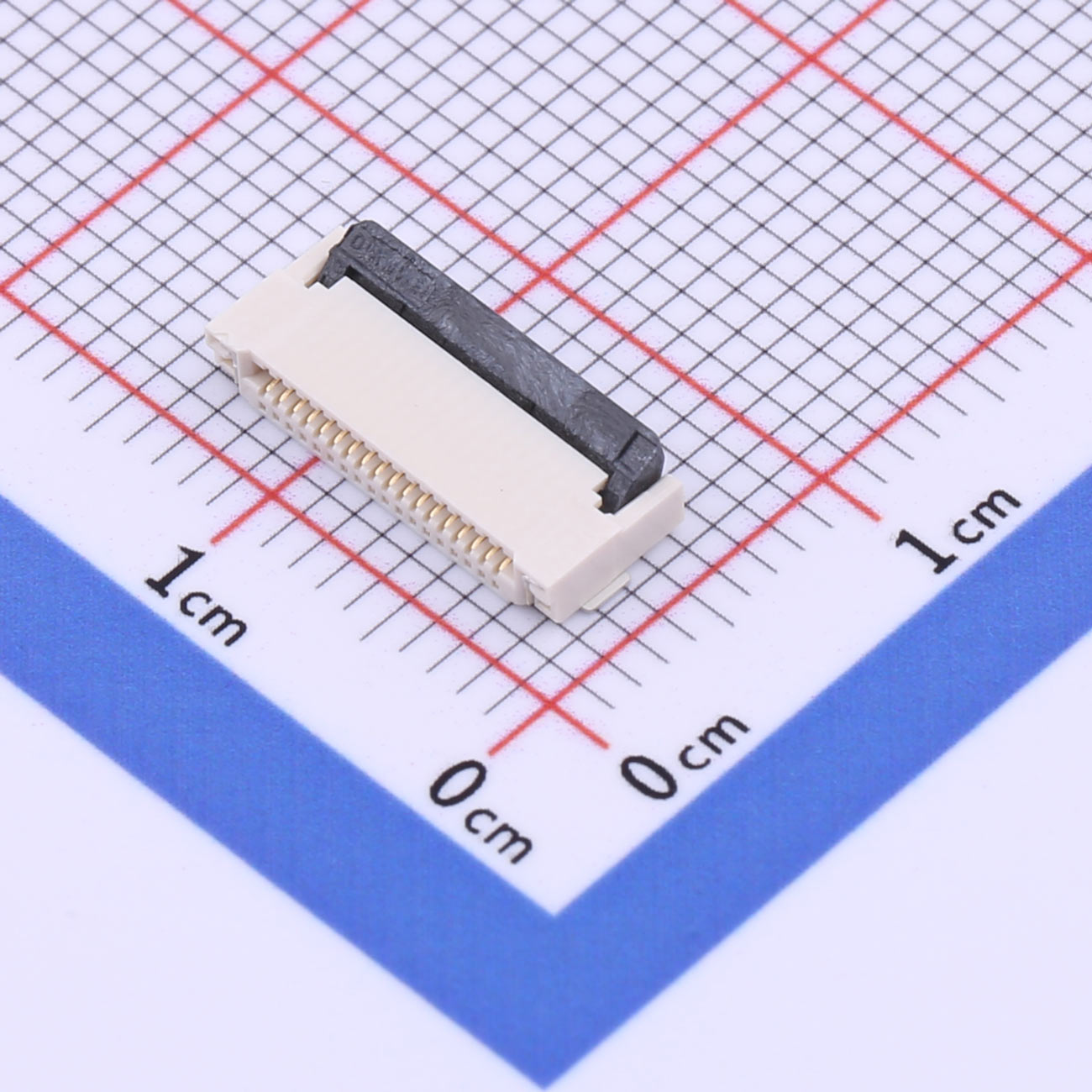

●0.5mm Pitch: Space-efficient design

●18-Pin Configuration: Versatile connection options

●H2.0 Surface Mount Compliance: Standardized for easy integration

●Durable Materials: Ensures long-lasting performance

●Low Contact Resistance: Enhances signal stability

Product Benefits

●Compact Design: Facilitates easy integration into various devices

●Simple Installation: Saves time during assembly

●Reliable Connections: Minimizes risk of failures

●Optimized Signal Performance: Ensures accurate data transmission

●Wide Applicability: Suitable for diverse applications

Product Applications

●Smartphones,Tablets,Wearable Devices

●Automotive Electronics,Medical Devices

●Industrial Automation,Aerospace Technology

●High-End Consumer Electronics
