Explore our ROHS compliant FFC/FPC connectors that ensure safe and sustainable electronic solutions. Request your free sample today and experience our high-quality, low-profile connectors designed for optimal performance in flexible flat cable applications. Perfect for various electronic projects and designs!

Current Rating: 0.5A/PIN

Voltage Rating: 50V (AC/DC)

Insulation Resistance: 500MΩ Min

Contact resistance: Initial value 30MΩ Max.

Operating Temperature: -40°C ~ +85°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

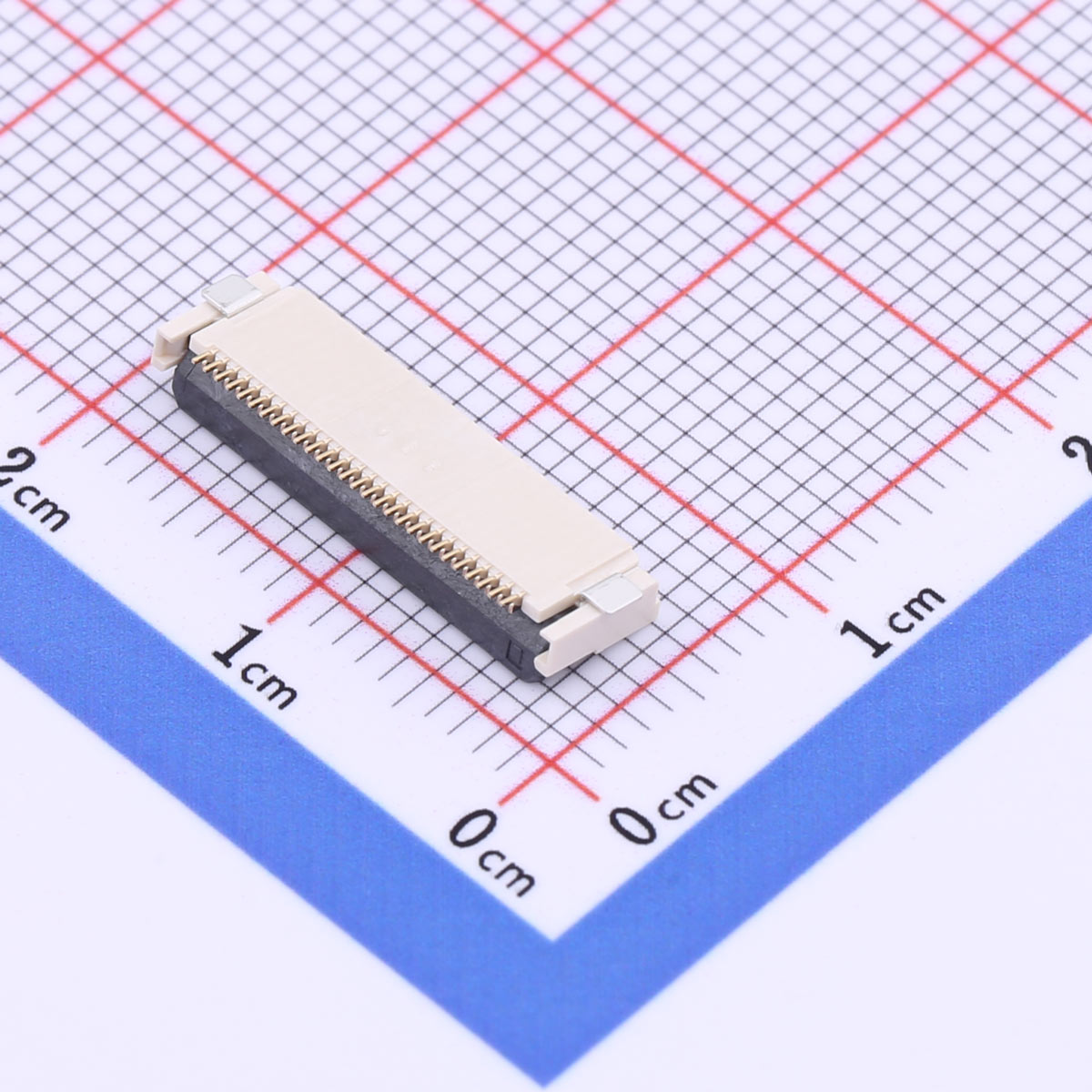

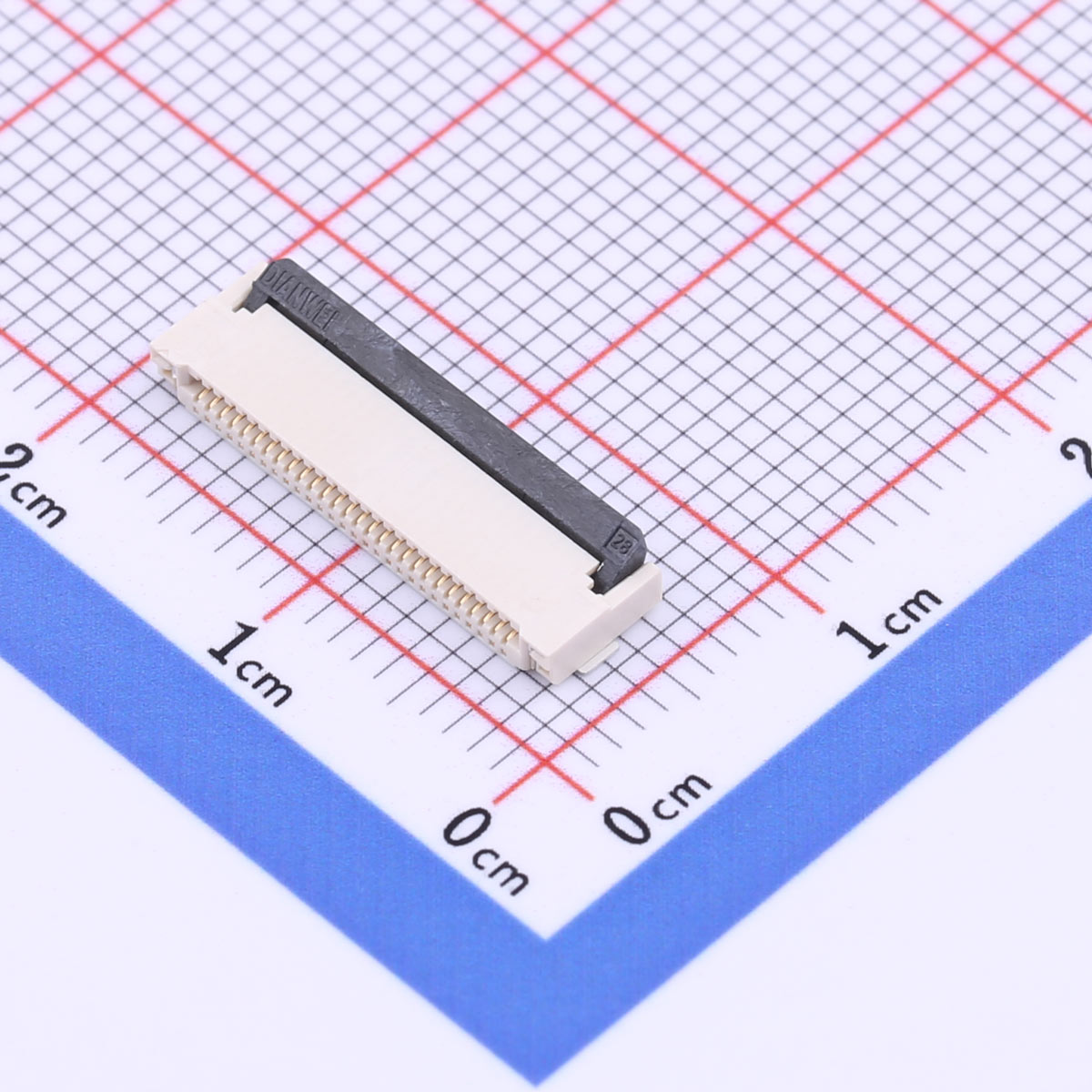

●Fine pitch of 0.5mm

●28-pin configuration

●Complies with H2.0 SMT standard

●QCHF for secure mating

●Surface mount technology

Product Benefits

●Space-saving design

●Easy installation and removal

●Robust and reliable connections

●Supports high-frequency signals

●Enhances product performance

Product Application

●Ideal for smartphones and tablets

●Suited for wearable devices

●Used in automotive electronics

●Perfect for medical instruments

●Ideal in industrial automation systems
