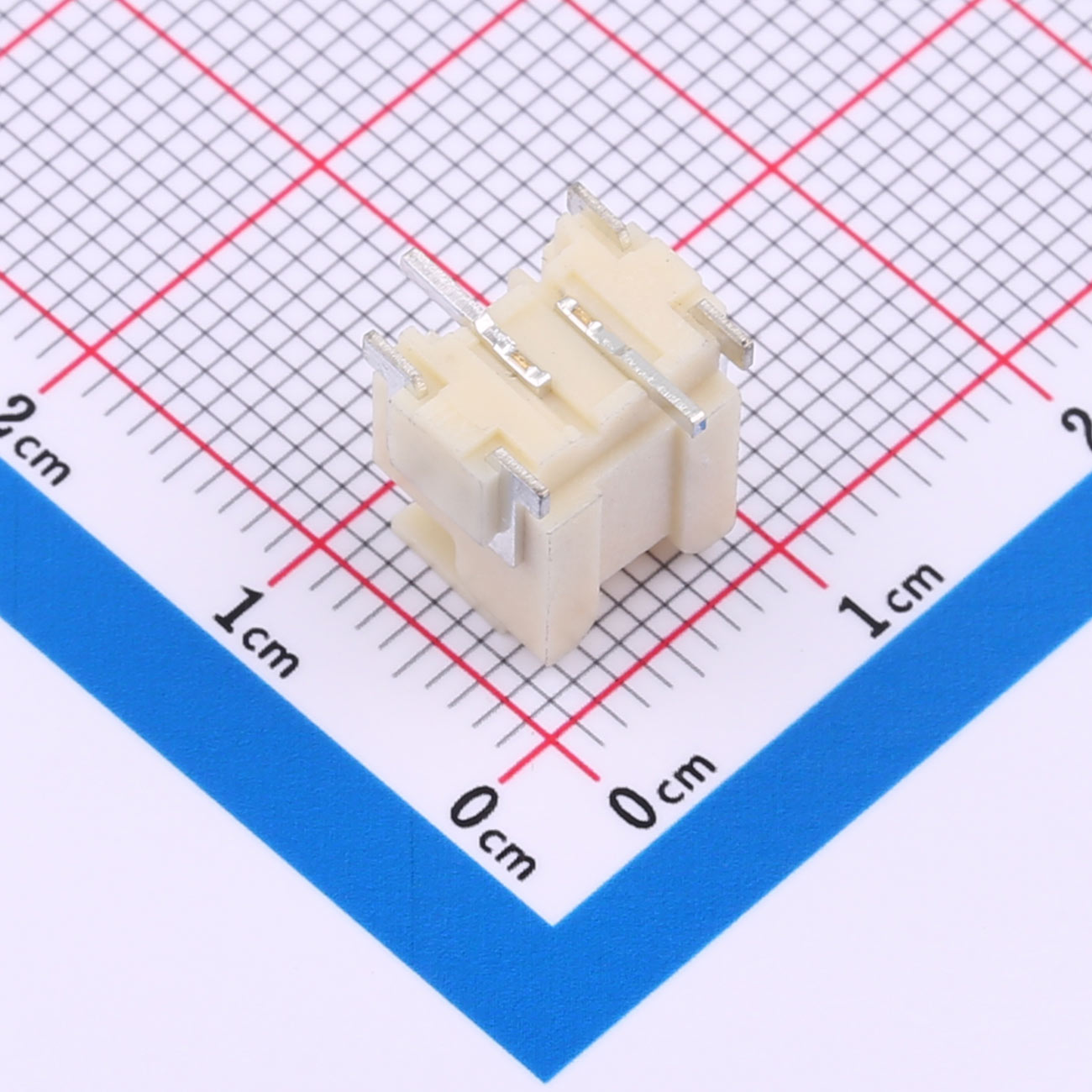

Screw Terminal Block, 1x2P, 2.5mm Pitch, Vertical Mount, KH-A2508-02AB

Product Description:●Current Rating: With a current rating of 3A for both AC and DC, the EHAA connec

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25°C to +85°C

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 1000MΩ

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

●Current Rating: With a current rating of 3A for both AC and DC, the EHAA connector can safely handle moderate electrical currents, making it ideal for low to medium-power applications.

●Voltage Rating: The connector is rated for up to 250V for both AC and DC operations, ensuring compatibility with a wide range of voltage requirements in electrical systems.

●Temperature Range: Operating within a temperature range of 25°C to +85°C, the EHAA connector maintains stable performance in diverse environmental conditions, from standard room temperatures to slightly elevated temperatures.

●Contact Resistance: The EHAA connector offers a maximum contact resistance of 20mΩ, ensuring minimal power loss and optimal conductivity for efficient electrical connections.

●Insulation Resistance: With a minimum insulation resistance of 1000MΩ, this connector provides excellent electrical insulation to prevent leakage currents and ensure safety in operation.

●Withstanding Voltage: The EHAA connector can withstand voltages of up to 1000V AC per minute, demonstrating robust dielectric strength and reliability in high-voltage applications.

●Material Composition: Constructed with high-quality materials, including Wafer PA6T and UL94V-0 PIN Brass Tin-plated, along with a C2680 Tin-plated fixed piece, the EHAA connector offers durability, corrosion resistance, and long-term performance.
