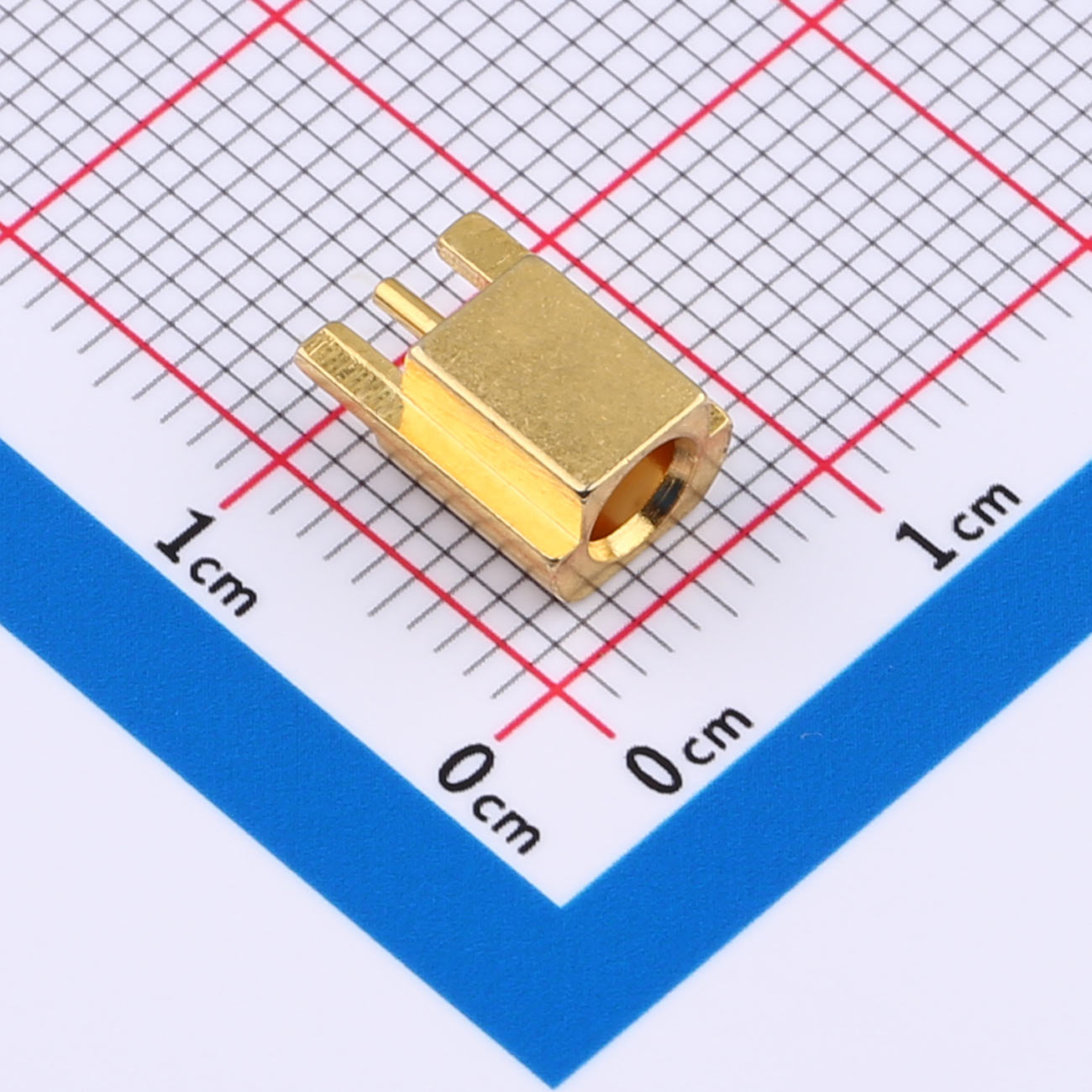

RF Connector, MCX Female Broken Board Type PCB Mount, DC~3GHz, KH-MCX-PBS
RF Connector, MCX Female Broken Board Type PCB Mount, DC~3GHz, KH-MCX-PBS
Impedance: 50Ω
Frequency Range: DC to 3GHz
Dielectric Withstanding Voltage: 500V
Insulation Resistance: ≥1,000MΩ
VSWR: 0-3GHz < 1.45
Product Features
● RF connector, MCX female broken board type
● PCB mount design
● Impedance: 50Ω
● Frequency range: DC to 3GHz
Product Benefits
● Compact size for space - constrained PCBs
● Good signal integrity in DC - 3GHz range
● High insulation resistance for reliable operation
● Low VSWR reduces signal reflection
● Withstands 500V for enhanced durability
Product Applications
● Wireless communication devices
● RF test equipment
● Mobile and portable electronics
● GPS and navigation systems
● Radar and sensor applications
