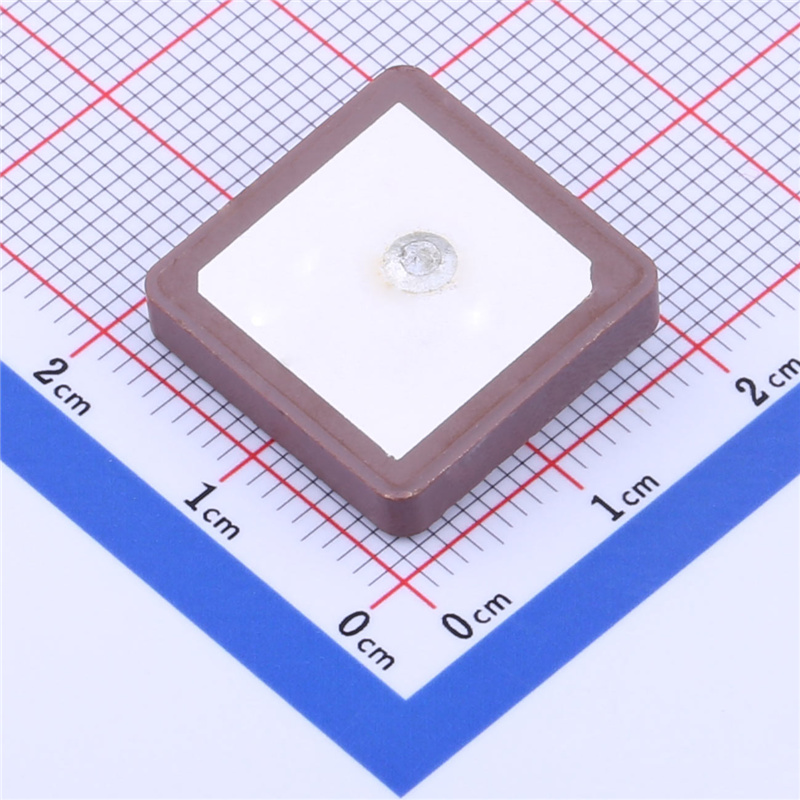

Compact GPS Passive Ceramic Antenna | 18mm x 18mm x 4mm | 1575.42 MHz

Get precise GPS performance with the compact 18mm x 18mm x 4mm passive ceramic antenna, operating at 1575.42 MHz. This antenna offers a frequency range of 1575.42±2 MHz, 3.5dBi gain, and a 50Ω impedance. With a V.S.W.R of ≤1.5:1 and a bandwidth of 10M, it ensures reliable and efficient signal reception for a variety of GPS applications.

Frequency Range: 1575.42±2MHz

Bandwidth: 10M

Gain: 3.5dBi

V.S.W.R: ≤1.5:1

Impedance: 50Ω

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

●GPS and Glonass Antenna

●Waterproof Design

●High Gain 27 DBI

●External Antenna for Vehicles

Applications Areas
●Vehicle Tracking Systems
●Navigation Systems
●GPS and Glonass Aapplications

Name

Title

Description

KH-GPS181804-WY.pdf

Datasheet
