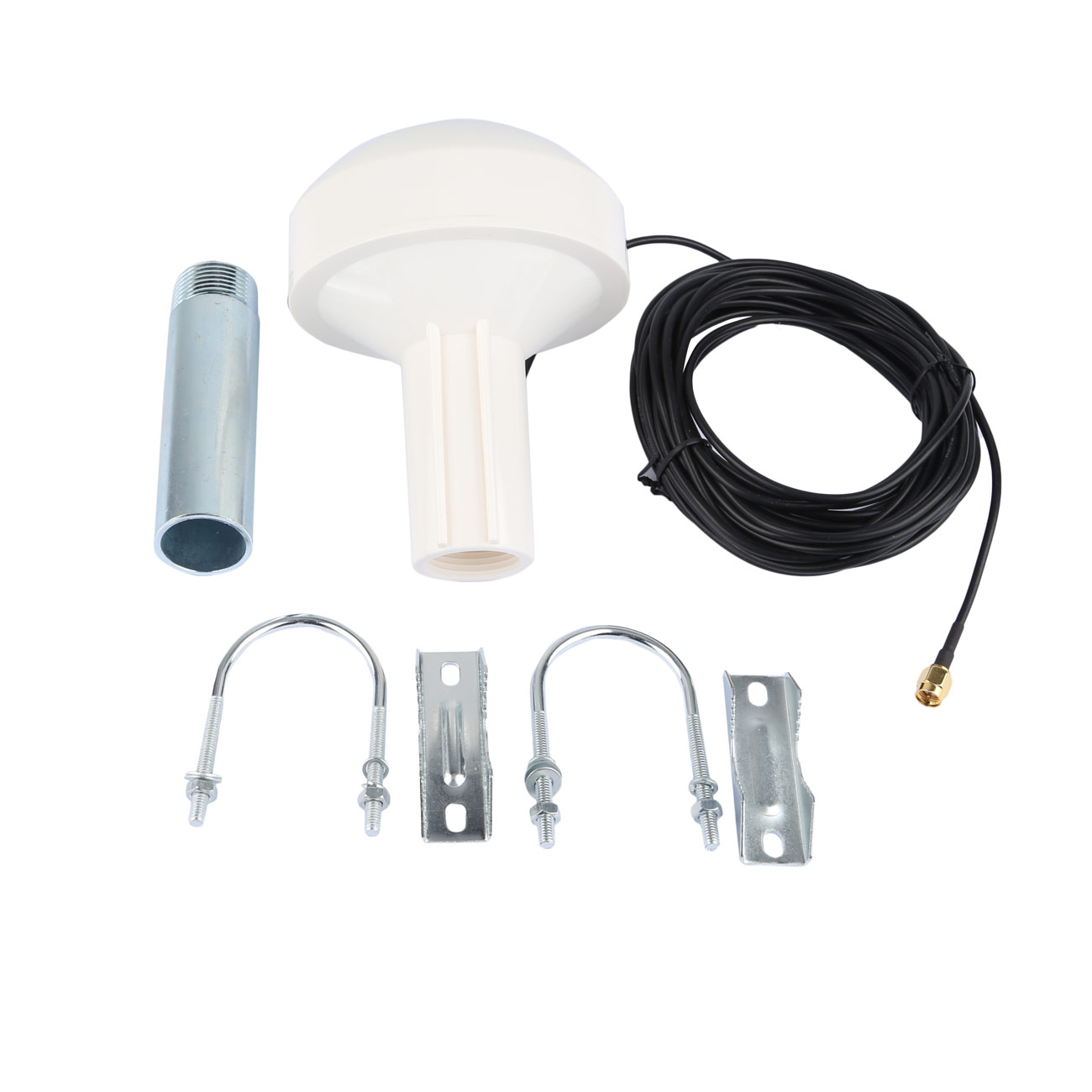

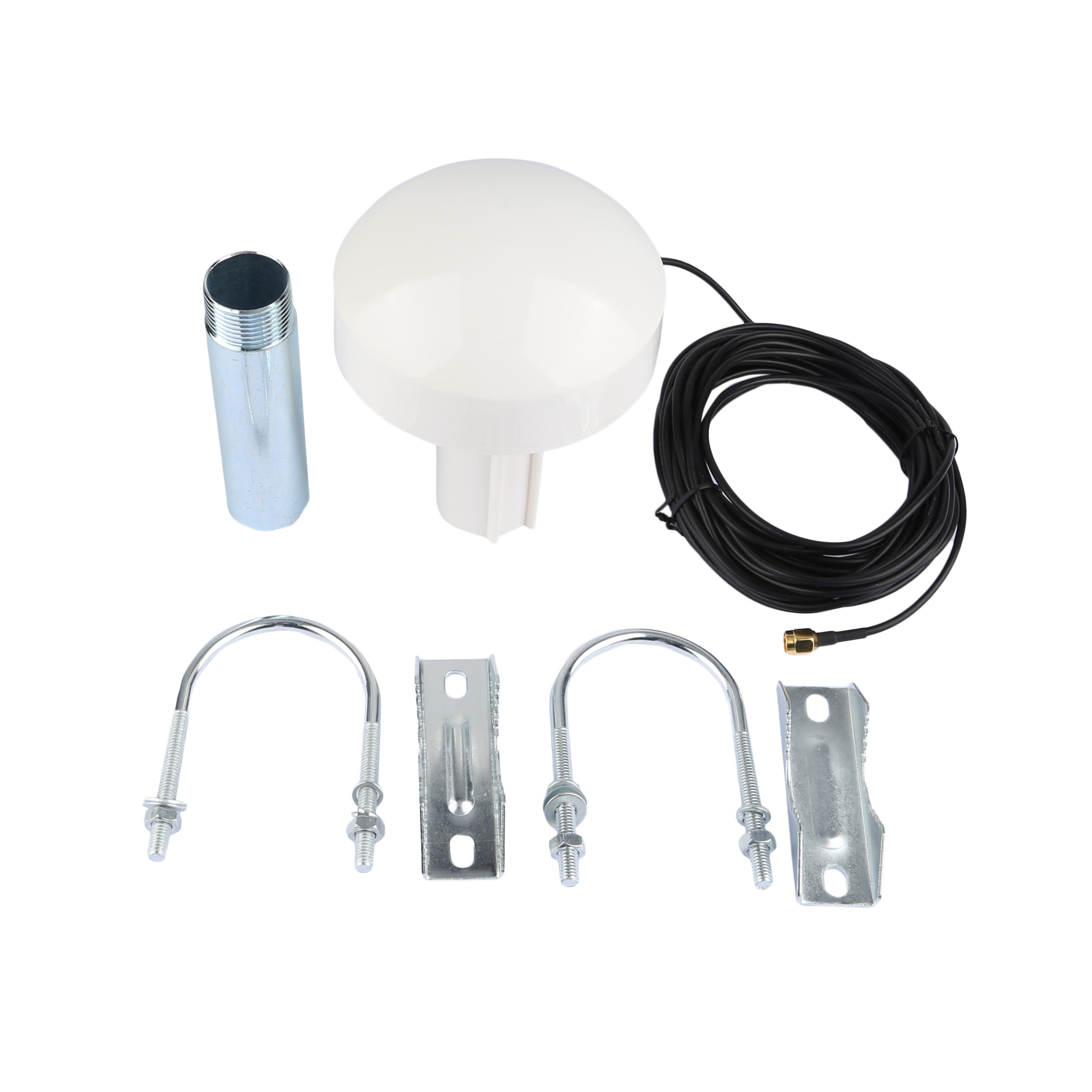

Dual-Frequency Beidou/GPS Antenna | High Gain, Low Noise | Sealed Design | KH-GPS/BD-SS04
The KH-GPS/BD-SS04 is a dual-frequency Beidou/GPS antenna designed for superior satellite positioning. Ideal for mobile communication base stations, timing systems, and various other applications, it offers excellent gain-to-axis ratio, wide beam width, and effective low elevation signal reception. Featuring a low noise amplifier for high accuracy and reliability, it also boasts a sealed, UV-resistant radome for long-term durability in harsh outdoor environments.
Frequency: BD B1:1561.098±2.046MHz; GPS L1: 1575.42±10 MHz
Gain: ≥4.0 dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Connector: SMA-J
Cable: 8M RG174
Product Features
●Dual-Frequency Reception
●High Gain-to-Axis Ratio
●Wide Beam Width
●Low Noise Amplifier Circuit
●Sealed Design
●Durable Radome
●Corrosion and High-Temperature Resistance
Product Benefits
●Enhanced Signal Accuracy
●Versatile Application
●Reliable Performance in Harsh Conditions
●Long-Term Durability
●High Efficiency
