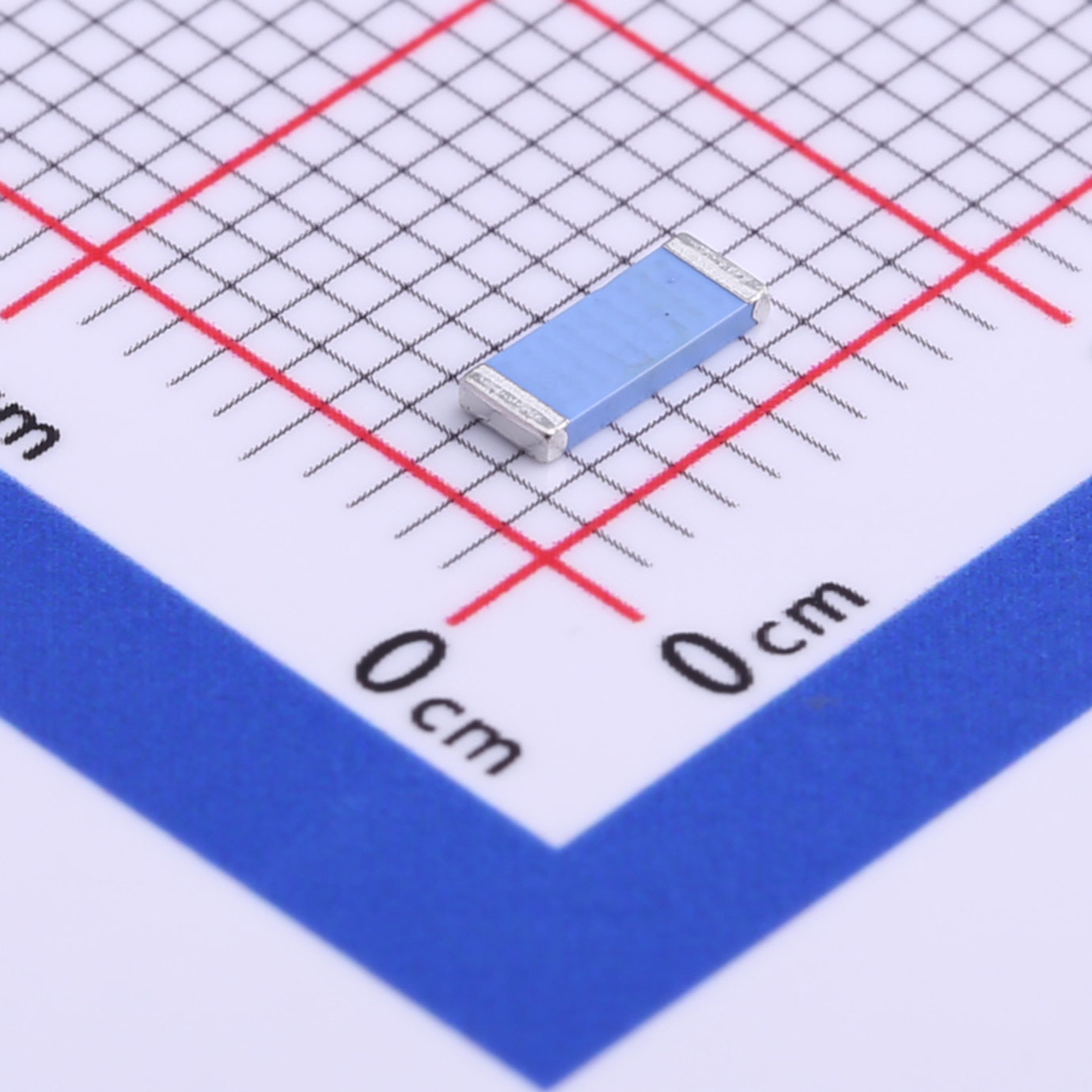

High-Gain Bluetooth Chip Antenna - 4.91 dBi, 2450 MHz, 5.2x2.0mm | Linear Polarization, 50Ω Omni-Antenna

Explore our high-gain Bluetooth chip antenna with a frequency of 2450 MHz and a gain of 4.91 dBi. This compact 5.2x2.0mm antenna features linear polarization and a V.S.W.R. of ≤ 2.0, ensuring optimal power transfer and reliable connectivity. Ideal for Bluetooth devices, portable electronics, wearables, and IoT applications, it delivers enhanced signal strength and performance in a small, versatile design.

Frequency: 2450 MHz

Gain: 4.91 dBi

V.S.W.R.: ≤2.0

Polarization: Linear

Impedance: 50Ω

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Advantages

●With a gain of 4.91 dBi, this antenna significantly enhances signal strength and extends wireless coverage for Bluetooth applications

●Measuring just 5.2x2.0mm, the antenna is designed to fit into compact devices without compromising on performance

●A V.S.W.R. of ≤ 2.0 ensures minimal signal reflections, optimizing power transfer for reliable connectivity

●The linear polarization allows for stable and consistent transmission and reception of Bluetooth signals, making it suitable for various applications

●Designed with a 50Ω impedance, it is compatible with most Bluetooth devices, facilitating easy integration into existing systems.

Product Applications

●Perfect for Bluetooth-enabled devices such as wireless headsets, speakers, and modules that require a compact, high-performance antenna

●Ideal for smartphones, tablets, and other portable gadgets where space is a premium but performance is essential

●Suitable for wearables like smartwatches and fitness trackers, ensuring reliable Bluetooth connectivity in a small form factor
●Great for Internet of Things (IoT) applications where efficient and dependable wireless communication is critical

Name

Title

Description

KH-5220-A56.pdf

Datasheet

Support

Support

If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity

The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
