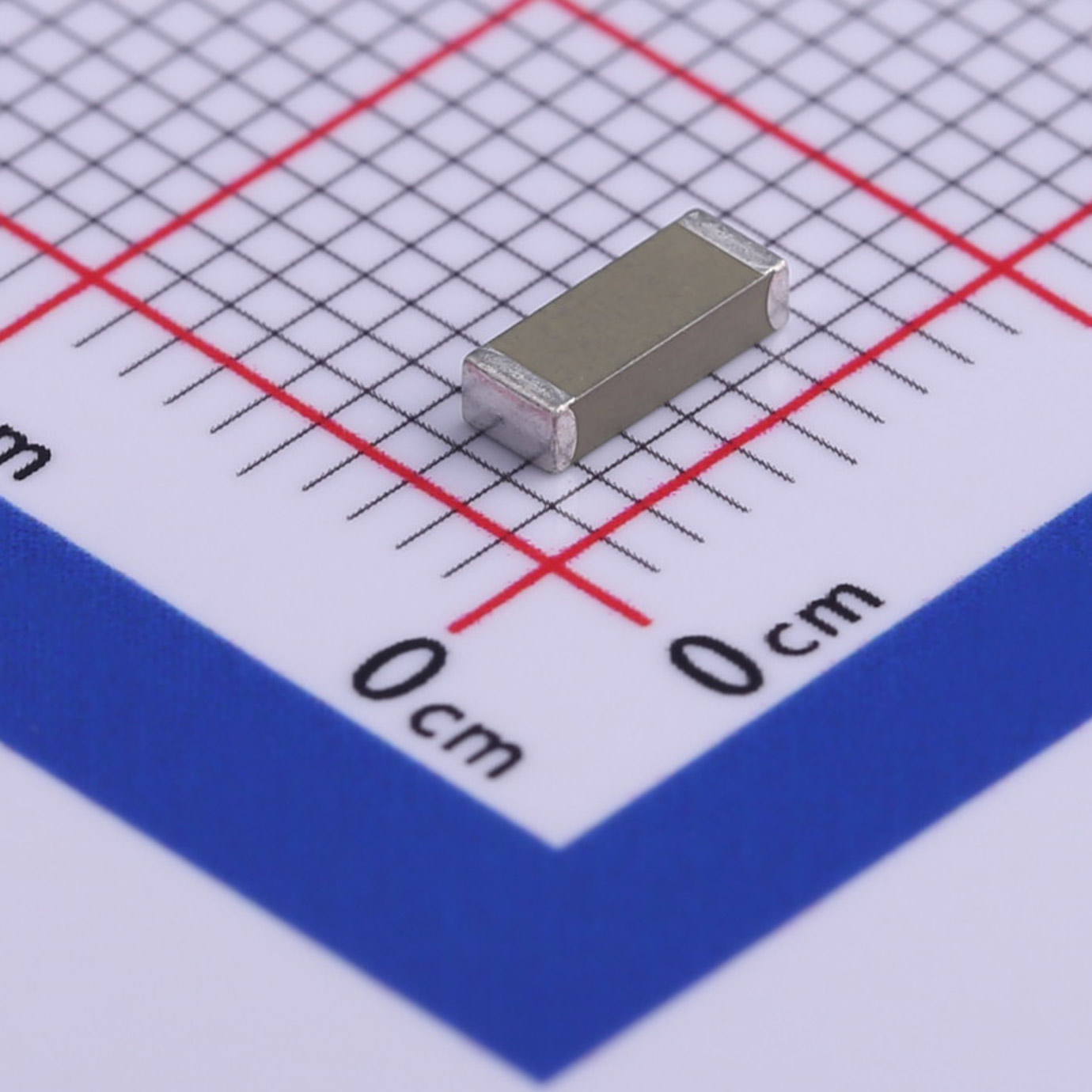

High-Gain 2450MHz Bluetooth Patch Antenna | Omni-Directional, 4.97 dBi Gain, Linear Polarization

Upgrade your wireless connectivity with our 2450MHz Bluetooth patch antenna. Featuring 4.97 dBi gain, omni-directional coverage, and linear polarization with a V.S.W.R of ≤2.0, it ensures optimal performance.

Frequency: 2450MHz

Gain: 4.97 dBi

V.S.W.R: ≤2.0

Impedance: 50Ω

Polarization: Linear

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

●Operates at 2450MHz, ideal for 2.4 GHz wireless applications

●Provides 4.97 dBi gain for enhanced signal strength and extended range

●≤2.0 for efficient power transmission and minimal signal loss

●50Ω for compatibility with most wireless devices

●Linear polarization for improved signal clarity and consistency

●Patch antenna with omni-directional coverage for reliable signal in all directions

Product Benefits

●4.97 dBi gain boosts signal strength and range, improving wireless connectivity and coverage

●Omni-directional pattern ensures consistent reception and transmission without needing precise alignment

●Low V.S.W.R of ≤2.0 minimizes signal loss and maximizes power efficiency

●50Ω impedance fits most wireless devices, making it suitable for a wide range of applications

●Linear polarization reduces signal degradation and interference, ensuring clear and reliable communication

Name

Title

Description

KH5220-A36-PDF.pdf

Datasheet
