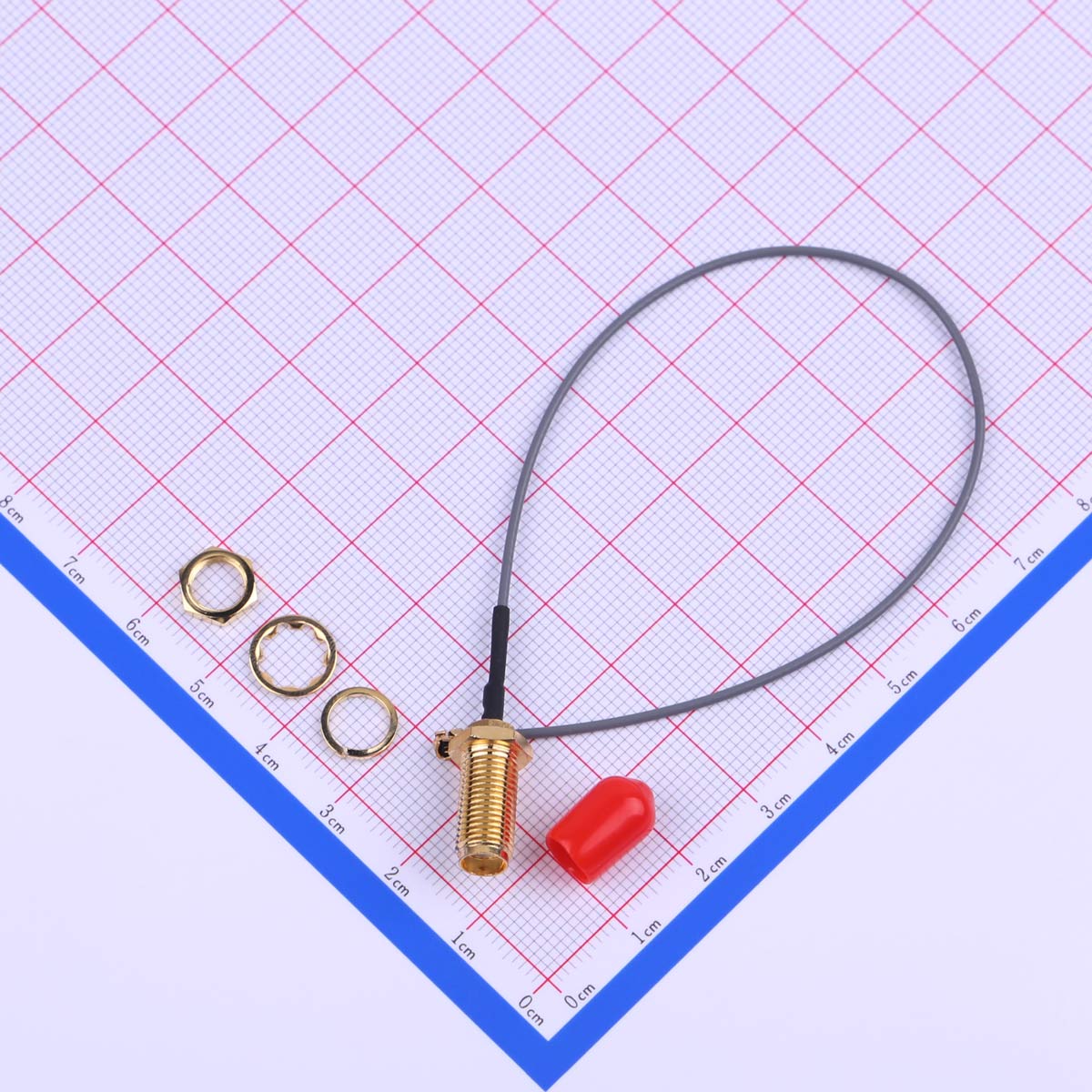

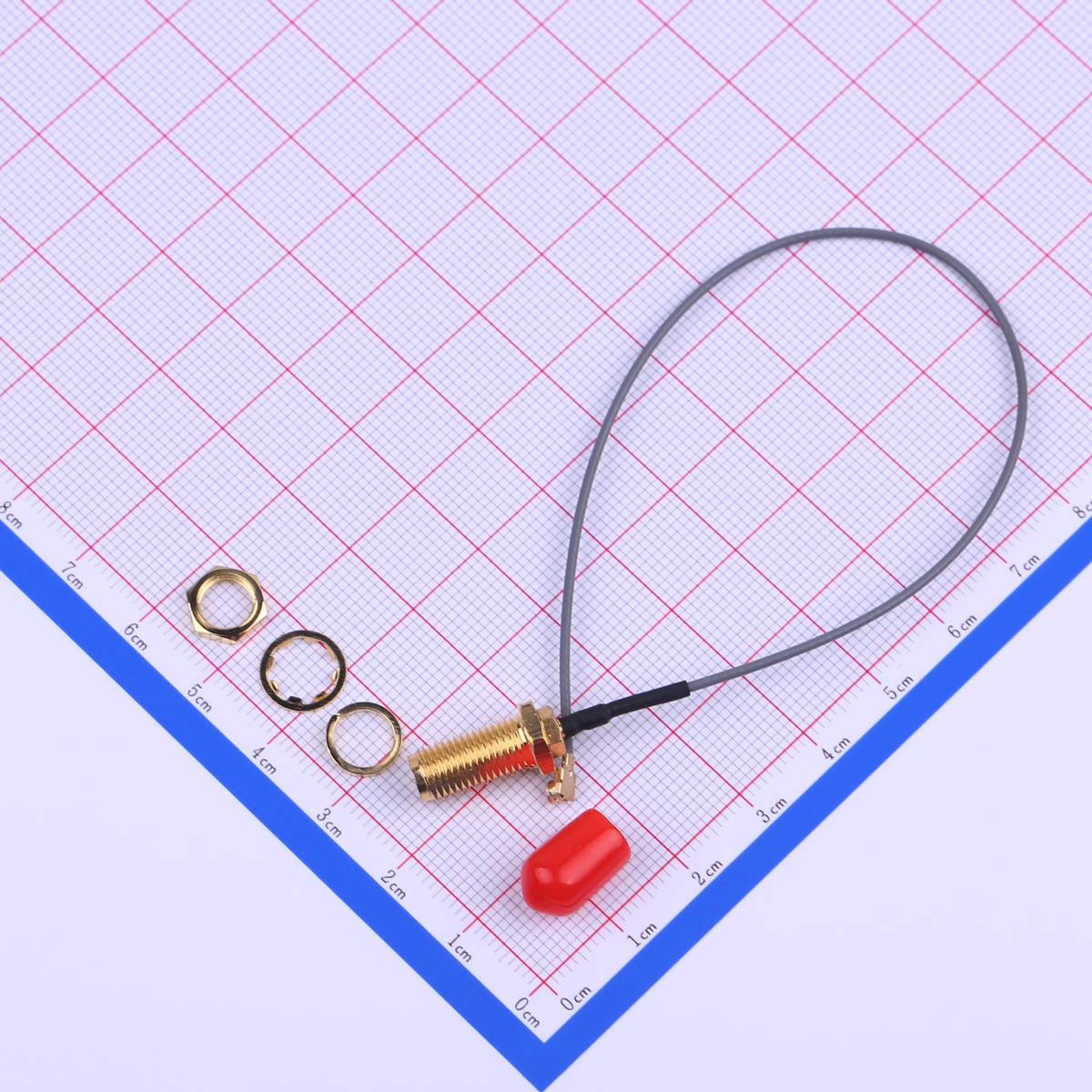

2032440-1 TE Connectivity Benchmark Against--Kinghelm IPEX to SMA Adapter Cable KHB180-37(13)-28

Voltage Rating:DCV 300V 10MS

Conductance Resistance: 3.0 OHM/MAX

Insulation Resistance:5.0 OHM/MIN

SMA Pull Force:12kg

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Features

●High Voltage Rating: The antenna can withstand a DC voltage of 300V for 10 milliseconds, ensuring resilience in varying electrical conditions.

●Low Conductance Resistance: With a maximum conductance resistance of 3.0 ohms, the antenna facilitates efficient electrical conductivity, minimizing energy loss.

●Excellent Insulation Resistance: The antenna provides a minimum insulation resistance of 5.0M ohms, maintaining signal integrity and reducing the risk of interference.

●Rigorous Testing: 100% electrical testing is conducted to guarantee consistent and reliable performance. This ensures that no open circuits, short circuits, miswiring, or intermittent failures are present.

●RoHS Compliance: All components of the antenna meet RoHS regulations, indicating environmentally responsible manufacturing and materials usage.

●Mechanical Durability: The antenna meets the SMA pull force requirement of 12.0 kilograms, signifying robust mechanical strength and secure attachment.

Advantages

●Reliability: The antenna's high voltage rating, low resistance, and stringent testing contribute to its overall reliability in diverse operating conditions.

●Signal Integrity: The combination of insulation resistance and rigorous testing ensures that the antenna maintains signal integrity without the risk of interference.

●Compliance: The RoHS compliance reflects a commitment to environmental sustainability and adherence to international standards.

●Mechanical Strength: The antenna's ability to meet the SMA pull force requirement indicates strong mechanical integrity, reducing the risk of detachment or failure in demanding environments.

Kinghelm alternative equivalents to TE

TE	Kinghelm Replacements
Part Number	Part Number	Product Category	Package
2032440-1	KHB180-37(13)-28	IPEX to SMA	/
5-1814400-1	KH-SMA-K513-G	SMA	Plug-in
5-1814832-2	KH-SMA-KE-Z	SMA	Plug-in
1909763-1/U.FL-R-SMT-1(80)	KH-IPEX-K501-29	IPEX	SMD
638817-4	KH-FAK-K508-P	FAKRA	Plug-in
1-1337541-0	KH-BNC50-3511	BNC	Plug-in
84953-6	KH-CL1.0-H2.5-6PS	FFC/FPC Connector	SMD
1734366-1	KH-AF90DIP-112	USB Type-A	Plug-in
5558342-1	KH-RJ45-56-8P8C-D	RJ45 Network Connector	Plug-in
5406533-1	KH-RCH56-8P8C-D	RJ45 Network Connector	Plug-in
2-406549-1	KH-5224-8P8C-D	RJ45 Network Connector	Plug-in
1-406541-1	KH-RJ45-56-8P8C-D-T	RJ45 Network Connector	Plug-in
FSM6JSMA	KH-6X6X7H-STM	Tactile Switch	SMD
3-1437565-0	KH-4.5X4.5X4.3H-STM	Tactile Switch	SMD
4-1437565-2	KH-6X6X4.3H-STM	Tactile Switch	SMD
1-1825027-1	KH-6X6X8H-ZJ	Tactile Switch	Plug-in
1825027-5	KH-6X6X4.3H-ZJ	Tactile Switch	Plug-in
8-1437565-0	KH-404015-AJ	Tactile Switch	SMD
826629-3	KH-2.54PH180-1X3P-L11.5	Pin Header	Plug-in
