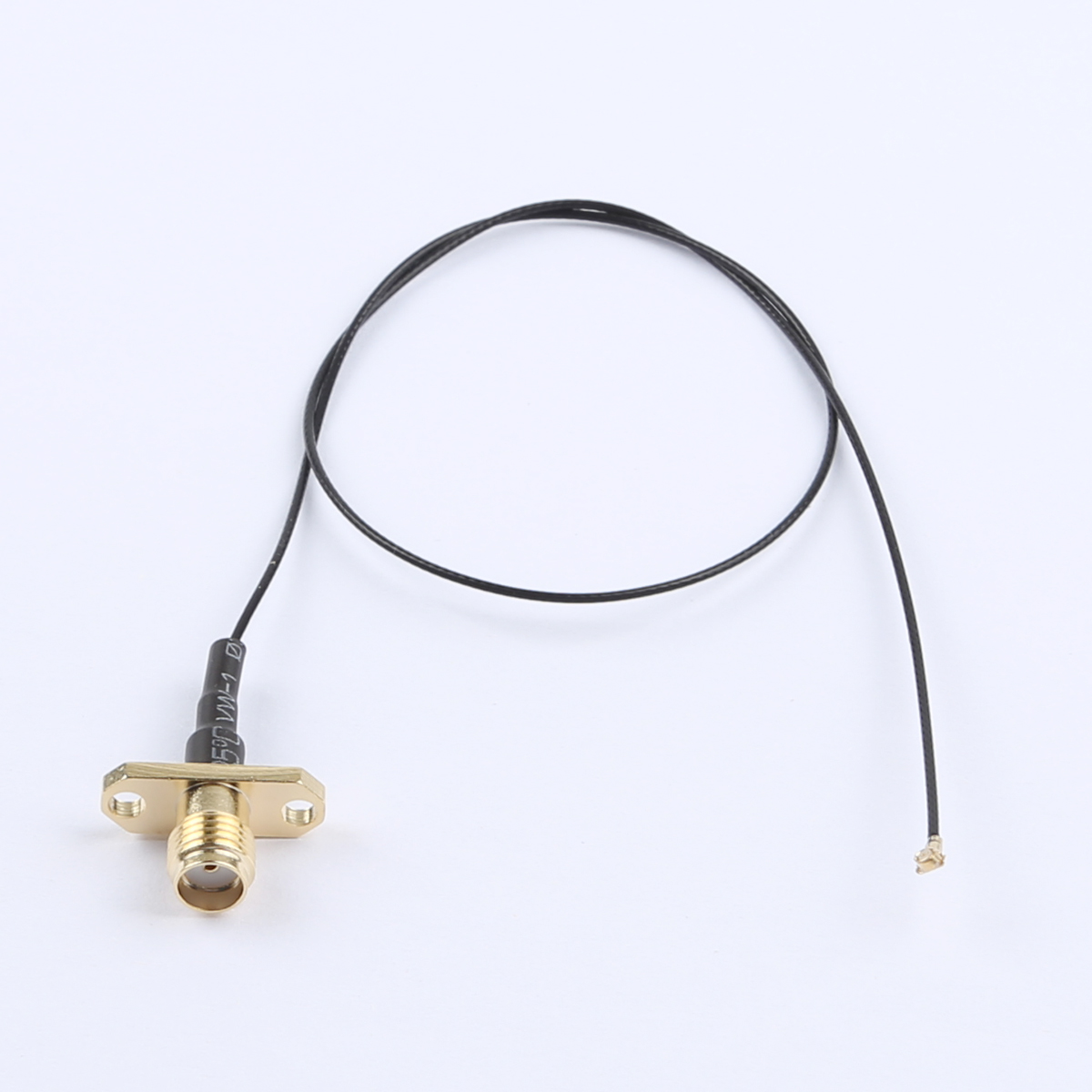

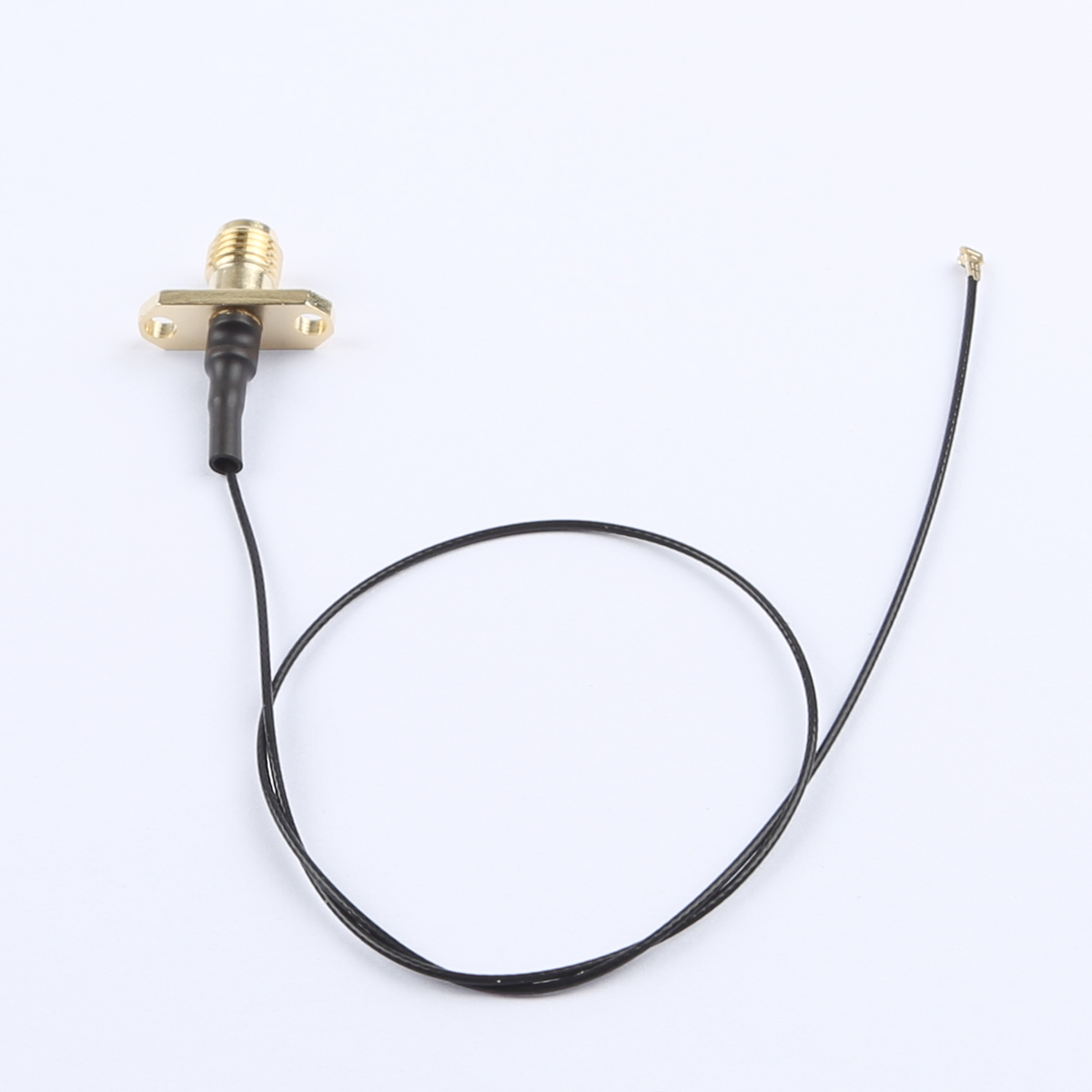

SMA Female to IPEX RG0.81 Black Wire 300mm KH-FL2SMAK-IPEX3-RG0.81-B300

Product Description:●ELECTRICAL Specifications:○Voltage Rating: The cable assembly is rated for DC 3

Brand： Kinghelm

Model： KH-FL2SMAK-IPEX3-RG0.81-B300

Gross Weight： 2.76 grams

Packaging:Bag Packaging

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

●ELECTRICAL Specifications:

○Voltage Rating: The cable assembly is rated for DC 300V with a pulse duration of 10 milliseconds. This rating ensures that the cable can safely withstand voltage spikes without compromising its integrity or performance.

○Conductance Resistance: The maximum allowable conductance resistance for the cable assembly is 3.0 ohms, ensuring efficient current flow and minimal power loss during operation.

○Insulation Resistance: The cable assembly's insulation material boasts a minimum insulation resistance of 5.0 megaohms, guaranteeing superior insulation properties and preventing electrical leakage.

○Electrical Testing: Each cable undergoes rigorous 100% electrical testing to verify its electrical characteristics, ensuring reliability and safety in various applications.

○Quality Assurance: The cable assembly is meticulously inspected to eliminate any risks of open circuits, short circuits, miswiring, or intermittent failures, providing users with a reliable and secure electrical connection.

●MATERIAL Composition:

○Material Table: Detailed information regarding the materials used in the cable assembly is provided in a comprehensive table format. This table outlines the composition of the cable, including the types of materials utilized, their specific properties, and their designated locations within the assembly.

●Compliance:

○RoHS Compliance:All components integrated into the cable assembly strictly adhere to the Restriction of Hazardous Substances (RoHS) directive. This compliance ensures that the cable is free from hazardous substances such as lead, mercury, cadmium, and certain flame retardants, promoting environmental sustainability and user safety.

Name

Title

Description

KH-FL2SMAK-IPEX3-RG0.81-B300.PDF

KH-FL2SMAK-IPEX3-RG0.81-B300

Datasheet
