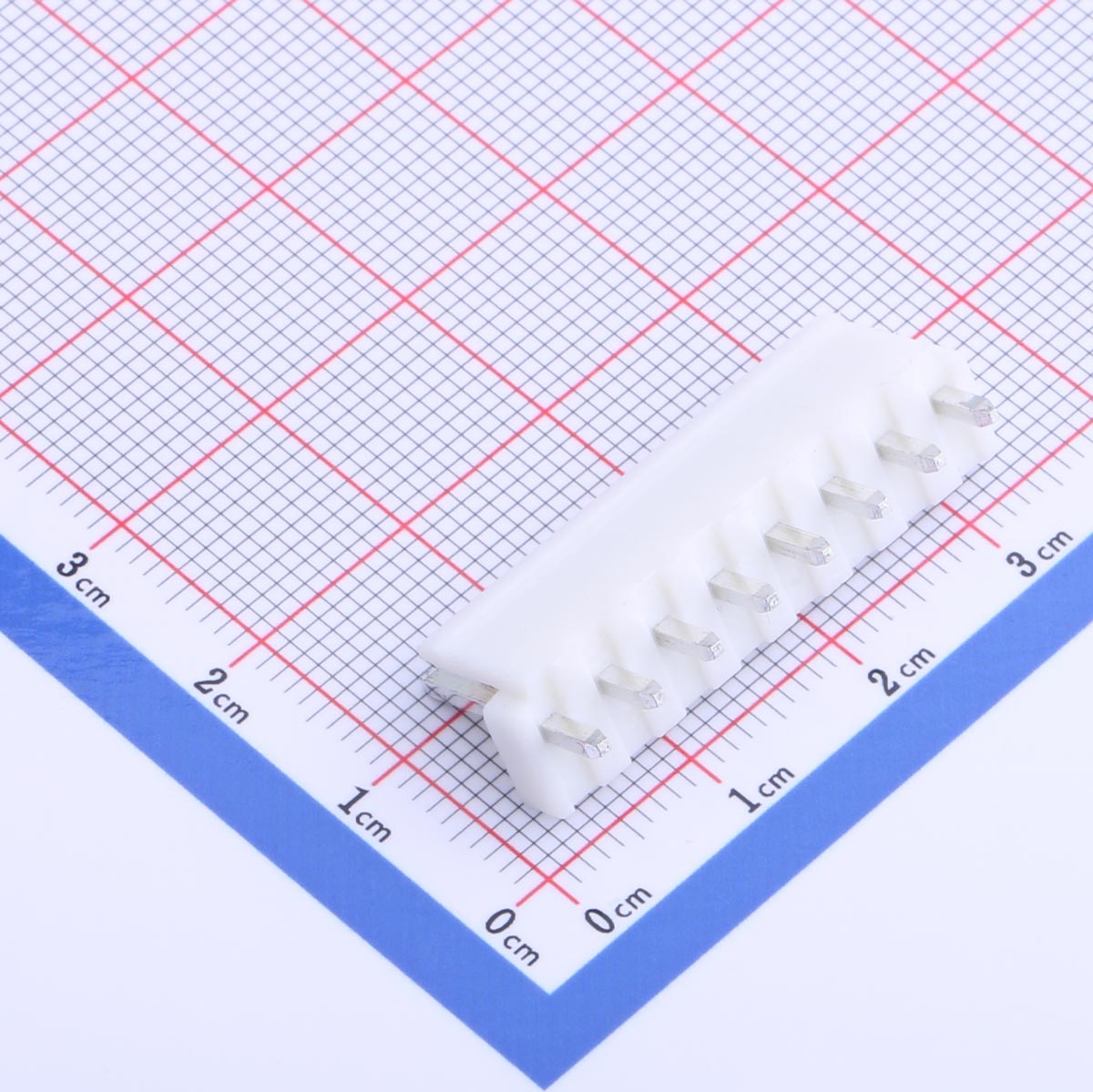

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x8P, KH-VH-8P-Z

Product Features● 3.96mm pitch, VH series● 1x8P, single row● Straight mount type● Plugin style conne

Current Rating: 7A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 3.96mm pitch, VH series
● 1x8P, single row
● Straight mount type
● Plugin style connector
● 7A current rating
● -25℃ to +85℃ operating range

Product Benefits
● Stable high-current handling
● Easy PCB installation
● Compact 8-pin layout
● Reliable and secure contact
● Cost-efficient design

Product Applications
● Power supply in desktop fans
● Driver boards in 3D printers
● Control interface in vending machines
● LED strip power connectors
● Wiring in microwave ovens
