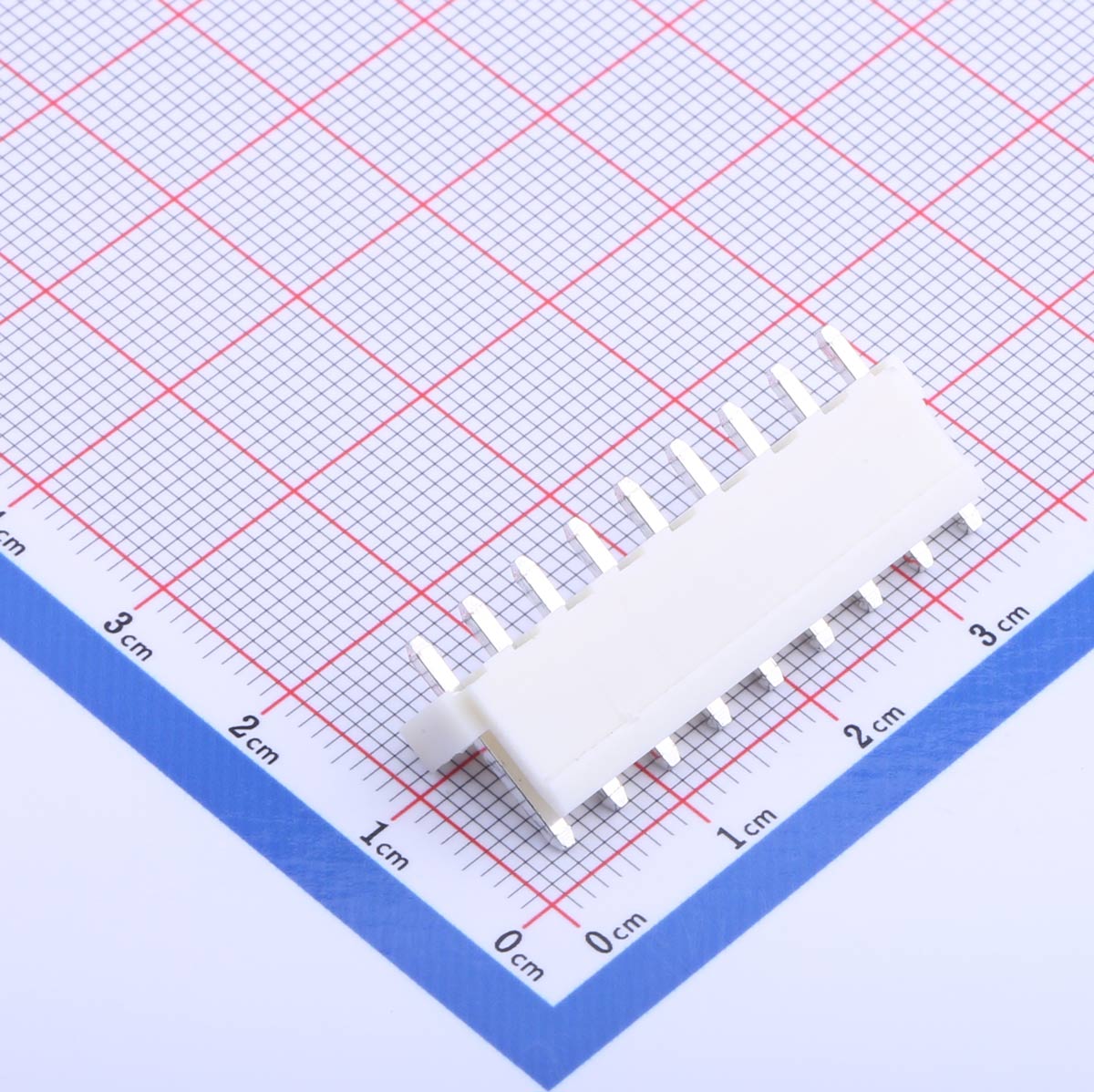

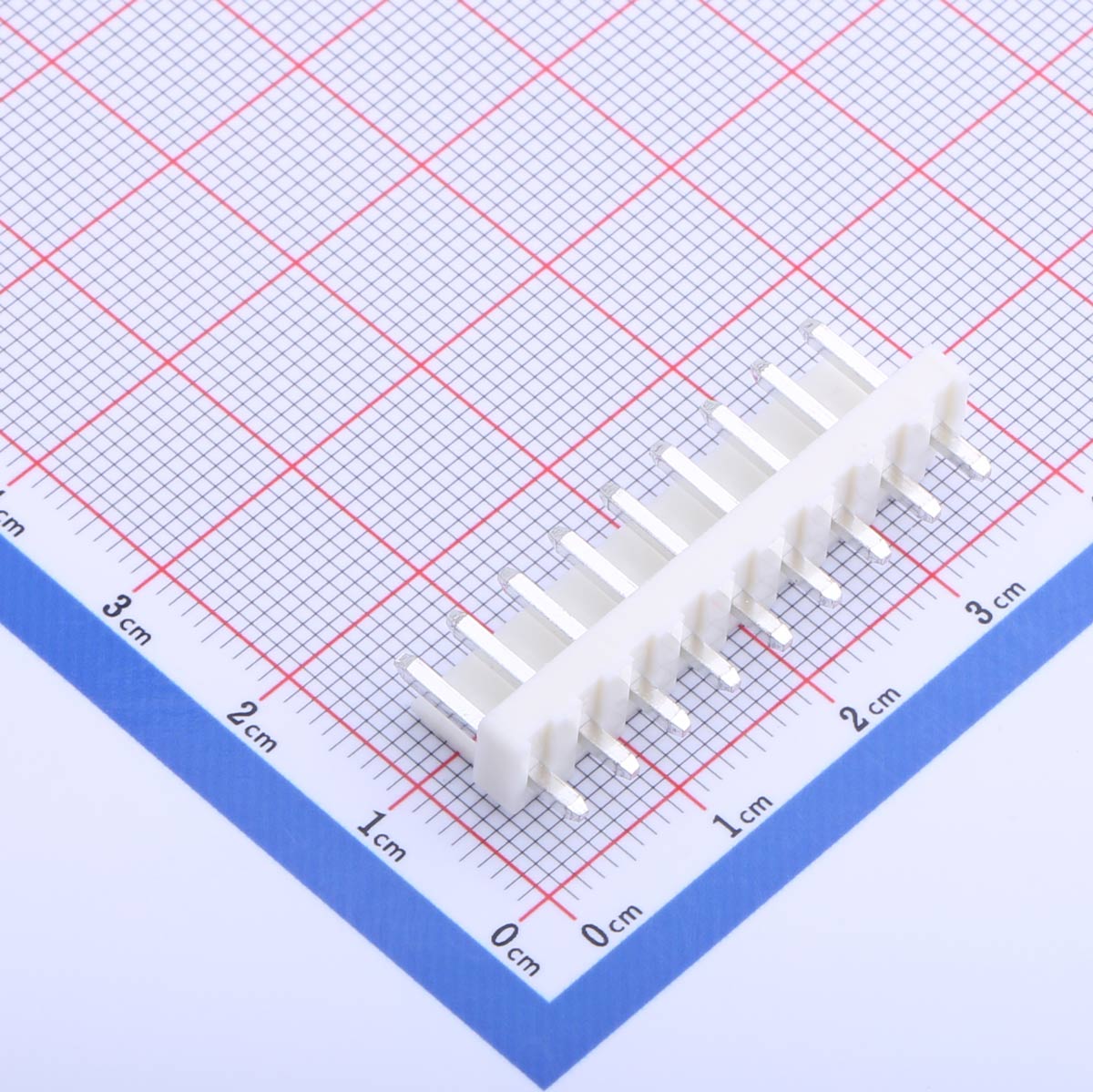

Kinghelm Wire to Board Connector VH connector, KH-VH-9p-Z
Kinghelm Wire to Board Connector VH connector, KH-VH-9p-Z
Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Features
●Pitch: 3.96mm
●Connector Type: Board-to-wire / Wire-to-wire
●Design: 9-pin male header, single-row
●Rated Current: Up to 7A
●Temperature Range: -25°C to +85°C
●Durability: High-quality materials and precise manufacturing for long lifespan
Advantages
●Reliable and stable electrical connection
●Compact design saves board space
●High current handling capability (up to 7A)
●Versatile and flexible for various applications
●Durable with low maintenance costs
Applications
●Electronic devices
●Communication equipment
●Industrial control systems
●Circuit boards, displays, and instrumentation
●Anywhere board-to-wire or wire-to-wire connections are required
