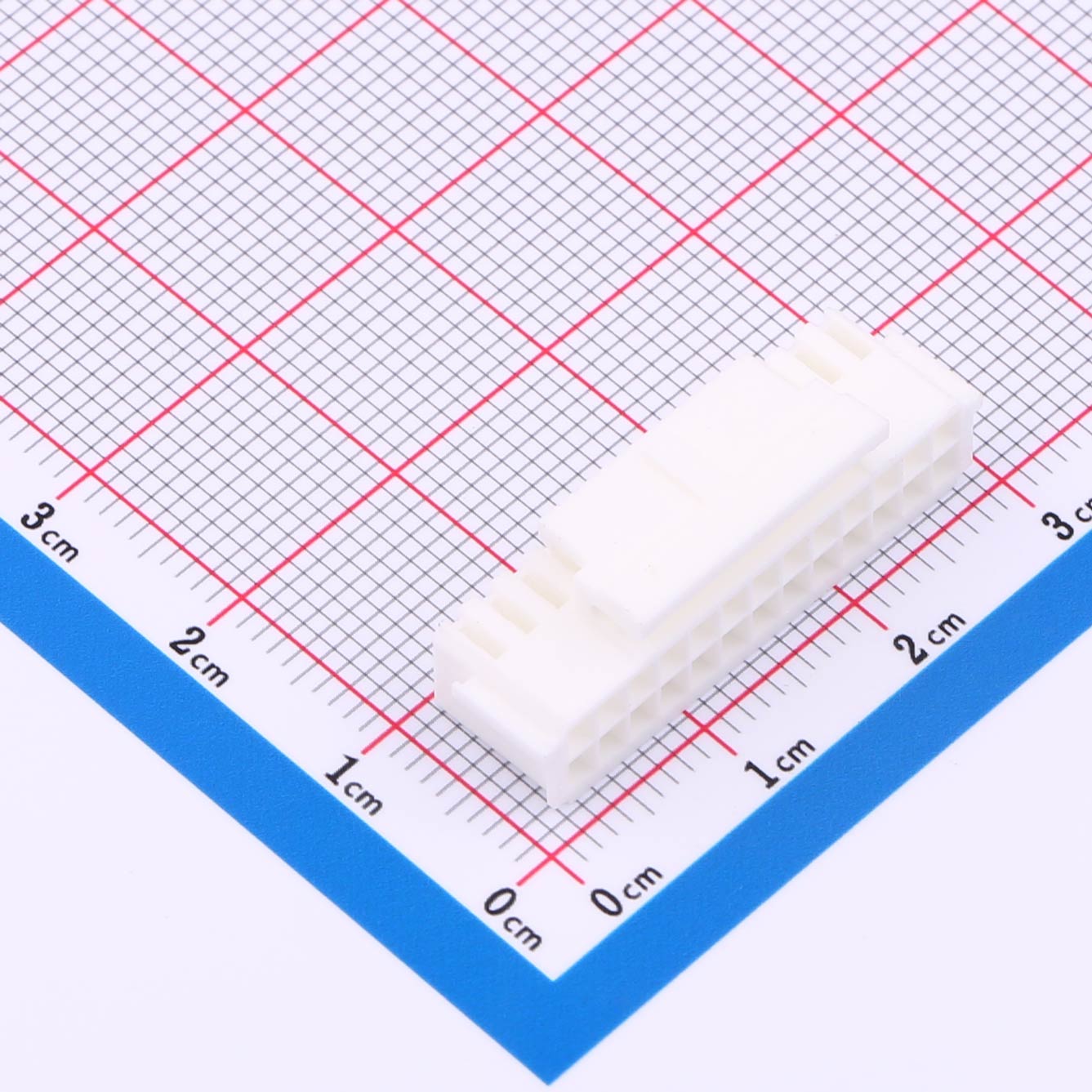

Crimp Terminal Shell, 2mm Pitch, 2x13P, KH-A2009-2X13Y

Product Benefits● Enhanced connector durability● Space-saving dual row layout● Consistent current fl

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25°C to +85°C

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 1000MΩ

Withstanding Voltage: 800V AC/minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Enhanced connector durability
● Space-saving dual row layout
● Consistent current flow
● Halogen-free flame retardant
● Smooth mating and unmating

Product Application
● Digital displays
● Electric scooters
● Battery management systems
● DIY electronics kits
● Surveillance devices

Name

Title

Description

KH-A2009-2X13Y.pdf

Datasheet
