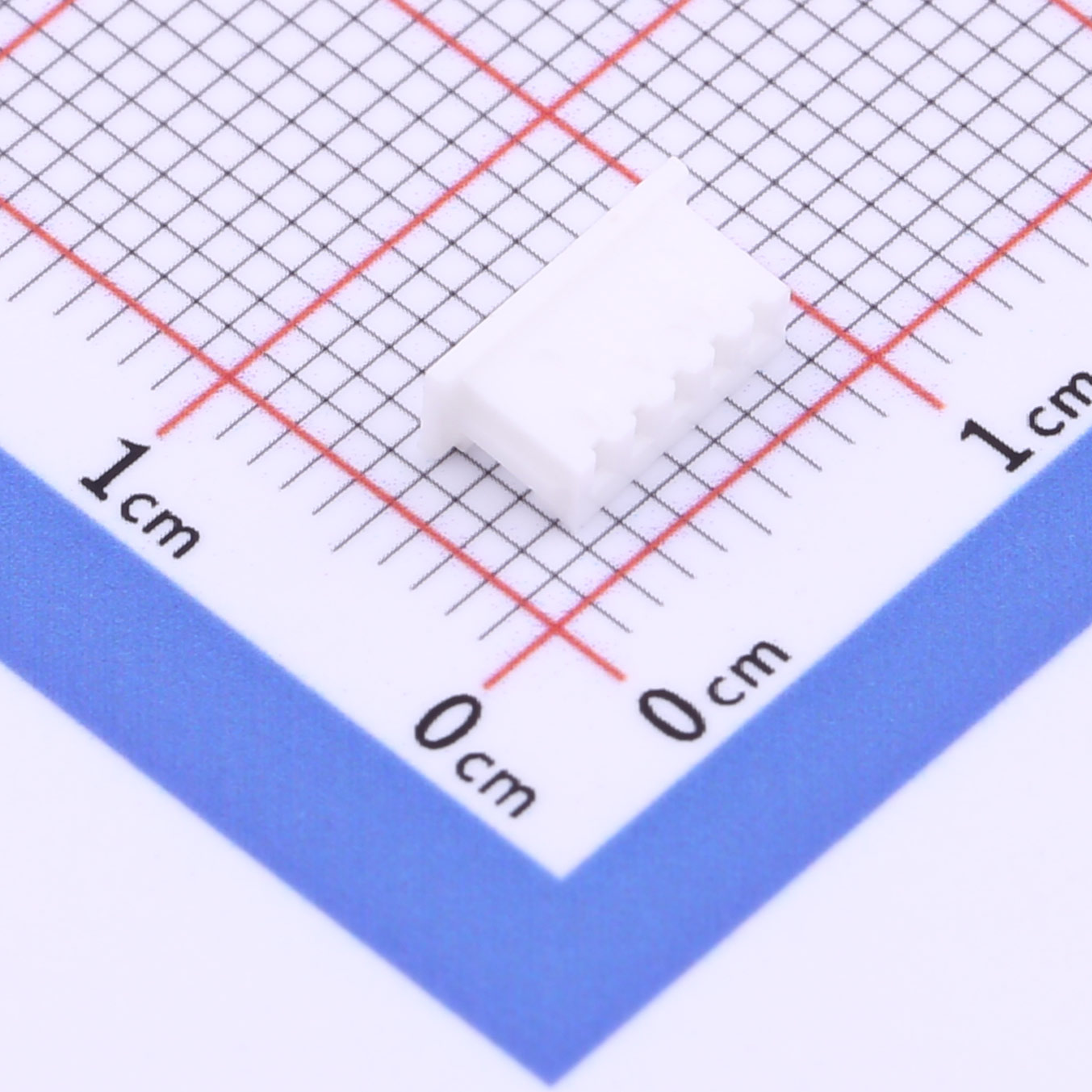

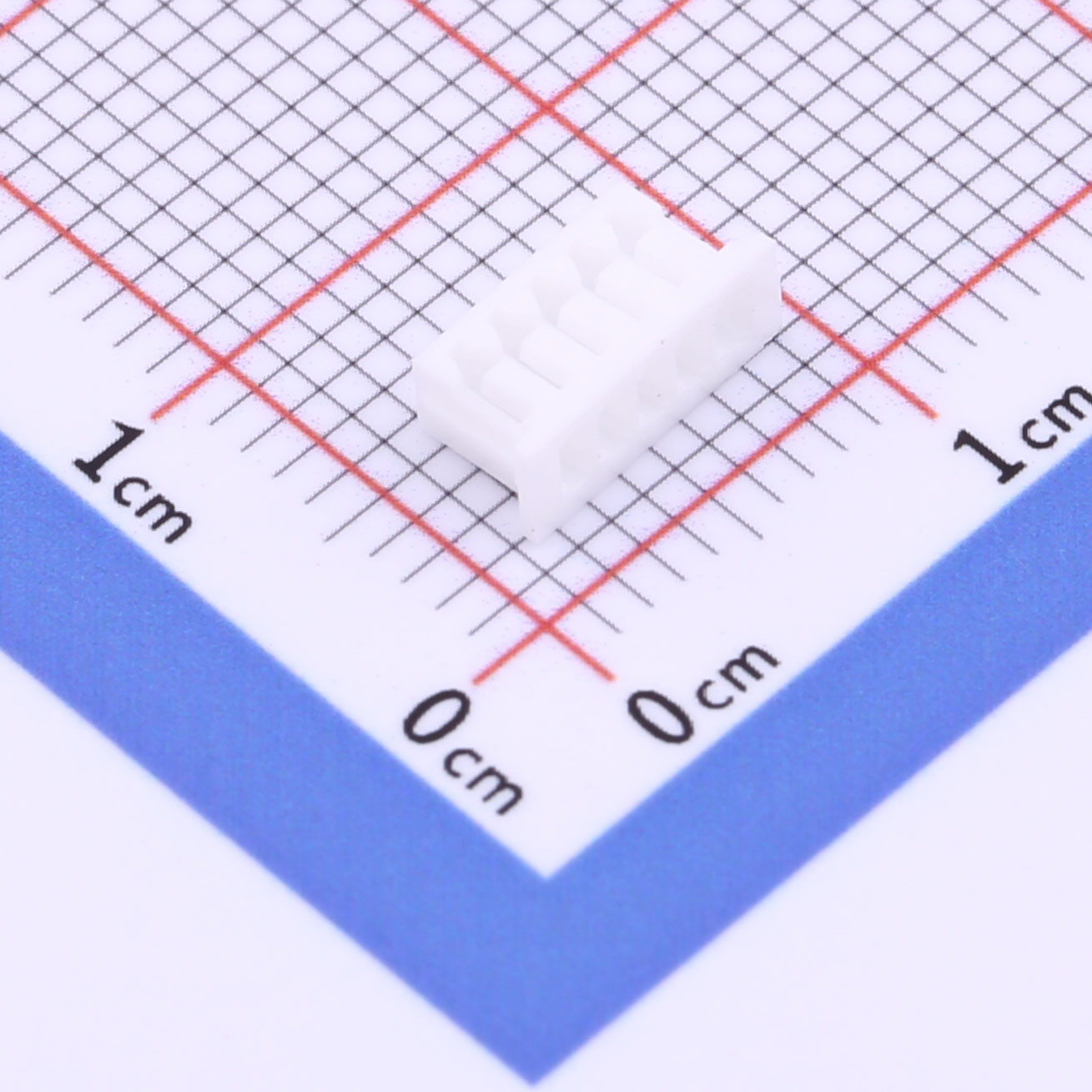

Crimp Terminal Shell 1.25mm Pitch 1x5p Connector Housing, KH-A1250H-5P-JK

Product Benefits:● Lightweight compact design● Optimized for signal integrity● Quick mating and un-m

Current Rating: 2A AC/DC

Voltage Rating: 125V AC/DC

Operating Temperature Range: -25°C to +85°C

Contact Resistance: ≤20 mΩ

Insulation Resistance: ≥100 MΩ

Withstanding Voltage: 250V AC / 1 minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits:
● Lightweight compact design
● Optimized for signal integrity
● Quick mating and un-mating
● Firm terminal retention
● Long-lasting material stability
● Suitable for tight component spacing
● Reliable under thermal cycling

Product Application:
● Drone electronics
● Handheld communication devices
● PCB-mounted LED drivers
● Miniature control panels
● Battery-powered gadgets
● Test and measurement tools
● Robotics and automation subsystems
