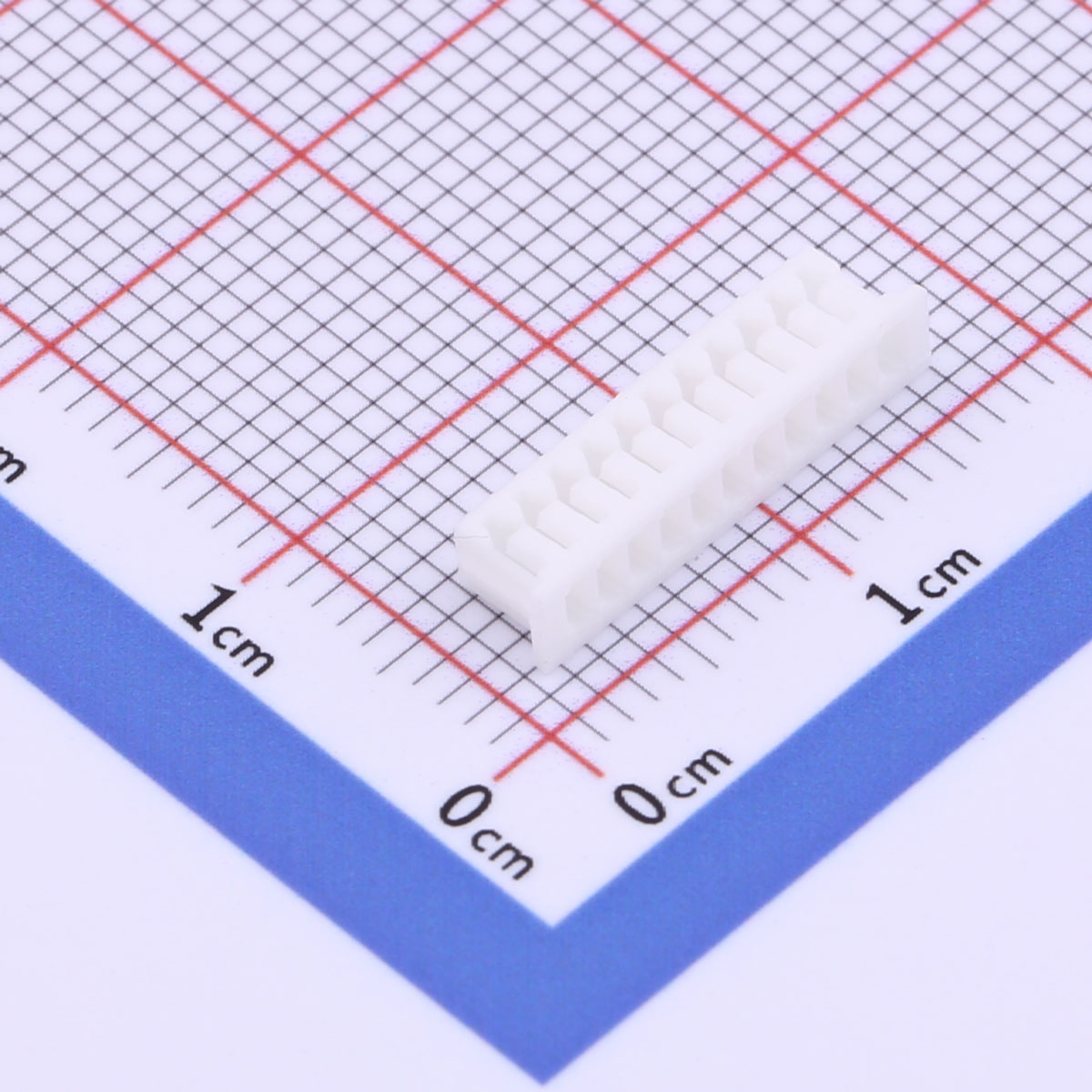

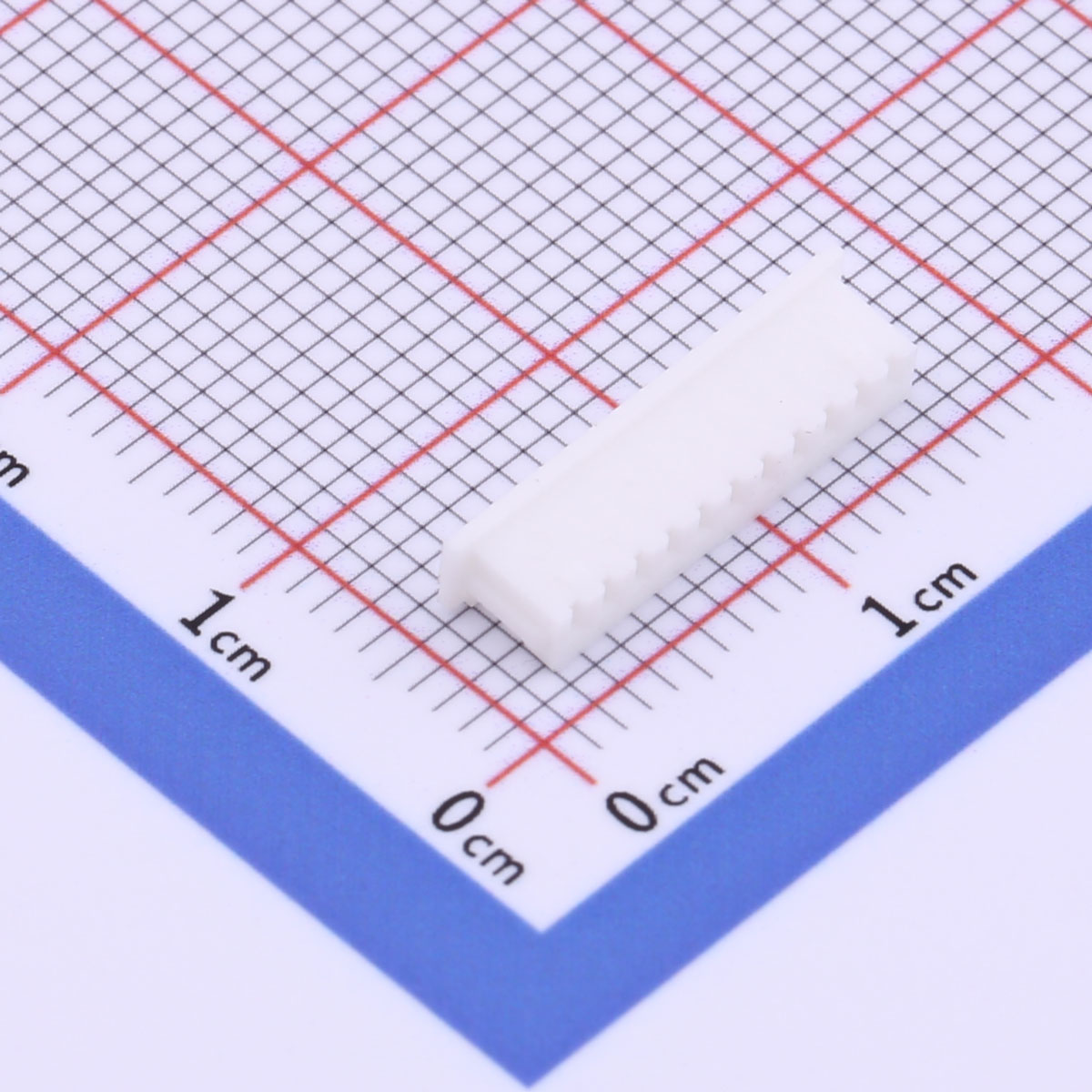

Crimp Terminal Shell 1.25mm Pitch 1x11p Connector Housing,KH-A1250H-11P-JK

English

Home Product Categories Pin Header and Female Header Connectors Jumper & Header Series Crimp Terminal Shell

Show 3D Model

Product Benefits● 11 pin configuration supports balanced signal layout● Compact footprint suits mini

Current Rating: 2A AC/DC

Voltage Rating: 125V AC/DC

Operating Temperature Range: -25°C to +85°C

Contact Resistance: ≤20 mΩ

Insulation Resistance: ≥100 MΩ

Withstanding Voltage: 250V AC / 1 minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 11 pin configuration supports balanced signal layout
● Compact footprint suits mini circuit designs
● Strong shell material resists wear and deformation
● Stable connection ensures uninterrupted flow
● Efficient wiring solution for tight spaces
● Ideal for low voltage and signal circuits

Product Applications
● Smart wearable devices
● Miniature sensor systems
● Wireless module interfaces
● Audio transmission boards
● Personal healthcare electronics
● Low power embedded systems
