1.25mm Pitch 14-Pin Crimp Terminal Connector Housing – Wire-to-Board Female Socket Shell

English

Home Product Categories Pin Header and Female Header Connectors Jumper & Header Series Crimp Terminal Shell

Show 3D Model

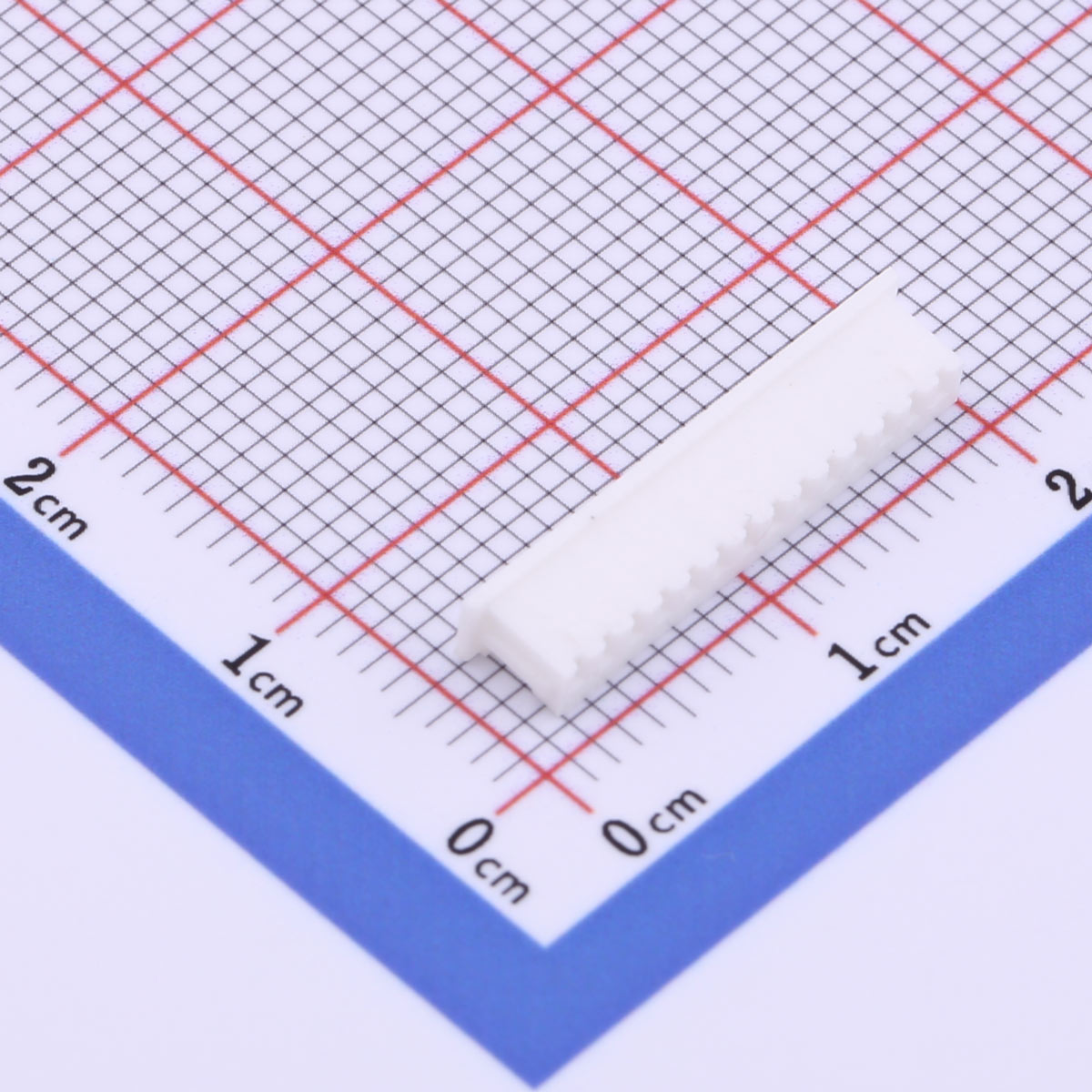

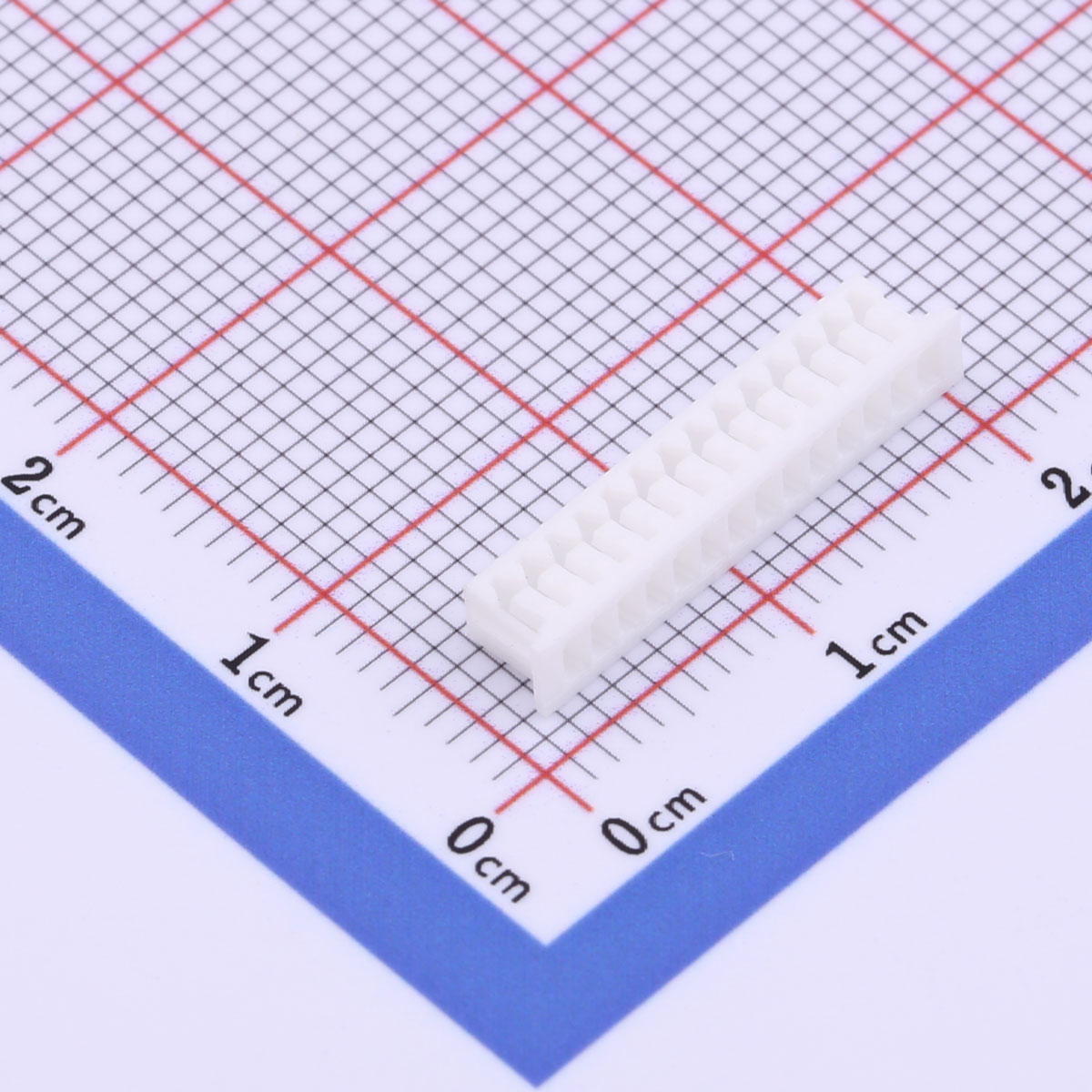

The KH-A1250H-14P-JK is a 14-pin crimp terminal connector housing designed with a 1.25mm pitch, ideal for wire-to-board applications. This compact and reliable female socket shell is commonly used in consumer electronics, LED lighting, and small PCB designs. Compatible with a variety of crimp terminals, it ensures a secure and stable connection.

Current Rating: 2A AC/DC

Voltage Rating: 125V AC/DC

Operating Temperature Range: -25°C to +85°C

Contact Resistance: ≤20 mΩ

Insulation Resistance: ≥100 MΩ

Withstanding Voltage: 250V AC / 1 minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Slim profile for tight space installations
● Stable 14-pin alignment for precise connections
● Maintains integrity in fluctuating temperatures
● High electrical insulation for circuit safety
● Smooth mating with compatible terminals
● Designed for dependable long-term performance

Product Applications
● Compact consumer electronics
● Wearable technology
● Sensor integration systems
● Audio and visual equipment
● Embedded electronic boards
● DIY electronics and prototyping
