Crimp Terminal Shell 1.25mm Pitch | 15-Pin Connector Housing

English

Home Product Categories Pin Header and Female Header Connectors Jumper & Header Series Crimp Terminal Shell

Show 3D Model

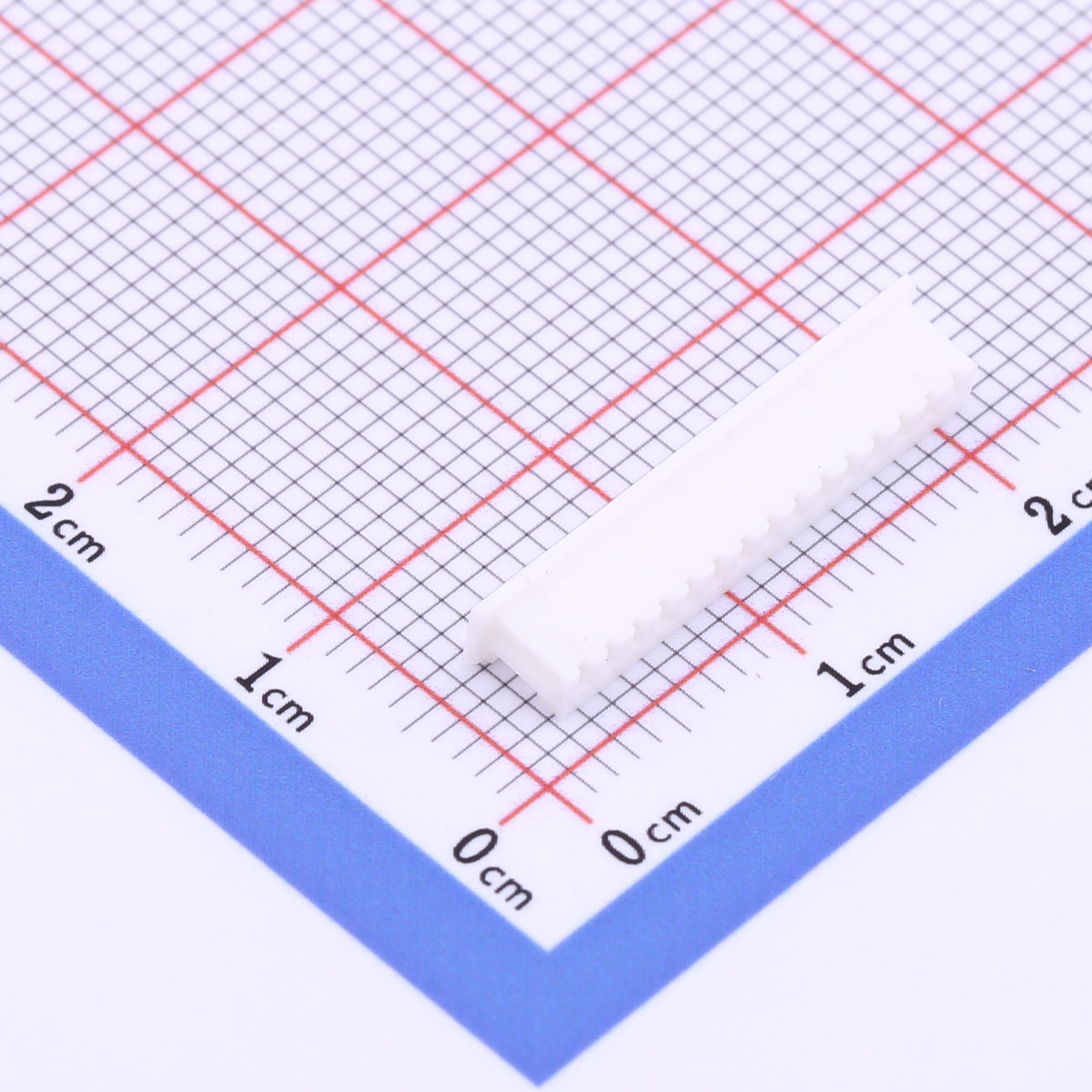

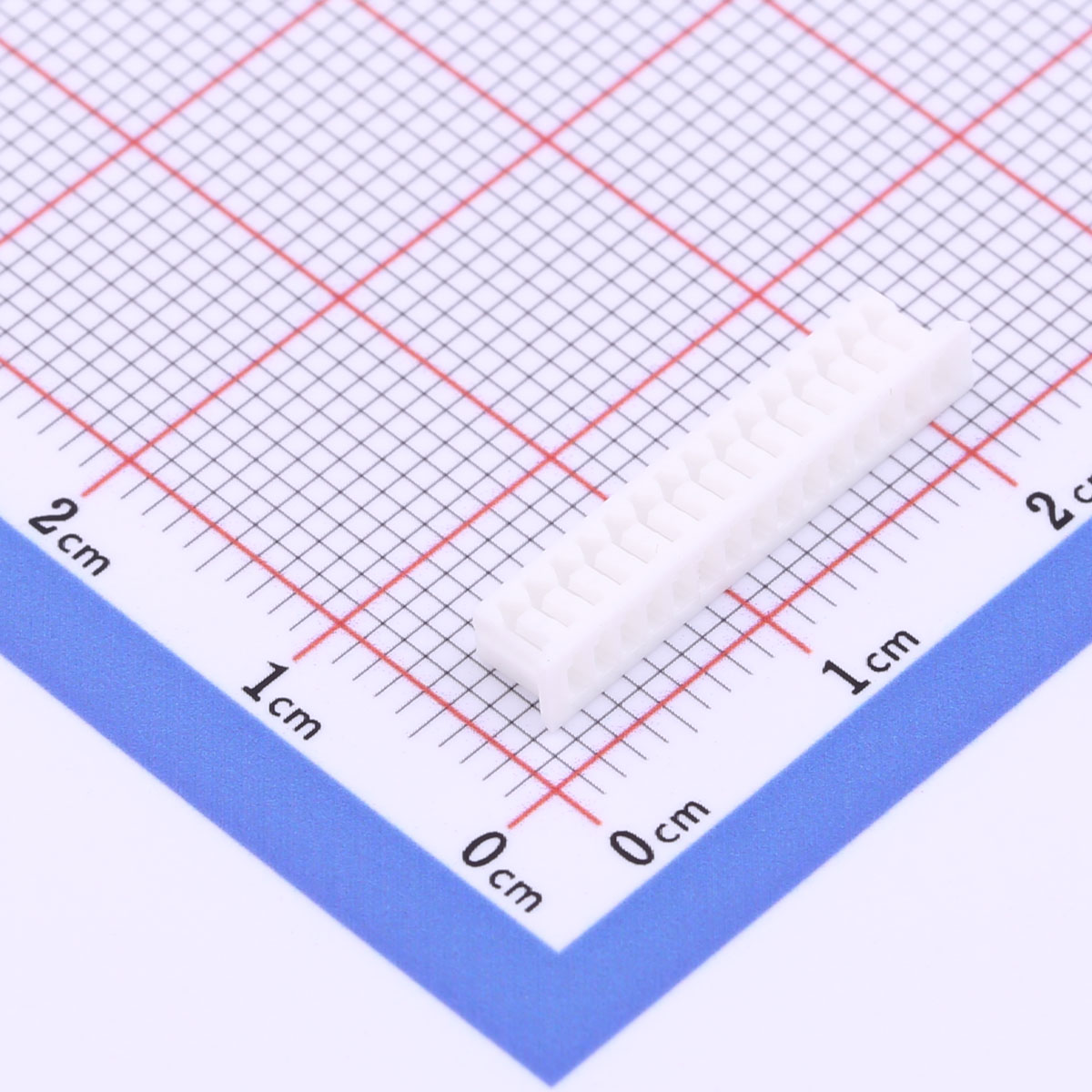

High-quality 15-pin crimp terminal shell with 1.25mm pitch, suitable for secure wire-to-board connections. Model: KH-A1250H-15P-JK. Ideal for electronics, LED, and automotive applications.

Current Rating: 2A AC/DC

Voltage Rating: 125V AC/DC

Operating Temperature Range: -25°C to +85°C

Contact Resistance: ≤20 mΩ

Insulation Resistance: ≥100 MΩ

Withstanding Voltage: 250V AC / 1 minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Space-saving 1.25mm pitch layout
● Firm 15-pin contact interface
● Consistent electrical connection
● Enhanced durability under daily use
● Excellent insulation for circuit protection
● Ideal for low-power signal transmission

Product Applications
● Portable electronic devices
● Smart home control systems
● Battery-powered gadgets
● Medical monitoring equipment
● Security and alarm systems
● Digital interface boards
