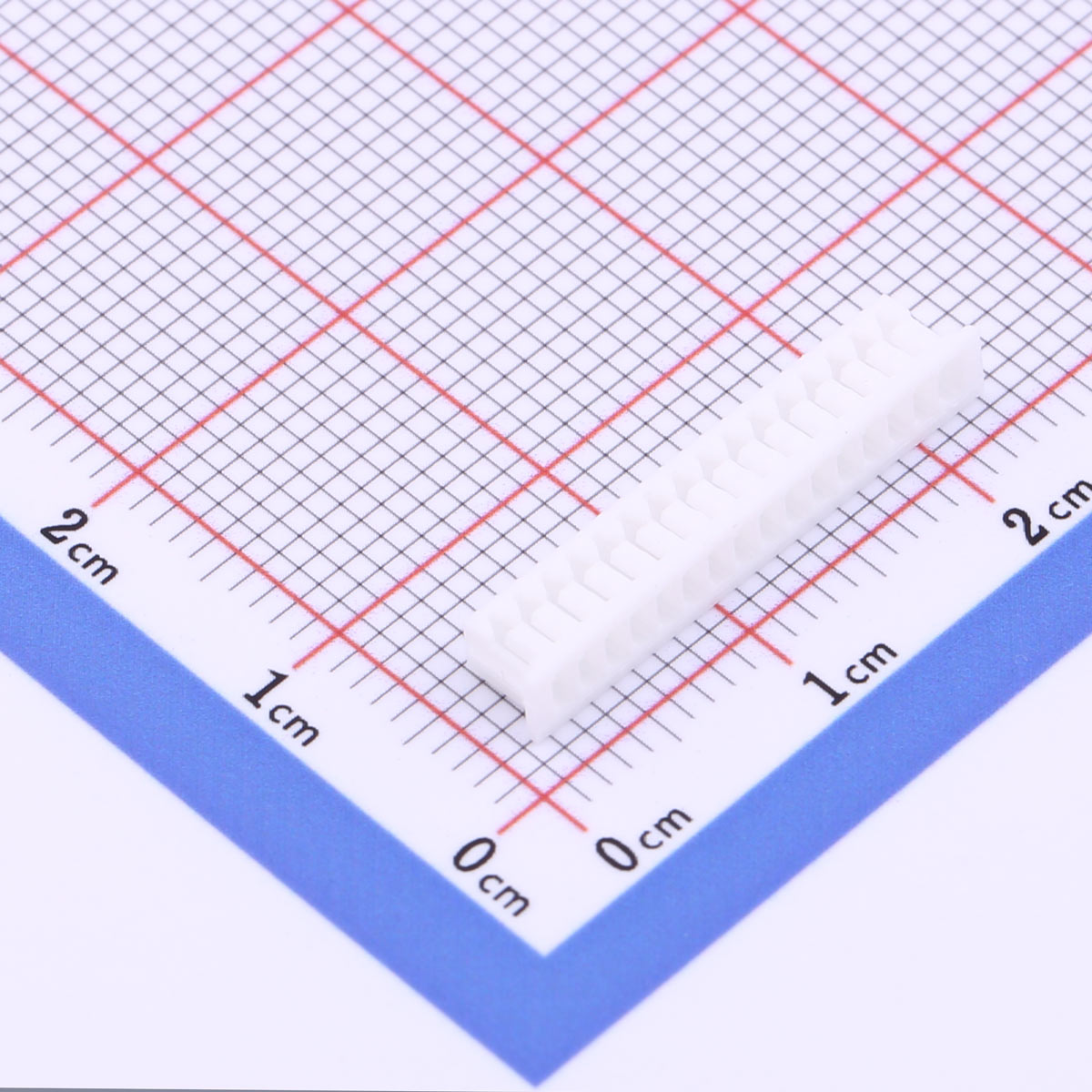

High-quality 16-pin crimp terminal shell with 1.25mm pitch, suitable for secure wire-to-board connections. Model: KH-A1250H-16P-JK. Ideal for electronics, LED, and automotive applications.

Current Rating: 2A AC/DC

Voltage Rating: 125V AC/DC

Operating Temperature Range: -25°C to +85°C

Contact Resistance: ≤20 mΩ

Insulation Resistance: ≥100 MΩ

Withstanding Voltage: 250V AC / 1 minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● Compact 1.25mm pitch design
● Reliable signal and power transmission
● Secure 16-pin connection housing
● High insulation resistance for safety
● Low contact resistance for stable conductivity
● Withstands voltage surges up to 250V AC

Product Applications
● Consumer electronics
● Office automation equipment
● LED lighting systems
● Industrial control devices
● Communication equipment
● Automotive electronic modules
