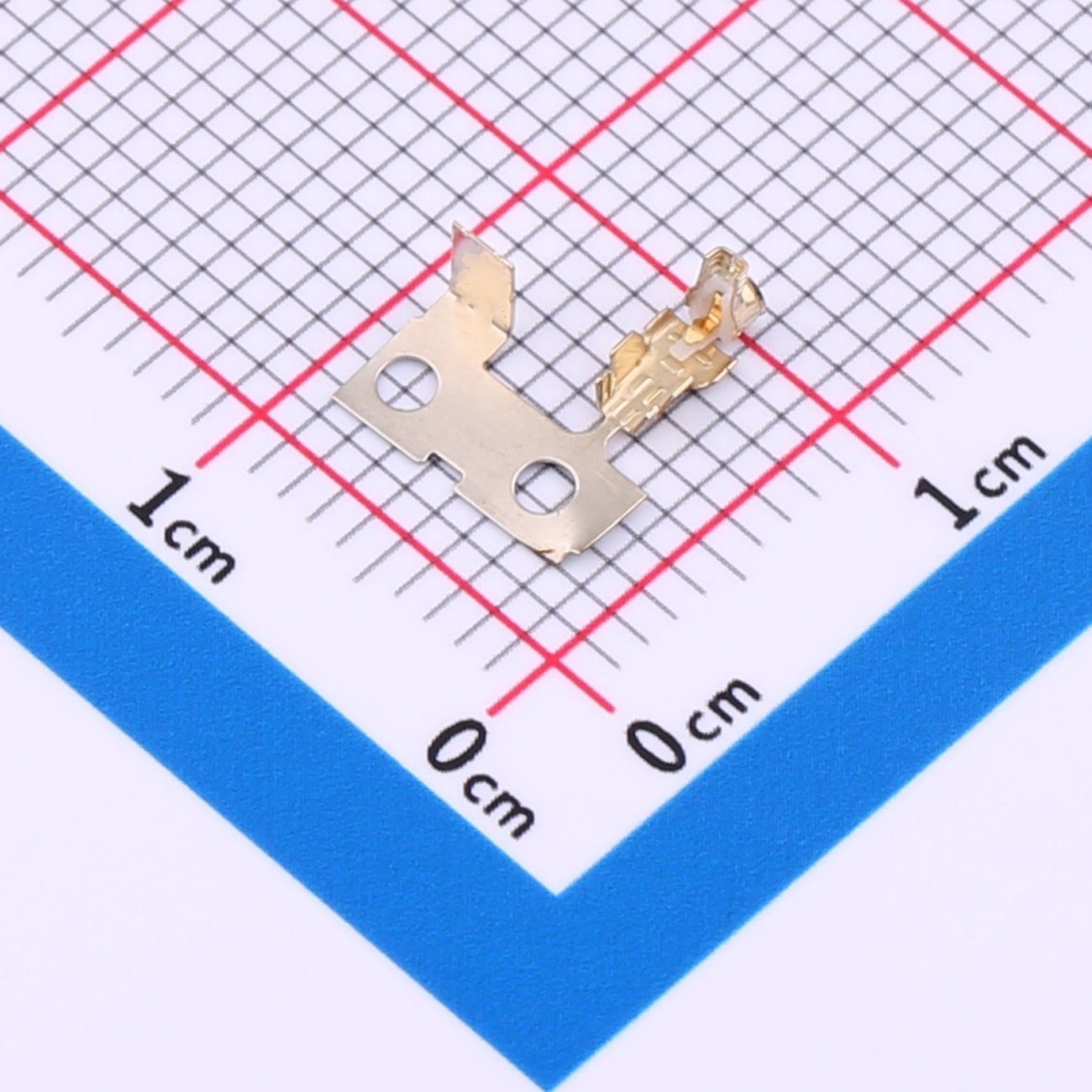

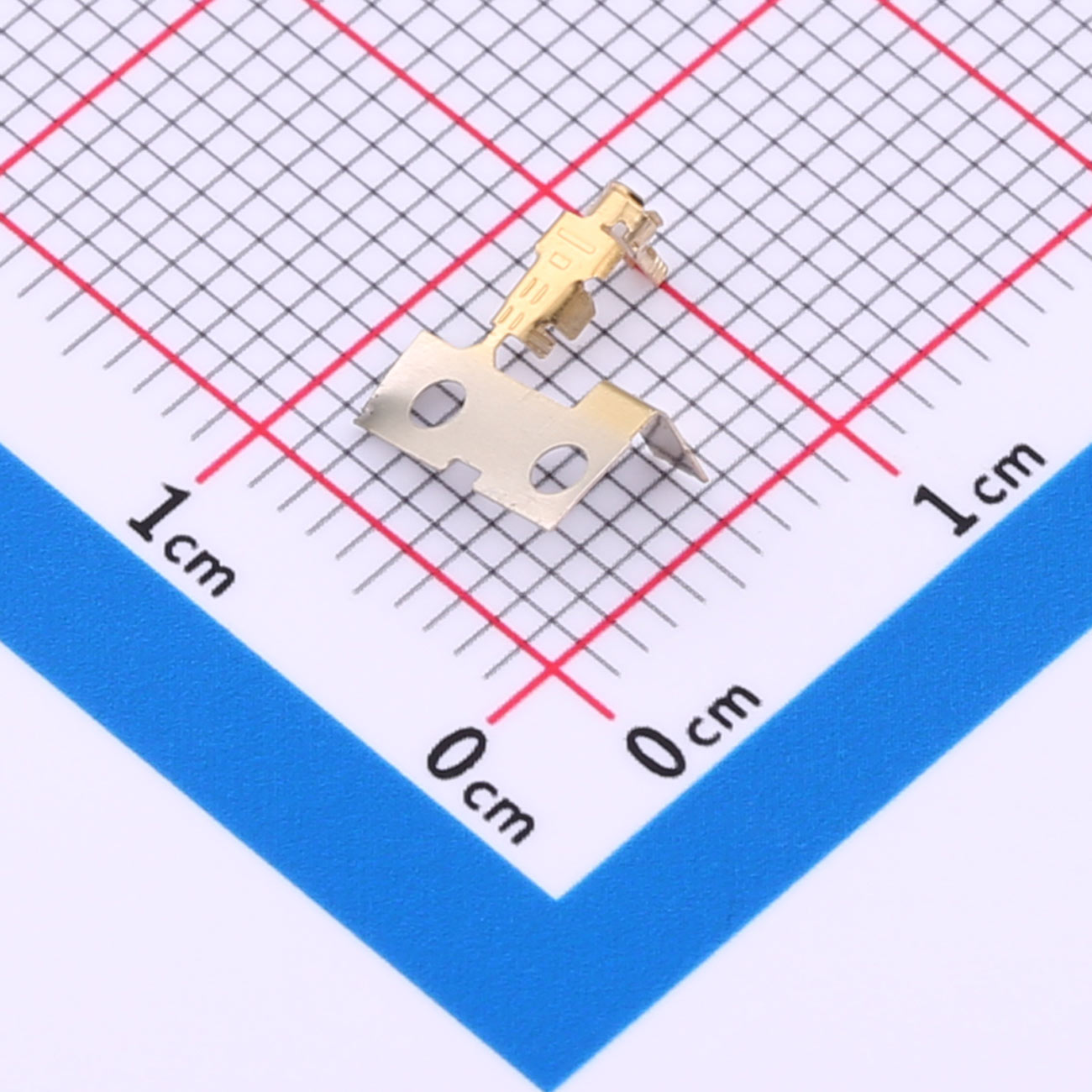

High-Performance IPEX Connector | Thermoplastic, Gold-Plated Copper Alloy | Reliable & Durable
Discover our high-performance connector featuring a thermoplastic plastic housing (UL 94V-0), gold-plated copper alloy contacts, and a durable copper alloy shell with gold or nickel plating. With low contact resistance (20mΩ max), high insulation resistance (500MΩ min), and the ability to withstand 200V AC, this connector ensures reliable and efficient electrical connections. Designed for long-term use with at least 30 mating cycles, it is ideal for demanding applications requiring safety and performance.
Contact Resistance: 20mΩ Max
Dielectric Withstanding Voltage: 200V AC for 1 Minute
Insulation Resistance: 500MΩ Min
Durability: 30 Times Min
Product Features
●Flame-resistant and durable, meeting safety standards for electronic components
●Ensures excellent conductivity and protection against corrosion, enhancing performance and longevity
●Provides robust shielding and durability, with options for gold or nickel plating to suit different applications
●Low resistance for efficient signal transmission and reduced energy loss
●Reliable performance in high-voltage conditions, ensuring safety and preventing electrical failures
●High insulation resistance to prevent signal leakage and maintain signal integrity
●Capable of withstanding at least 30 mating cycles, ensuring long-term reliability and performance
Product Benefits
●Enhanced Safety
●Superior Conductivity
●Increased Durability
●Reliable Electrical Performance
●Versatile Application
●Long-Term Use
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
