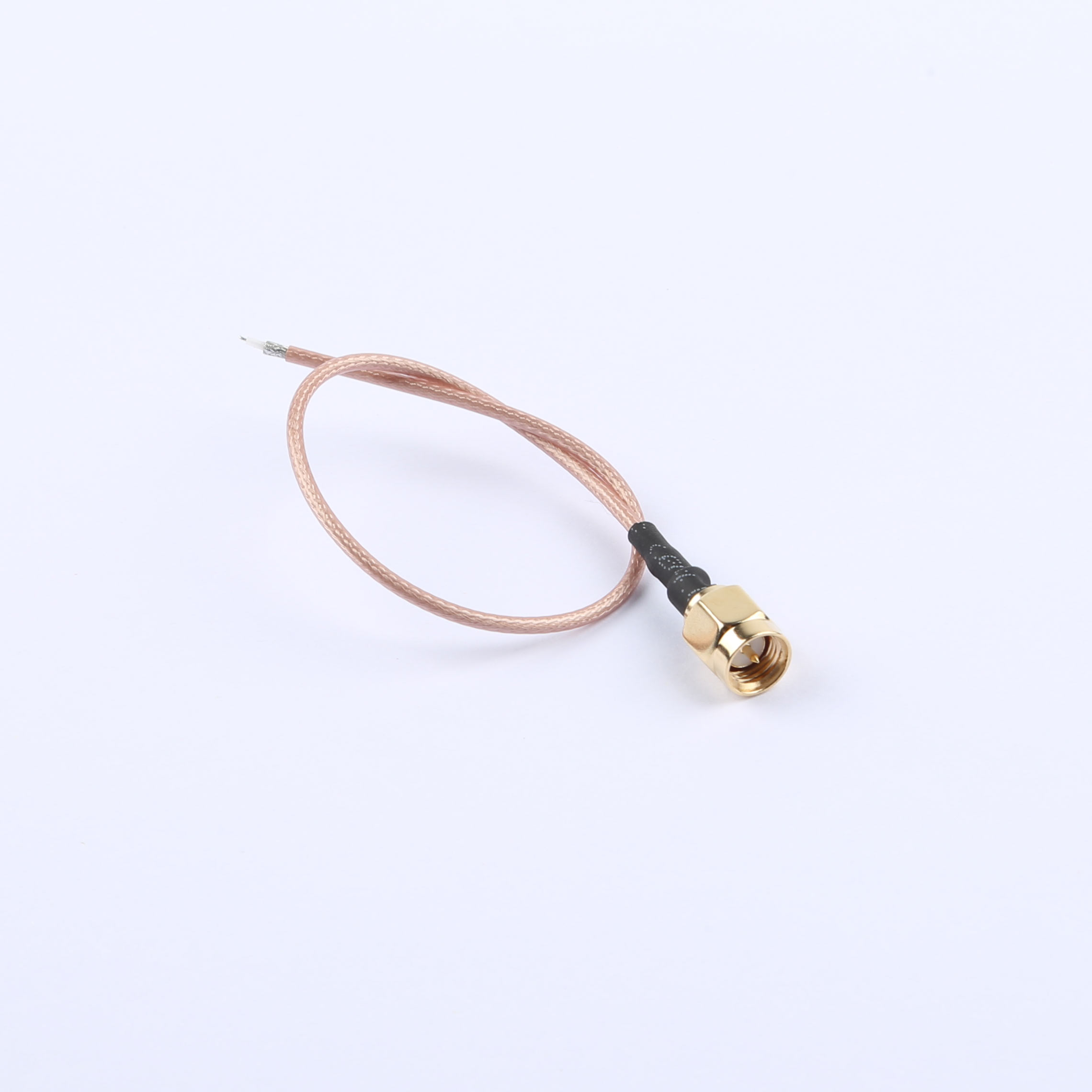

SMA Male Plug To SMA Male Plug, RG1.78 Cable,180mm,KH-SMAJ-221-RG1.78-180

Product Description:Electrical Specifications:●Voltage Rating: The cable is rated for DC 300V with a

Brand: Kinghelm

Model: KH-SMAJ-221-RG1.78-180

Gross Weight: 4.59 grams

Package: Bag packaging

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

Electrical Specifications:

●Voltage Rating: The cable is rated for DC 300V with a tolerance for durations of up to 10 milliseconds, making it suitable for applications requiring short-term high-voltage resistance.

●Conductance Resistance: The cable has a maximum conductance resistance of 3.0 ohms per meter, ensuring efficient electrical conductivity and minimizing power loss.

●Insulation Resistance: With a minimum insulation resistance of 5.0 megaohms per meter, the cable provides reliable performance and protection against electrical leakage.

●Quality Assurance: Each cable undergoes a 100% electrical test to ensure its functionality and integrity, meeting quality standards.

●Reliability: The cable is designed to be free from any open/short circuits, miswiring, and intermittent failures, ensuring a stable and secure electrical connection.

Material Specifications:

●Composition: Please refer to the provided table for detailed information on the materials used in the construction of the cable.

Compliance:

●RoHS Compliance: All components within the cable are compliant with RoHS regulations, reflecting a commitment to environmental sustainability and safety standards.
