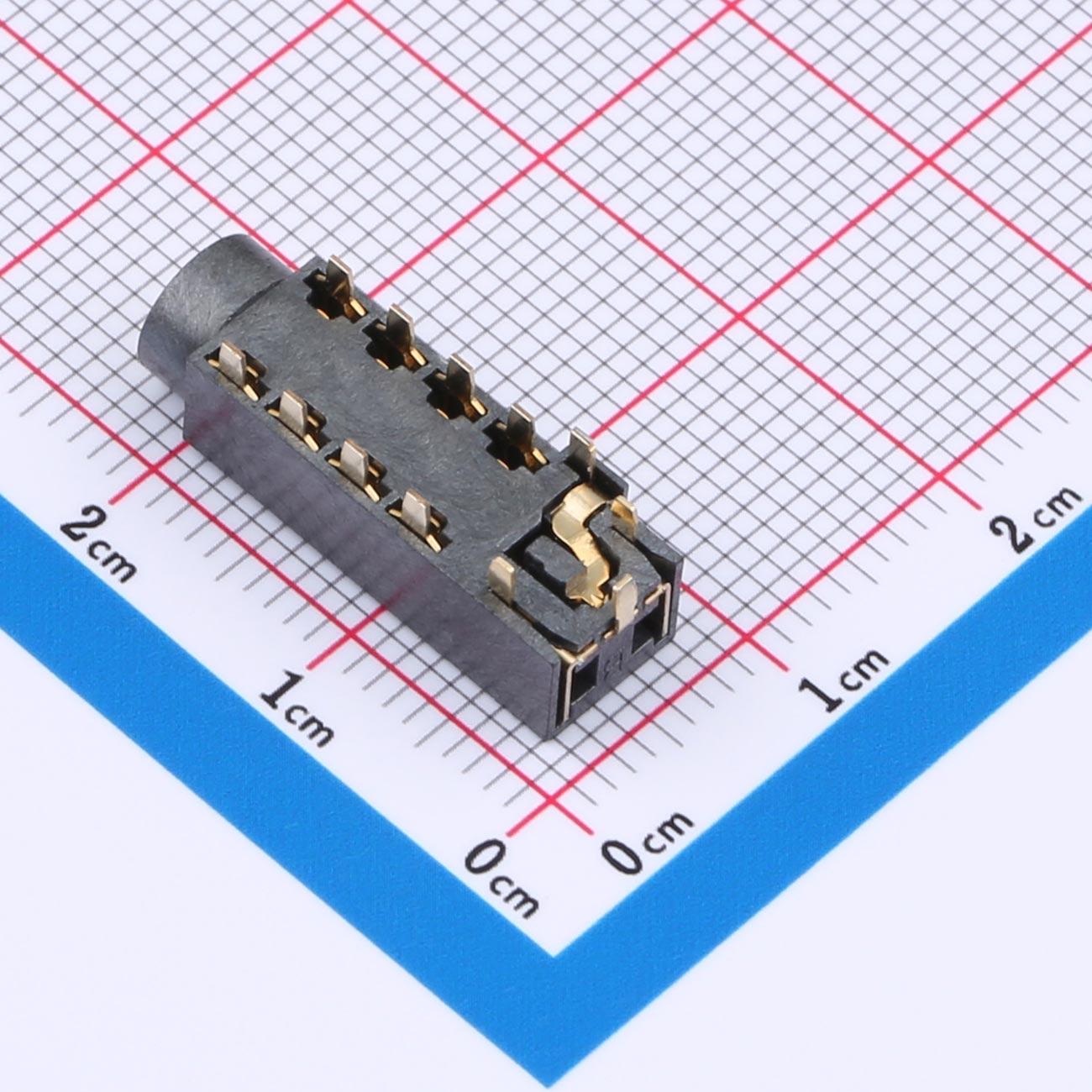

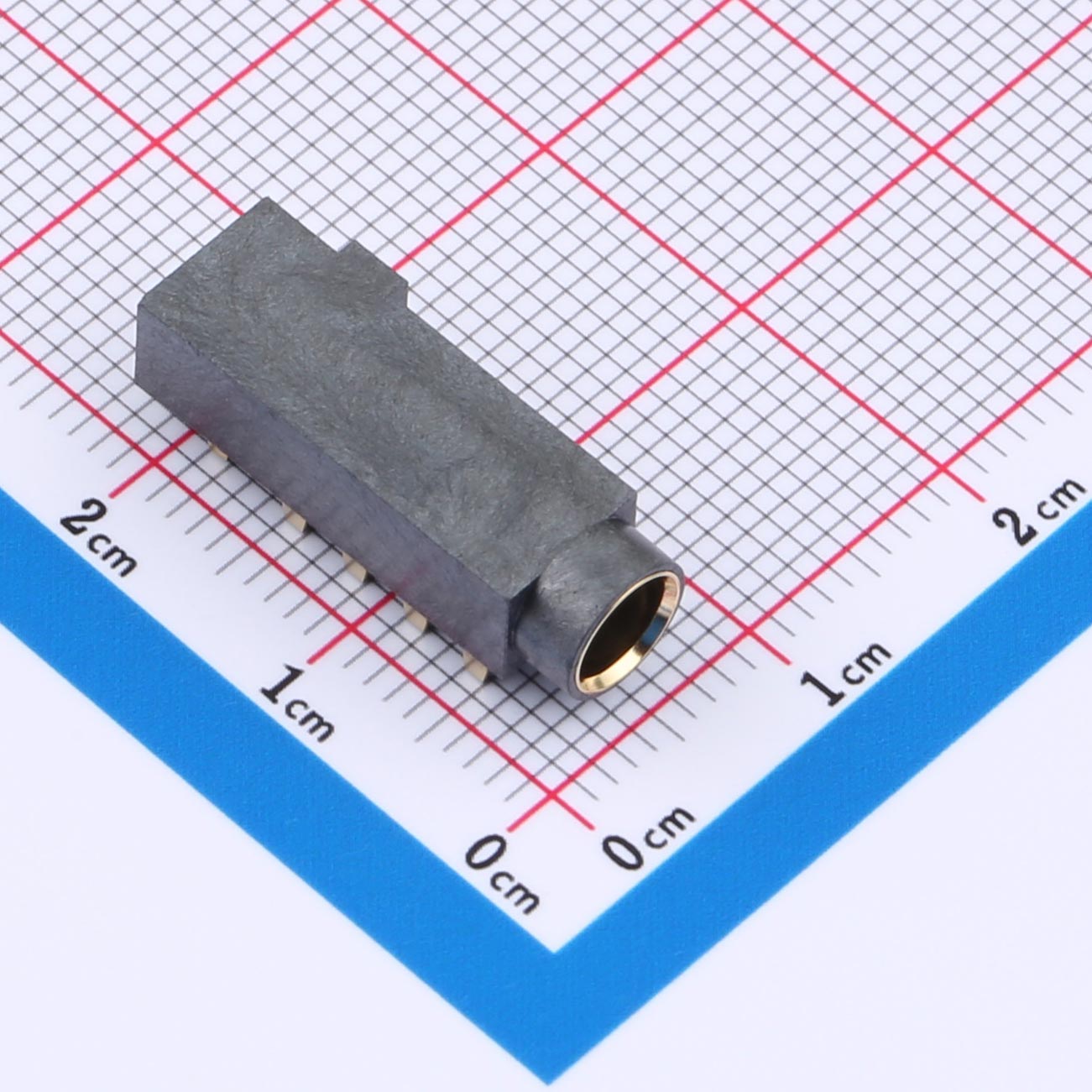

Audio Jack Connector (headphone), 4.4mm, KH-PJ-44002-12DBAP-A

English

Home Product Categories Data Signal Connectors Audio & Video Connectors Audio Socket

Show 3D Model

Current Rating: 12V&1A max.

Contact Resistance: 50mOhms Max.(intial)

Switch Resistance: 100mOhms Max.(intial)

Insulation Resistance: 100M Ohms Min./500V DC

Dielectric Withstanding Voltoge: 500V AC/1Minute

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● 4.4mm audio jack connector for headphones

● 12V & 1A maximum current/voltage rating

● Low contact resistance: 50mΩ max. (initial)

● Low switch resistance: 100mΩ max. (initial)

Product Benefits

● High-power compatibility for professional audio systems

● Minimal signal loss and stable connectivity

● Reliable switching performance for multi-function devices

● Enhanced safety with superior electrical isolation

● Durable design for long-term use in demanding environments

Product Applications

● High-end headphones and earphones

● Portable audio players and DACs

● Professional mixing consoles and amplifiers

● Gaming headsets and VR devices

● Automotive infotainment systems

● Broadcast and stage audio equipment
