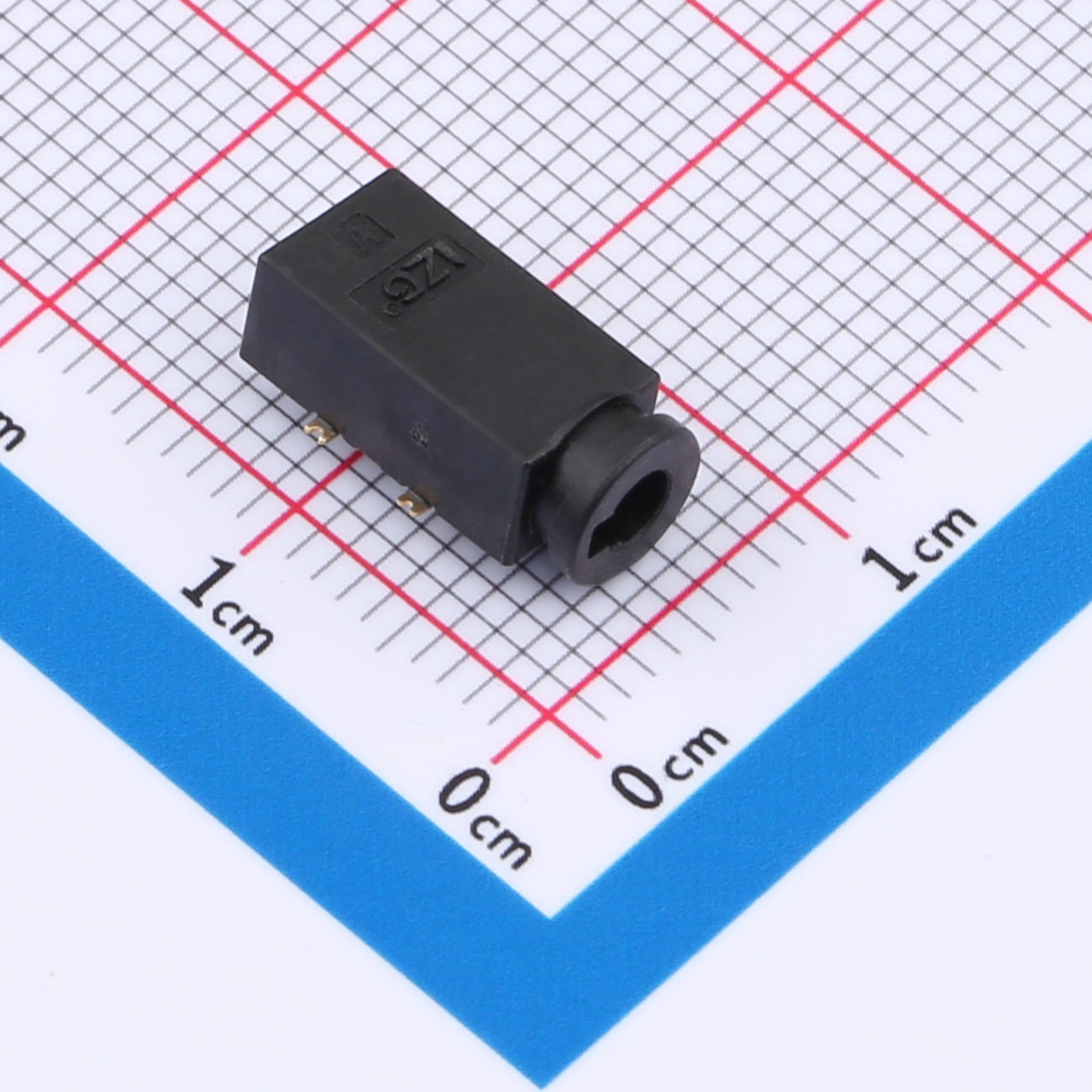

Audio Jack Connector (headphone), 2.5mm, 5PIN, L=12.6mm, KH-PJ-20001-05SBAP-A

CURRENT RATING: 1A

CONTACT RESISTANCE: 100mΩ MAX.

INSULATION RESISTANCE: 100MΩ MIN.

DIELECTRIC WITHSTANDING: 500V AC MIN.

DURABILITY: 5000 CYCLES MIN.

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits

● Clear audio transmission

● Compact design

● Long-lasting performance

● Secure connections

● Easy integration

Product Application

● Headphones and earphones

● Mobile devices

● Audio equipment

● Communication devices

● Wearable technology

Name

Title

Description

KH-PJ-20001-05SBAP-A.PDF

Datasheet

Support

Support

If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity

The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
