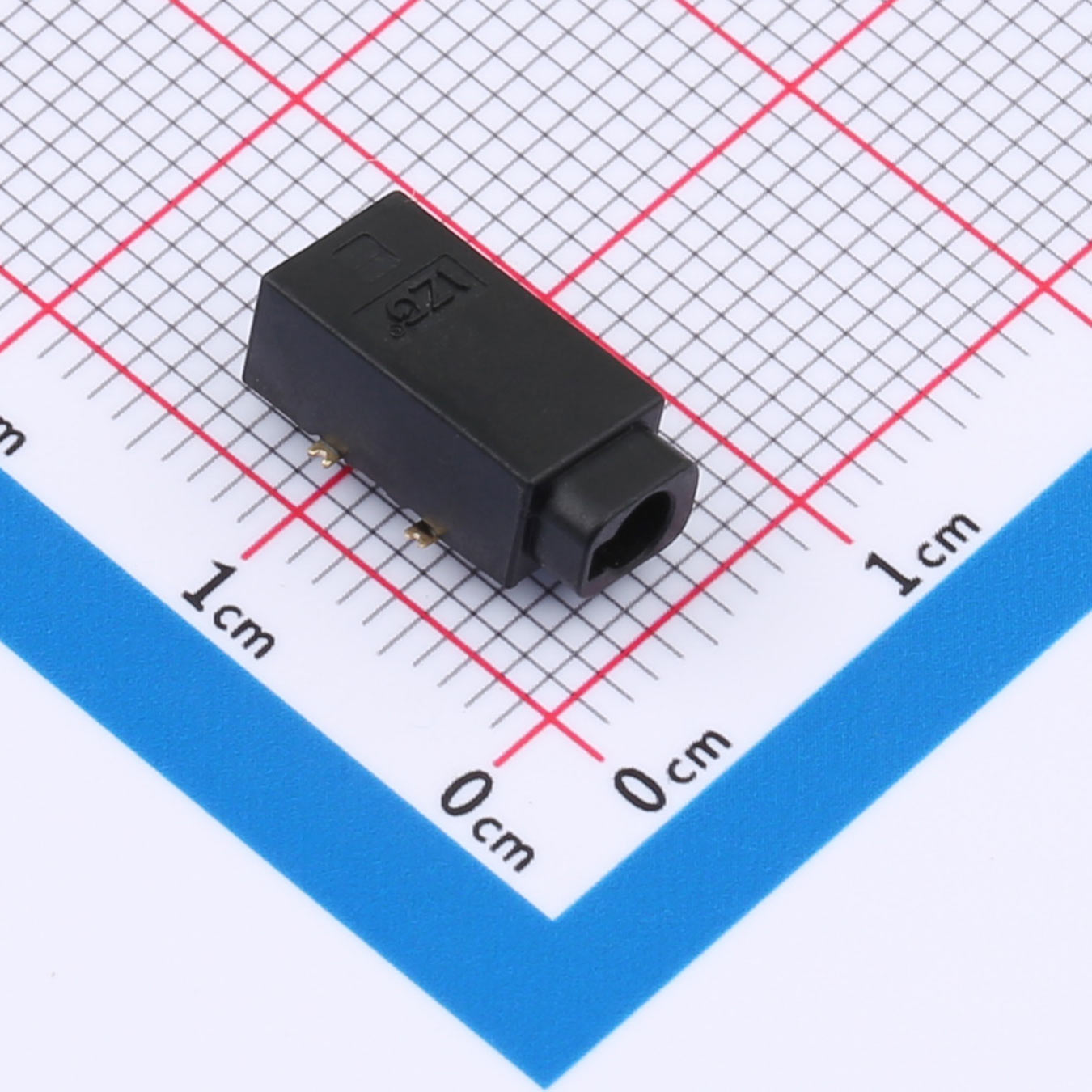

Audio Jack Connector (headphone), 2.5mm, 5PIN, L=12.6mm, KH-PJ-20003-05SBAP-A

CURRENT RATING: 1A

CONTACT RESISTANCE: 100mΩ MAX.

INSULATION RESISTANCE: 100MΩ MIN.

DIELECTRIC WITHSTANDING: 500V AC MIN.

DURABILITY: 5000 CYCLES MIN.

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits

● Ensures clear audio signal transmission

● Space-saving design for compact devices

● Long-lasting performance due to durable construction

● Secure connections minimize signal loss

● Facilitates easy integration into various audio applications

Product Application

● Consumer electronics (headphones, earphones)

● Mobile devices (smartphones, tablets)

● Audio equipment (mixers, amplifiers)

● Communication devices (two-way radios, headsets)

● Wearable technology (smartwatches, fitness trackers)

Name

Title

Description

KH-PJ-20003-05SBAP-A.PDF

Datasheet
