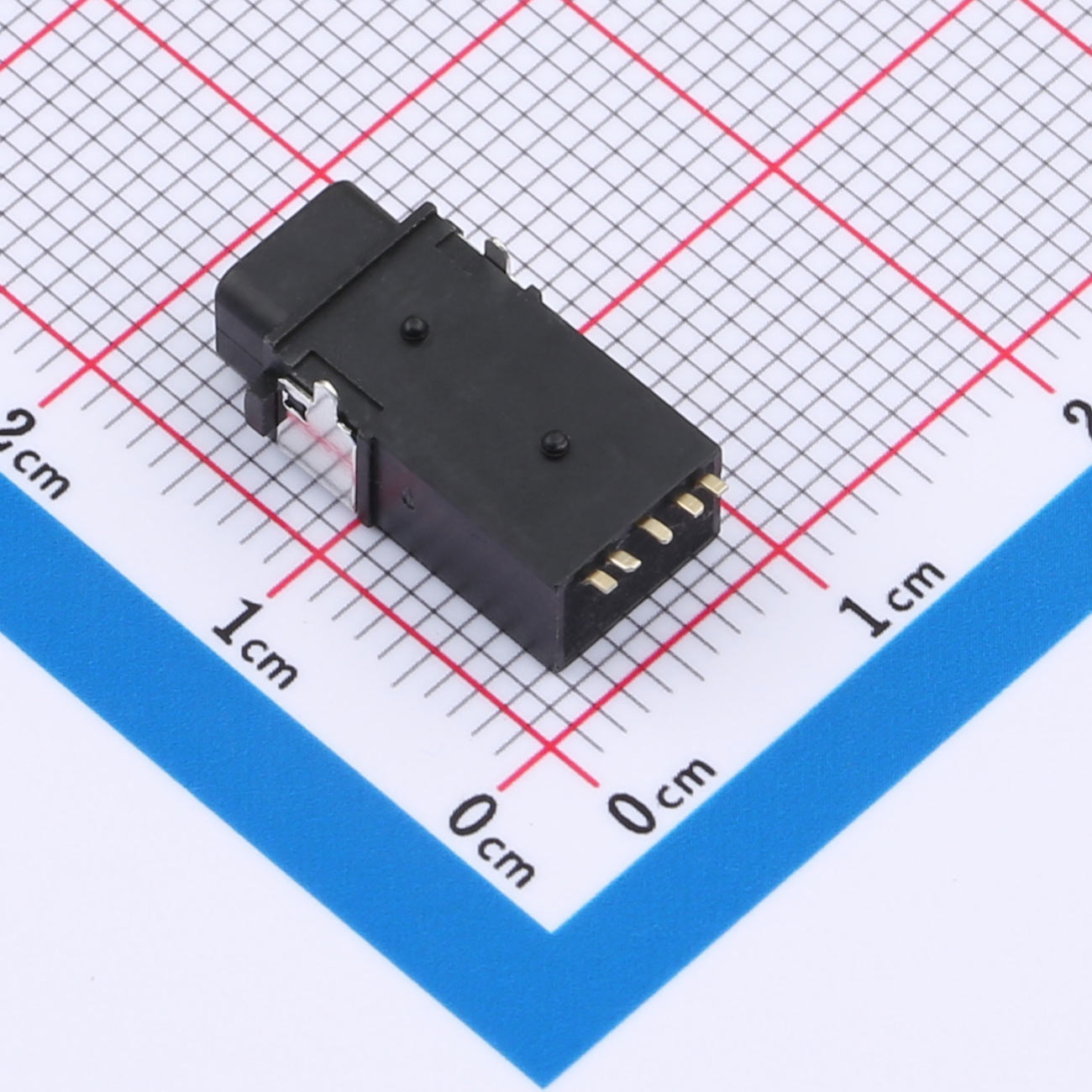

Audio Jack Connector (headphone), 3.5mm, 6PIN, L=15.5mm, KH-PJ-23002-06SBAP-A

CURRENT RATING:DC 0.5A MAX.

CONTACT RESISTANCE: 50mΩ MAX.

INSULATION RESISTANCE: 100MΩ MIN.

DIELECTRIC WITHSTANDING: 500V AC MIN.

DURABILITY: 5000 CYCLES MIN.

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits

● Provides clear and stable audio signal transmission

● Compact size saves space in device design

● Strong durability ensures long-term performance

● Secure connection prevents signal loss or interference

● Easy integration into various audio circuits

Product Application

● Consumer electronics (headphones, speakers, MP3 players)

● Mobile devices (smartphones, tablets)

● Audio and multimedia equipment

● Communication devices (walkie-talkies, intercoms)

● Automotive and industrial audio systems

Name

Title

Description

KH-PJ-23002-06SBAP-A.PDF

Datasheet
