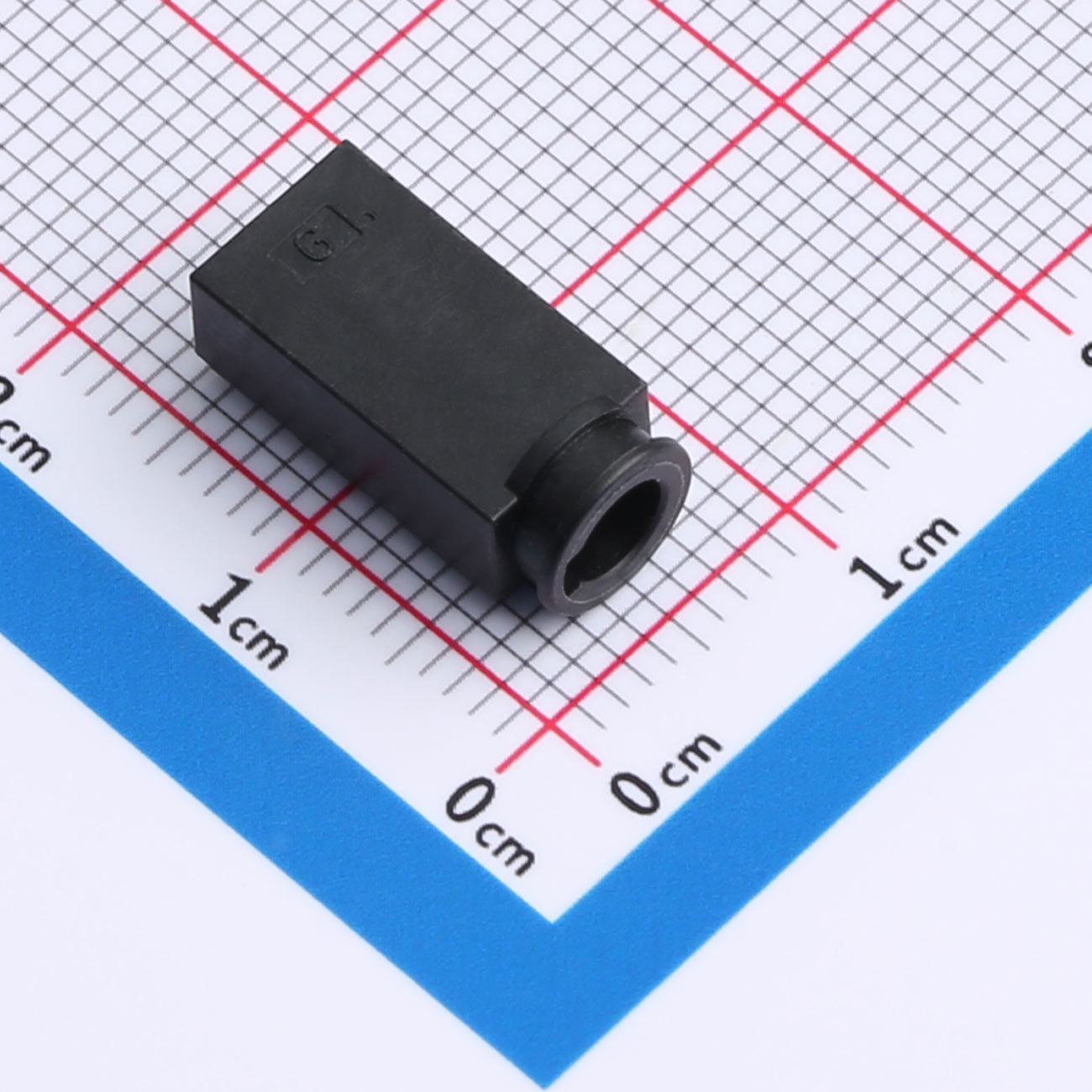

Audio Jack Connector (headphone), 3.5mm, 5PIN, L=14.6mm, KH-PJ-23004-05DBAP-A

Audio Jack Connector (headphone), 3.5mm, 5PIN, L=14.6mm, KH-PJ-23004-05DBAP-A

CURRENT RATING: 1A

CONTACT RESISTANCE: 100mΩ MAX.

INSULATION RESISTANCE: 100MΩ MIN.

DIELECTRIC WITHSTANDING: 500V AC MIN.

DURABILITY: 5000 CYCLES MIN.

Download Datasheet Online Consultation

Product Benefits

● Clear and stable audio output

● Space-saving and easy to integrate

● Secure and reliable connection

● Long-lasting performance


Product Applications

● Headphones and audio devices

● Consumer electronics

● Communication equipment

● Automotive audio systems

● Industrial and medical devices

Name
Title
Description
KH-PJ-23004-05DBAP-A.PDF
-
Datasheet
Support

Support



If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity



The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
