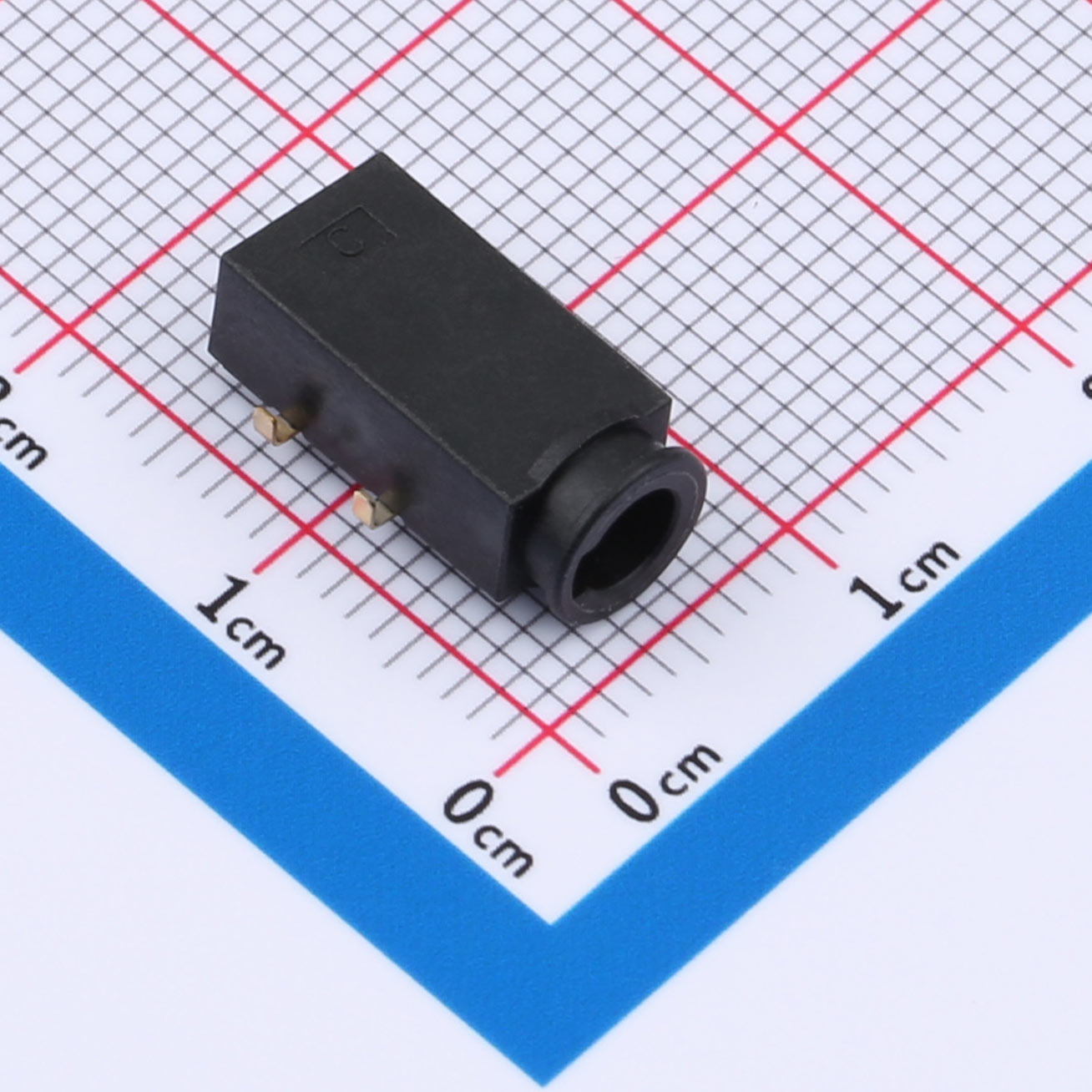

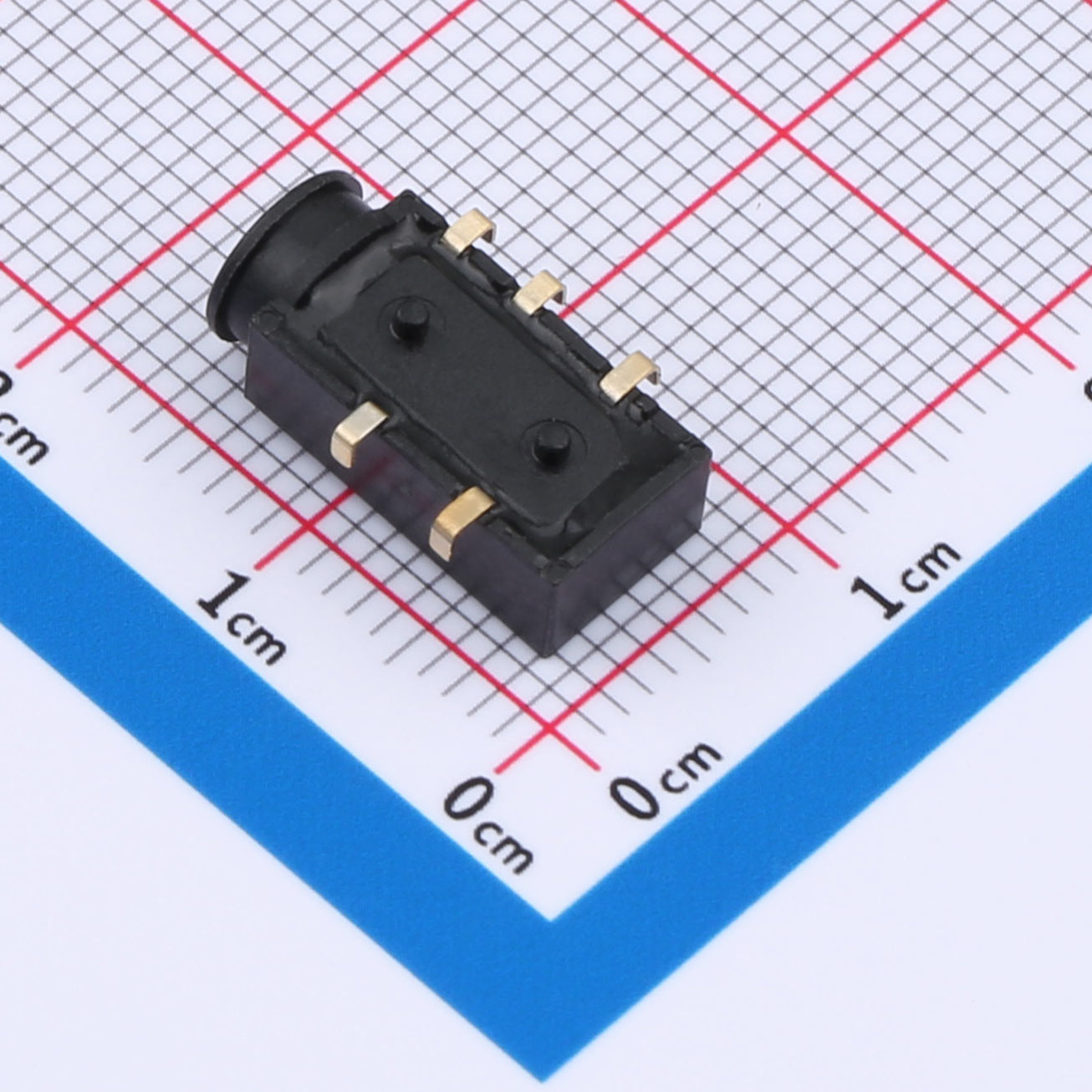

Audio Jack Connector (headphone), 3.5mm, 5PIN, L=14.6mm, KH-PJ-23006-05DBAP-A

English

Home Product Categories Data Signal Connectors Audio & Video Connectors Audio Socket

Show 3D Model

CURRENT RATING: 1A

CONTACT RESISTANCE: 100mΩ MAX.

INSULATION RESISTANCE: 100MΩ MIN.

DIELECTRIC WITHSTANDING: 500V AC MIN.

DURABILITY: 5000 CYCLES MIN.

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits

● Ensures clear and stable audio transmission

● Allows for advanced audio functions like microphone input (due to 5PIN)

● Space - saving design suitable for portable devices

● Durable construction, resistant to wear and tear

● Easy to install, reducing assembly time

● Compatible with a wide range of audio sources

Product Applications

● Headphone manufacturing

● Mobile phone audio interfaces

● Tablets and laptops for audio connectivity

● Gaming headsets for immersive audio experience

● Portable music players

● Audio mixing consoles for input/output connections

● DIY audio projects for custom audio setups
