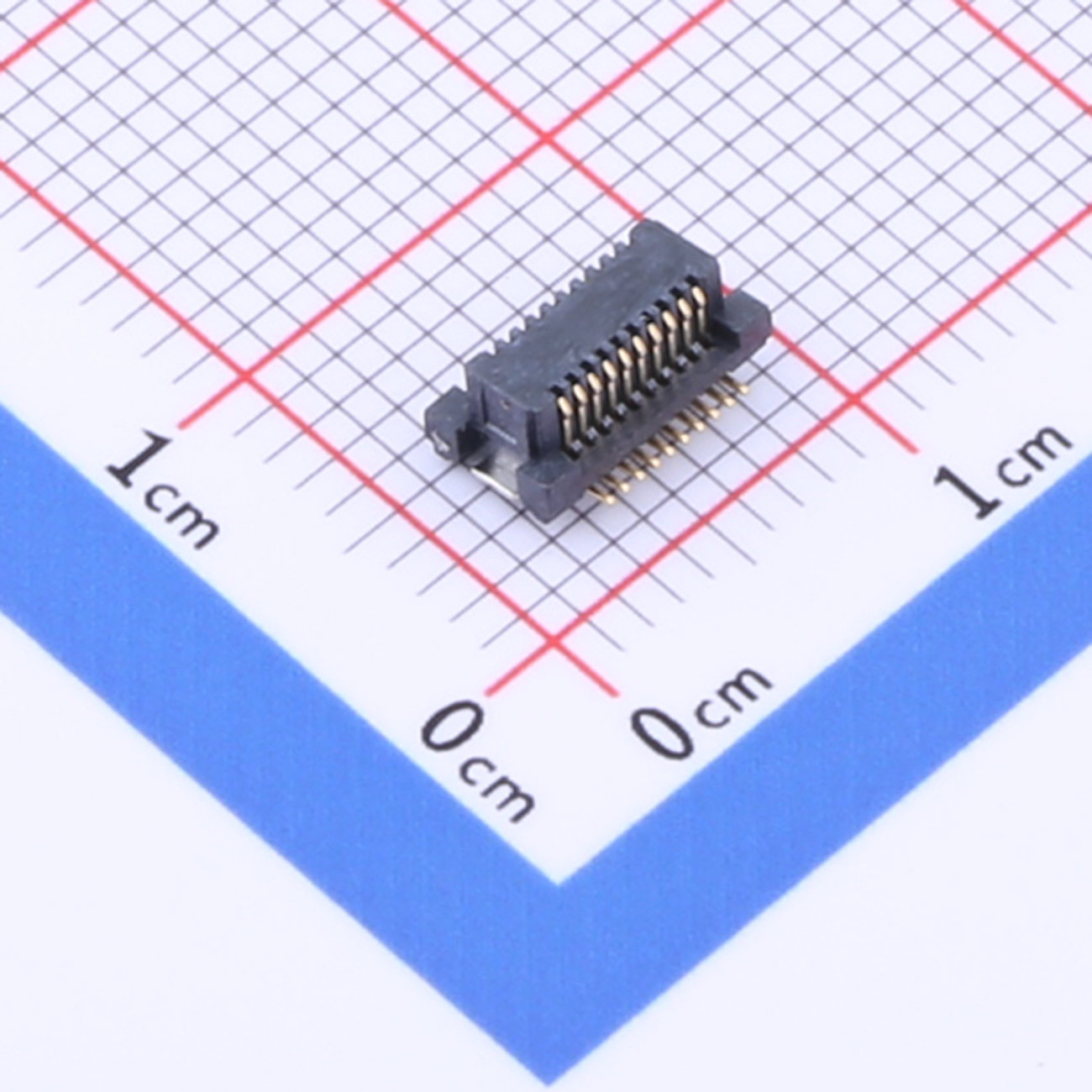

Board-to-Board Connector, 0.5mm Pitch, 20p, Vertical SMT, KH-WB105-F20E-04L
Product Benefits● 0.5mm ultra-fine pitch● 20-pin compact design● Dual-row stable contacts● Vertical
Package: SMD,P=0.5mm
Pitch: 0.5mm
Number of Rows: 2
Number of Pins: 20P
Mounting Type: Vertical welding
Product Benefits
● 0.5mm ultra-fine pitch
● 20-pin compact design
● Dual-row stable contacts
● Vertical SMT for space efficiency
● Reliable signal transmission
● SMD for automated soldering
● Optimized for tight layouts
Product Applications
● Fitness trackers
● Smart eyewear
● Medical sensor modules
● Compact IoT devices
● Portable GPS units
● Micro drones
● Wearable controllers
