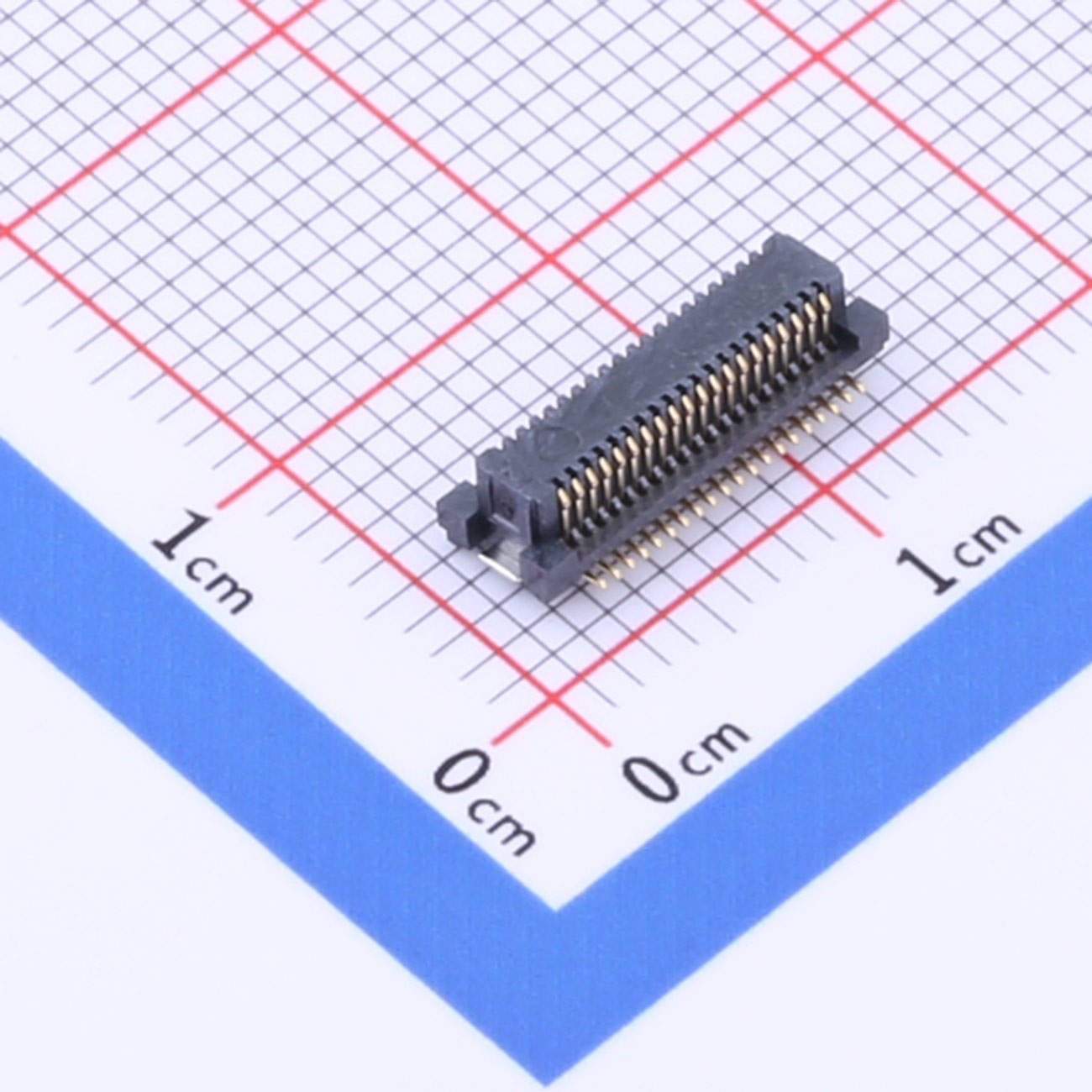

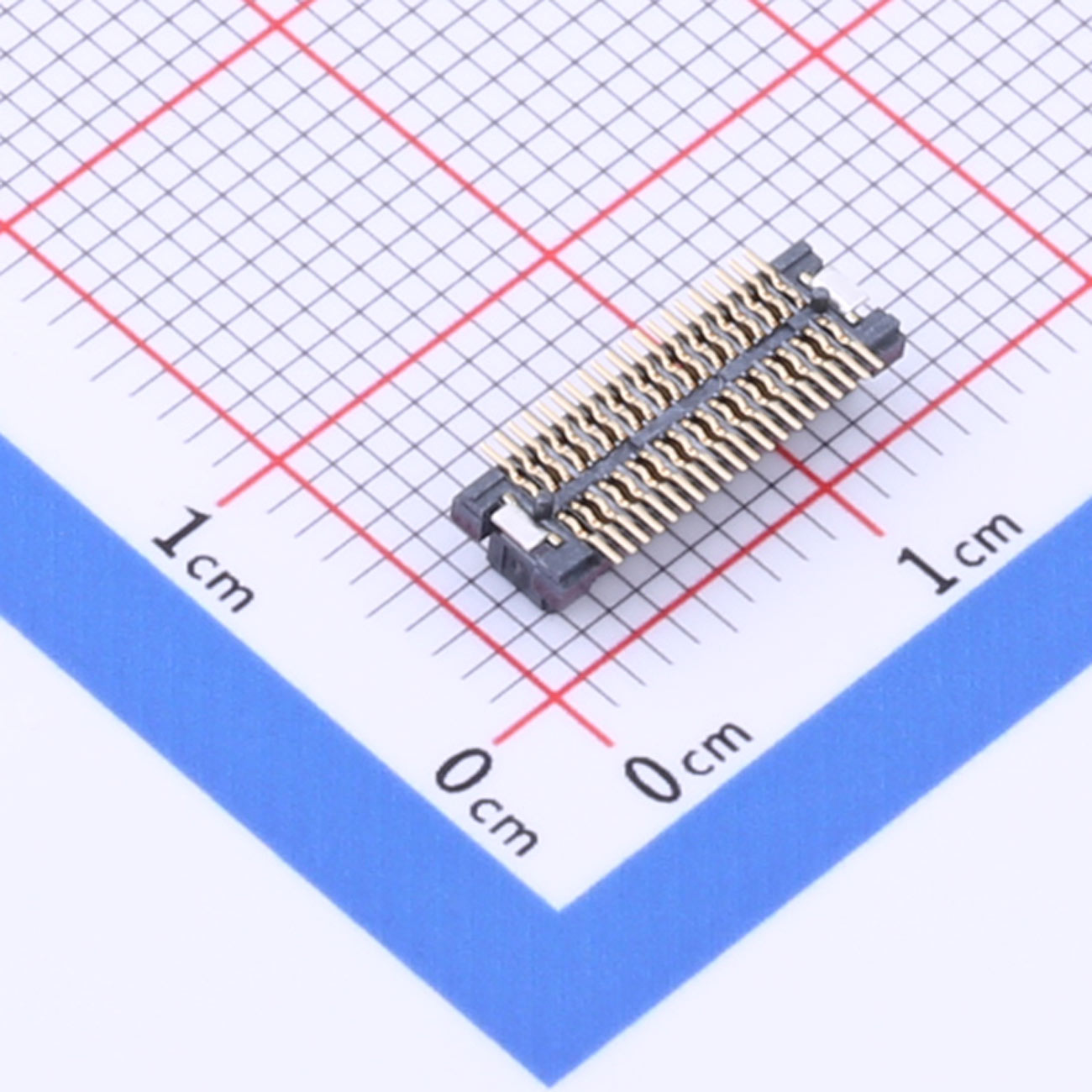

Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB105-F40E-04L

Product Benefits● 0.5mm fine pitch● 40-pin high signal density● Dual-row contact stability● Vertical

Package: SMD,P=0.5mm

Pitch: 0.5mm

Number of Rows: 2

Number of Pins: 40P

Mounting Type: Vertical welding

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Benefits
● 0.5mm fine pitch
● 40-pin high signal density
● Dual-row contact stability
● Vertical SMT design
● Compact and reliable
● Easy for automated assembly
● Saves PCB space

Product Applications
● Smartphones
● AR/VR devices
● Mini industrial controllers
● GPS modules
● Medical monitoring tools
● Ultra-compact PCs
● IoT sensor hubs
