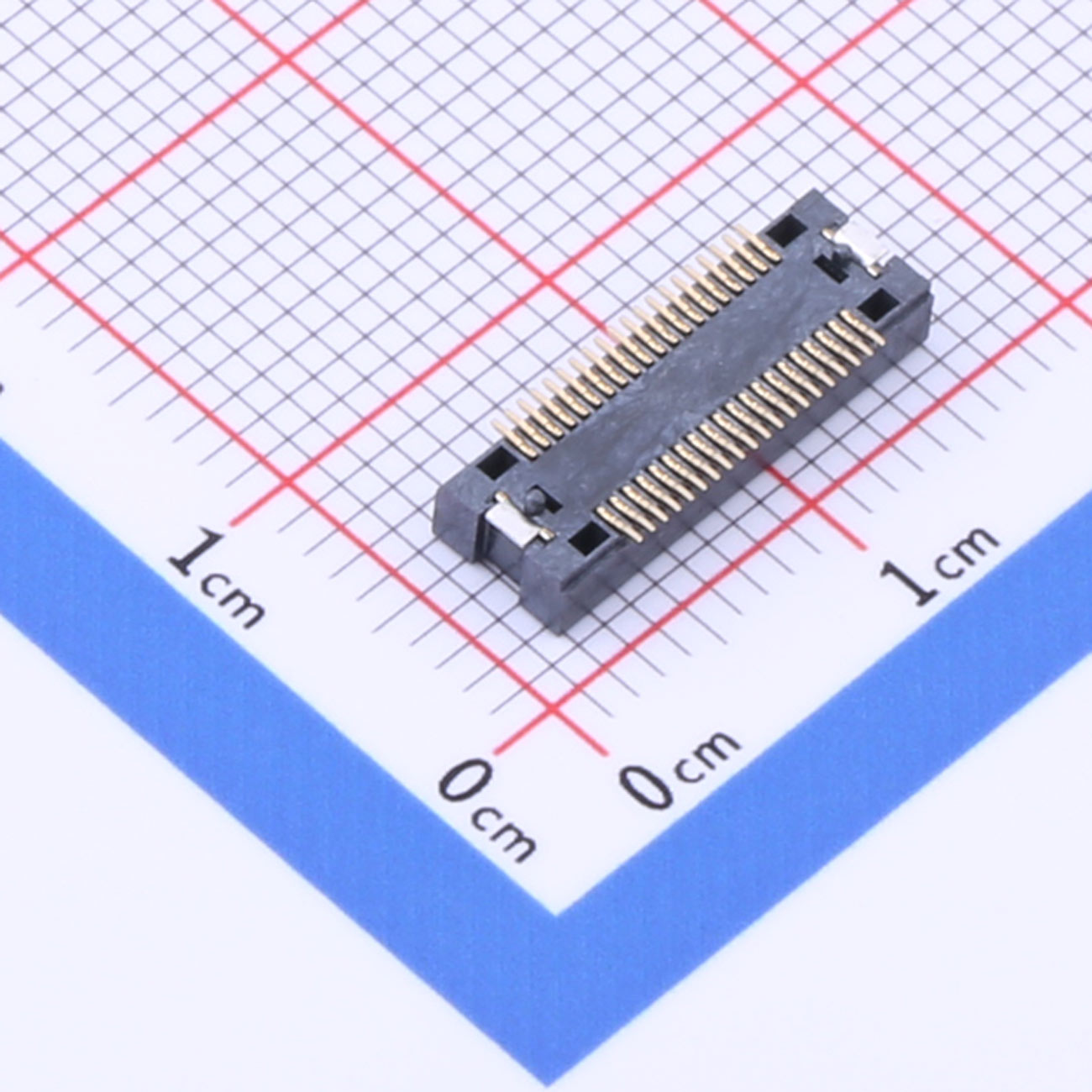

Board-to-Board Connector, 0.5mm Pitch, 40p, Vertical SMT, KH-WB205-F40M-03L
Product Benefits● 0.5mm ultra-fine pitch● 40-pin dense interface● Dual-row stable connection● Vertic
Package: SMD,P=0.5mm
Pitch: 0.5mm
Number of Rows: 2
Number of Pins: 40P
Mounting Type: Vertical welding
Product Benefits
● 0.5mm ultra-fine pitch
● 40-pin dense interface
● Dual-row stable connection
● Vertical SMT mounting
● Compact layout
● SMD for reflow soldering
● Efficient PCB space use
Product Applications
● Compact embedded systems
● High-resolution cameras
● Smart medical devices
● AI modules
● Industrial handhelds
● Thin client terminals
● Wireless communication units
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
